Schaerer 7300 - 10823 Leg Transfer Board

SECTION VI
PARTS LIST

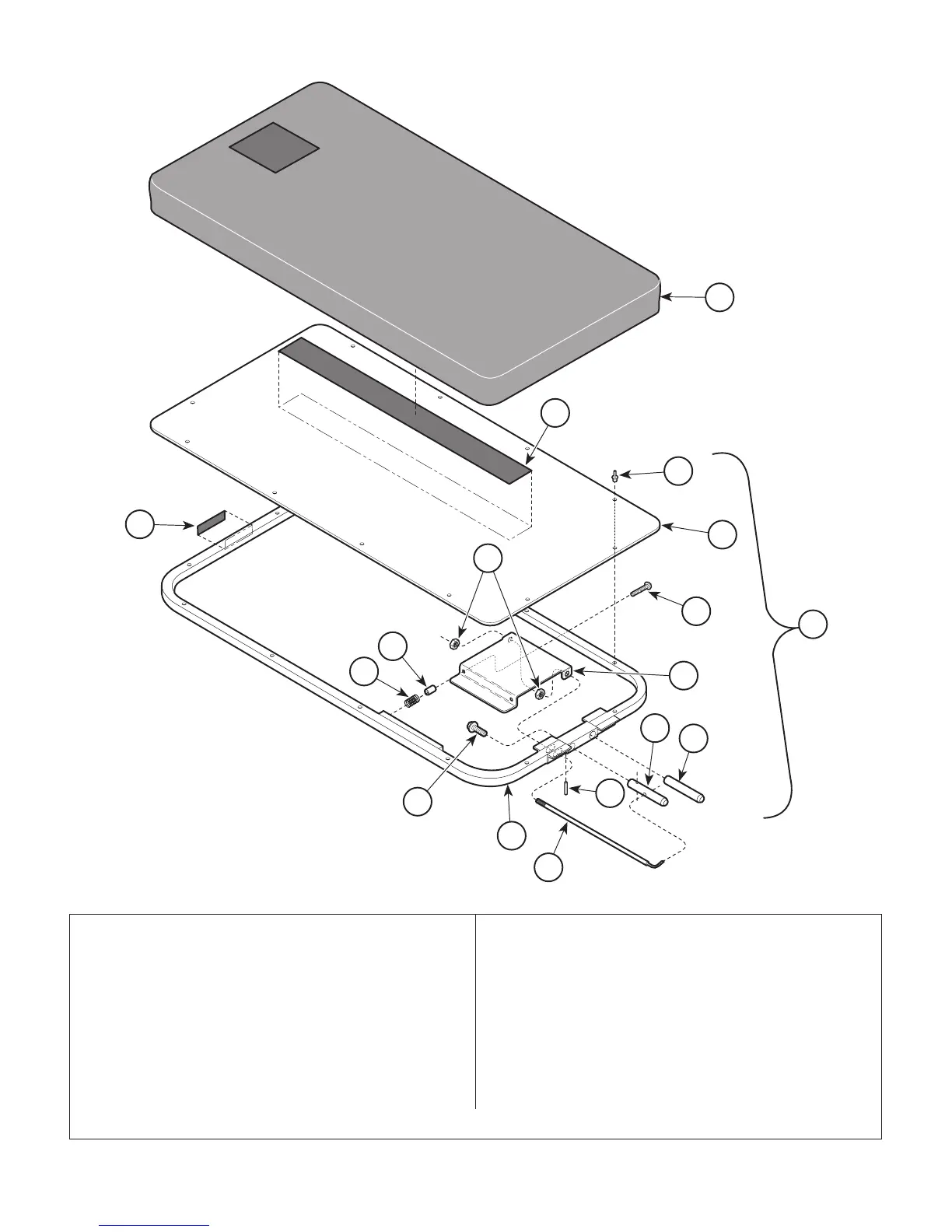

10823 Leg Transfer Board (Includes
Items 1 and 3) ...................................... 1
1 • 528-0128-00 • Leg Transfer Board Cushion
(Includes Items 2) ............................... 1
2 • • 053-0131-04 • • Velcro Hook Tape ............................ 1
3 • 529-0696-00 • Leg Transfer Board Assembly (Includes
Items 4 thru 17) .................................. 1
4 • • 042-0010-22 • • Pop Rivet ....................................... 12
5 • • 553-0471-00 • • Leg Transfer Poly Top .................... 1
6 • • 530-1074-00 • • Latch Rod Weldment ...................... 1
7 • • 530-1067-00 • • Frame Weldment ............................. 1
10823 Leg Transfer Board
Page 6-45Printed in U.S.A.
8 • • 557-0891-00 • • Mounting Pin (w/ Holes) .................. 1
9 • • 557-0891-01 • • Mounting Pin (w/o Holes)................ 1
10 • • 042-0001-09 • • Roll Pin ............................................ 1
11 • • 561-0334-00 • • Weight Limit Label .......................... 1
12 • • 040-0312-24 • • Screw .............................................. 2
13 • • 041-0500-09 • • Nut (Apply Loctite #042-0025-00) ... 1
14 • • 505-735192 • • Screw (Apply Loctite #042-0025-00) 2
15 • • 550-1033-00 • • Handle ............................................. 1
16 • • 016-0149-14 • • Sleeve Bearing................................ 2
17 • • 525-0047-06 • • Compression Spring ....................... 2
CA796000
Item Part No. Description Qty.
Item Part No. Description Qty.
1
3
4
5
6
7
9
10
14
2
11
8
15
12
16
17
13
Always Specify Model & Serial Number
© Schaerer Mayfield USA, Inc. 2004
