SECTION VI
PARTS LIST

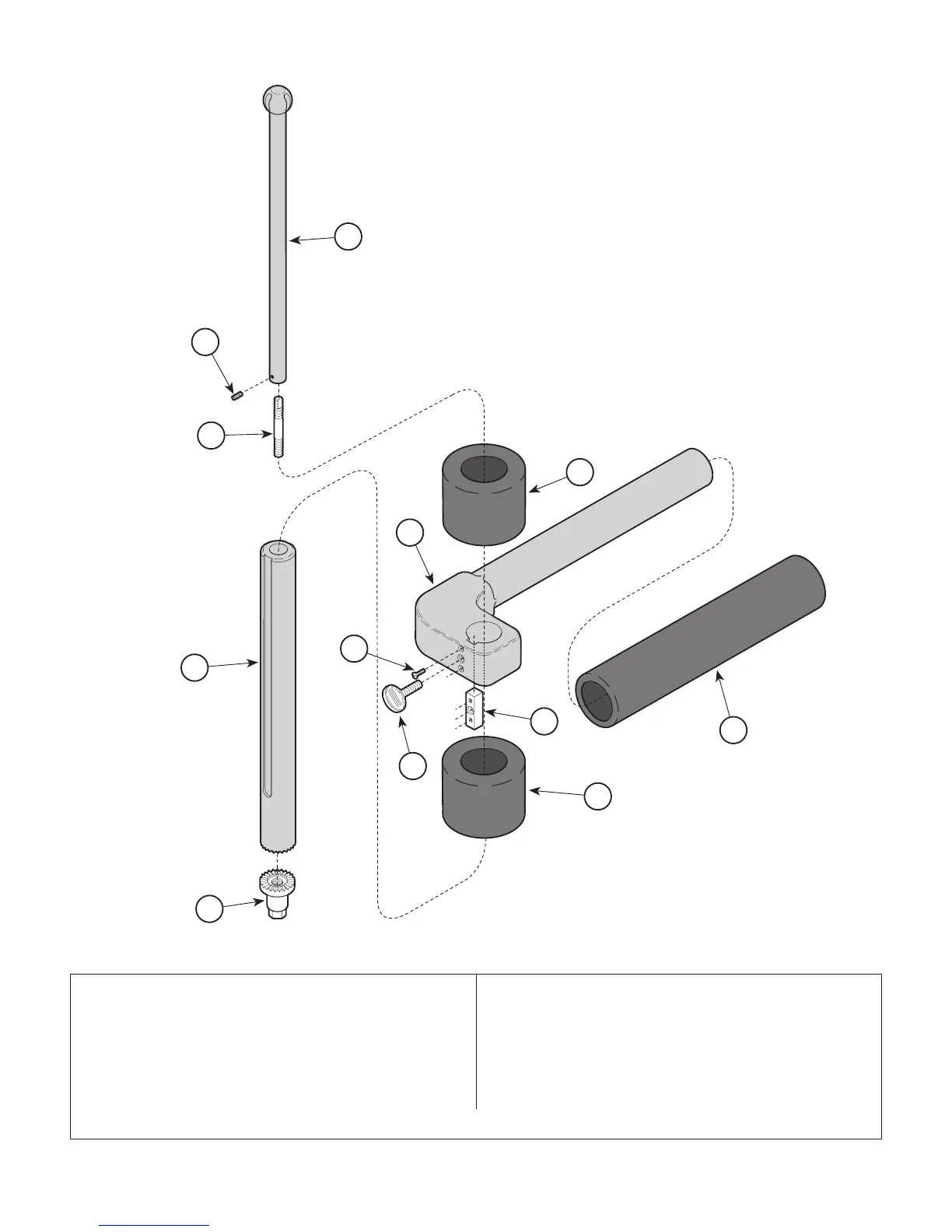

10824 Horizontal Perineal Post Assembly
(Includes Items 1 thru 11) .................... 1
1 • 557-0901-00 • Perineal Post Mount ........................... 1
2 • 553-0468-00 • Ilium Post ............................................ 1
3 • 529-0632-00 • Ilium Support Assembly (Includes
Items 4 and 5) .................................... 1
4 • • 553-0272-00• • Screw ............................................... 2
10824 Horizontal Perineal Post
Page 6-46Printed in U.S.A.
5 • • 800176 • • Key .................................................. 1
6 • 516-0365-01 • Thumb Screw .................................... 1
7 • 557-0890-00 • Perineal Adjustment Shaft .................. 1
8 • 553-0469-00 • Perineal Post Knob ............................ 1
9 • 040-0250-148 • Set Screw .......................................... 1
10 • 8124-010361 • Ilium Post Pad ................................... 2
11 • 505-701559 • Horizontal Perineal Cushion .............. 1
CA796100
Item Part No. Description Qty.
Item Part No. Description Qty.
7
2
3
4
11
5
6
1
10
10
8
9
Always Specify Model & Serial Number
