Schaerer 7300 - Column Cylinder Removal; Installation

SECTION IV
MAINTENANCE / SERVICE
4.20 Column Cylinder
Removal / Installation
A. Removal
(1) Remove four plugs (1, Figure 4-32), four screws
(2), and back section table top (3) from R.H. and
L.H. side weldments (4).
(2) Bend lip of two cover gaskets (5) and remove
four screws (6).
(3) Remove bridge cover (7) and two cover gaskets
(5) from R.H. and L.H. side weld- ments (4).
(4) Lay table onto its side.
(5) Disconnect spring (1, Figure 4-33) from rear
bridge cover (2).
(6) Remove two screws (3) and rear bridge cover
(2) from L.H. and R.H. side weldments (4).
Page 4-31Printed in U.S.A.
(7) Cut two cable ties securing hoses to cable tie
anchors (5).
(8) Cut cable ties securing hoses together.
NOTE
Propping table top up slightly will prevent oil from
running out of top of column cylinder.

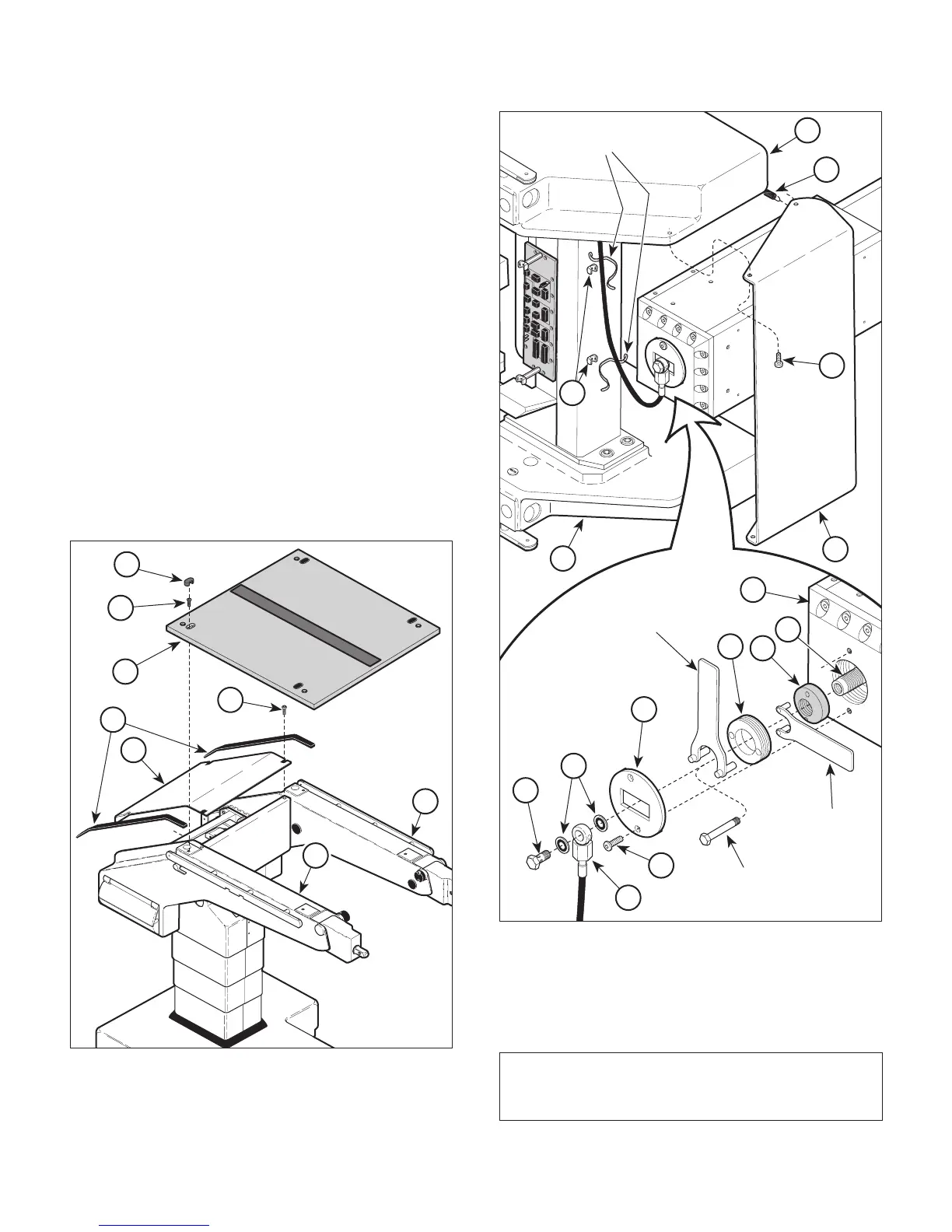

Figure 4-32. Covers Removal / Installation
CA7666
CABLE
TIE
3
1
2
4
4
9
SPANNER
WRENCH
(MO7236)
SPANNER
WRENCH
(MO7235)
6
8
10
7
1
1
13
14
12
RETAINING
BOLT
(MO7407)
5
CA7666
Figure 4-33. Locking Nuts Removal / Installation
CA807000
3
1
2
4
5
6
7
4
