Schaerer 7300 - 71071 I.V. Arm Board Assembly

SECTION VI
PARTS LIST
Printed in U.S.A.
Page 6-57

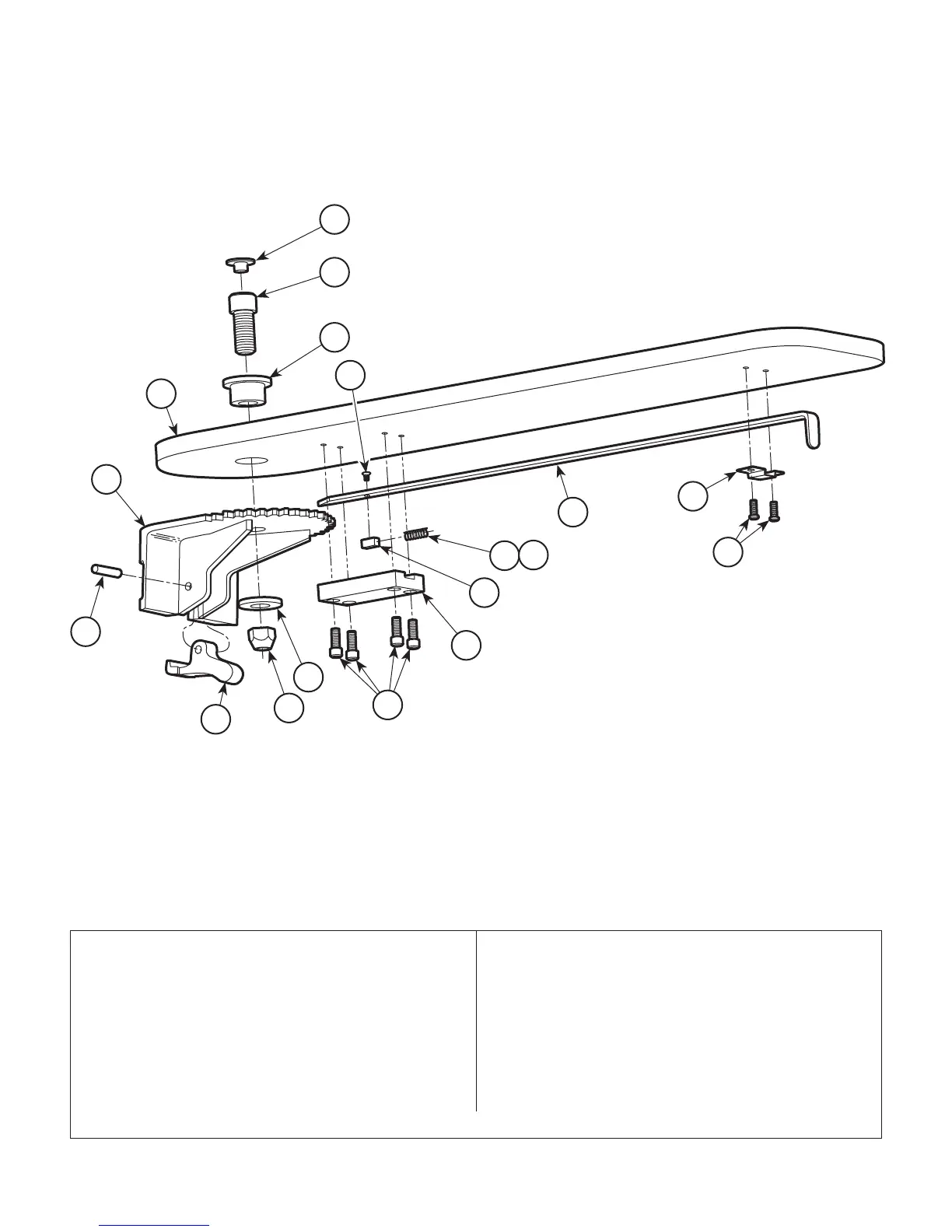

71071 I.V. Arm Board
Assembly
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
71071 I.V. Arm Board Assembly (Includes
Items 1 thru 18) .................................... 1
1 • 555-0025-00 • Arm Board Fabrication ....................... 1
2 • 520-0044-00 • Arm Board Bracket............................. 1
3 • 505-703807 • Spring Pin........................................... 1
4 • 520-0045-00 • Arm Board Latch ................................ 1
5 • 553-0278-00 • Cap Screw Plug ................................. 1
6 • 040-0500-09 • Screw ................................................. 1
7 • 557-0532-00 • Arm Board Bushing ............................ 1
8 • 505-703495 • Washer ............................................... 1
9 • 505-703246 • Nut ...................................................... 1
10 • 505-703068 • Screw ................................................. 1
11 • 550-0568-00 • Arm Board Lock Bar........................... 1
12 • 525-0047-02 • Compression Spring .......................... 1
13 • 550-0666-00 • Locking Bar Spring Block ................... 1
14 • 550-0664-00 • Spring Retaining Block....................... 1
15 • 040-0010-108 • Screw ................................................. 4
16 • 550-0634-00 • Guide Bracket ..................................... 1
17 • 040-0010-74 • Screw ................................................. 2
18 • 064-0001-00 • Petroleum Jelly ................................. AR
