Schaerer 7300 - 22111 Pin and Wire Holder

SECTION VI
PARTS LIST
Page 6-51Printed in U.S.A.
22111 Pin and Wire Holder
Item Part No. Description Qty.Item Part No. Description Qty.

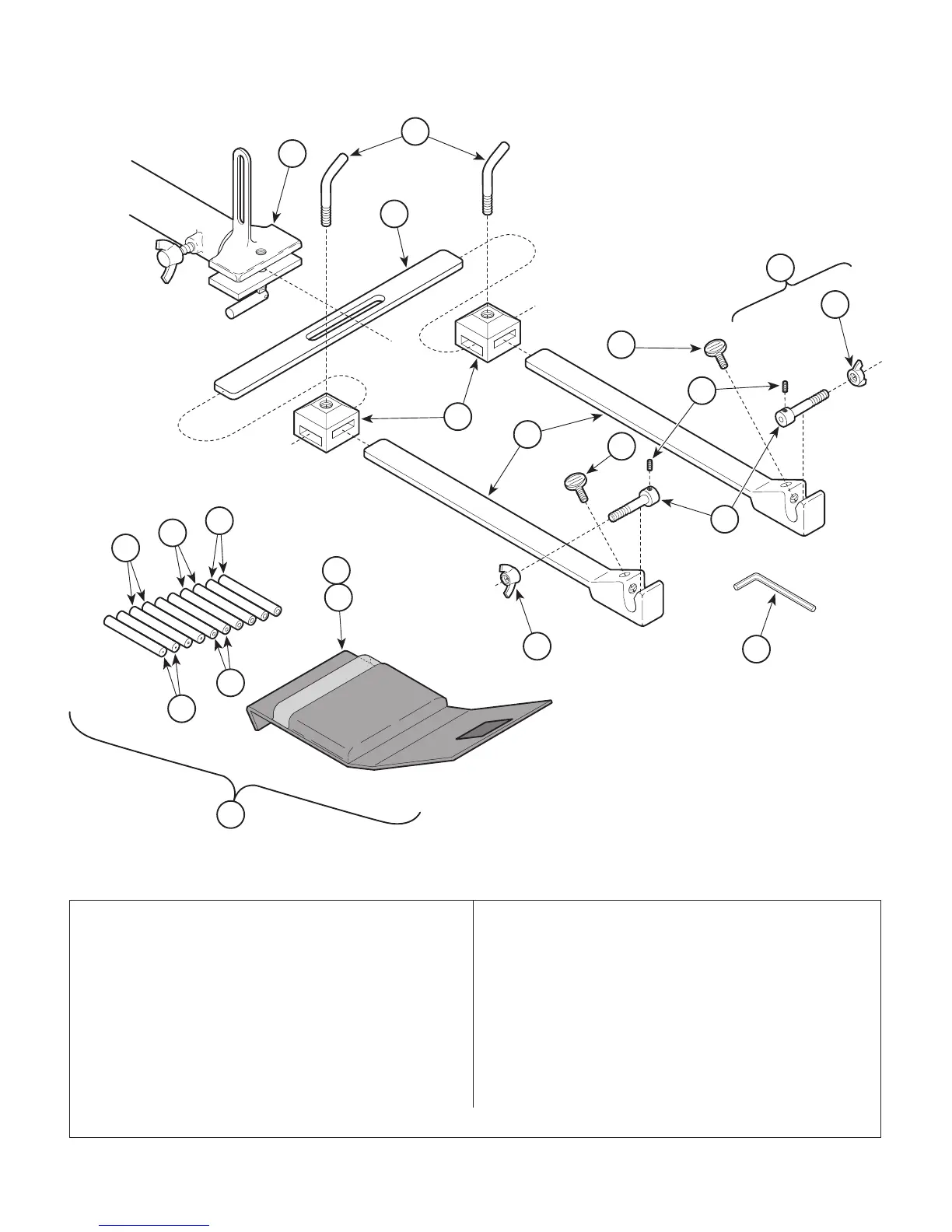

22111 90° Pin and Wire Holder Assembly
(Includes Items 1 thru 13) .................... 1
1 • 515-715070 • Lock Handle ....................................... 2
2 • 551-0599-00 • Spreader Bar...................................... 1
3 • 20122 • Connecting Block ............................... 2
4 • 520-0071-00 • 90° Upright Bracket ............................ 2
5 • 10778 • Ferrule Set (Includes Items
10 thru 16).......................................... 1
6 • • 505-715058 • • Traction Ferrule (.109" [2.75mm]).... 2
7 • • 505-715059 • • Traction Ferrule (.125" [3.20mm]).... 2
8 • • 505-715060 • • Traction Ferrule (.141" [3.50mm]).... 2
9 • • 505-715061 • • Traction Ferrule (.156" [4.00mm]).... 2
10 • • 505-715062 • • Traction Ferrule (.188" [4.75mm]).... 2
11 • •505-715063 • • Case ................................................. 1
12 • • 561-0148-00 • • Ferrule Case Label (Not Shown) .... 1
13 • 505-704960 • Thumb Screw ..................................... 2
14 22108 Wire Tightener Set (Incl. 15 thru 18)
15 • 505-704594 • Set Screw........................................... 2
16 • 515-715099 • Wire Tightener ................................... 2
17 • 505-703138 • Wing Nut ............................................ 2
18 • 505-700044 • Allen Wrench ...................................... 1
19 Traction Assembly (See
Breakdown Elsewhere) ........................ 1
CA708000
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
19
17
13
18
14
1
1
2
2
3
3
4
4
5
5
1
1
2
2
3
3
4
4
5
5
Always Specify Model & Serial Number
© Schaerer Mayfield USA, Inc. 2004
