Schaerer 7300 - 73003 Drain Pan

SECTION VI
PARTS LIST
Page 6-92
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.

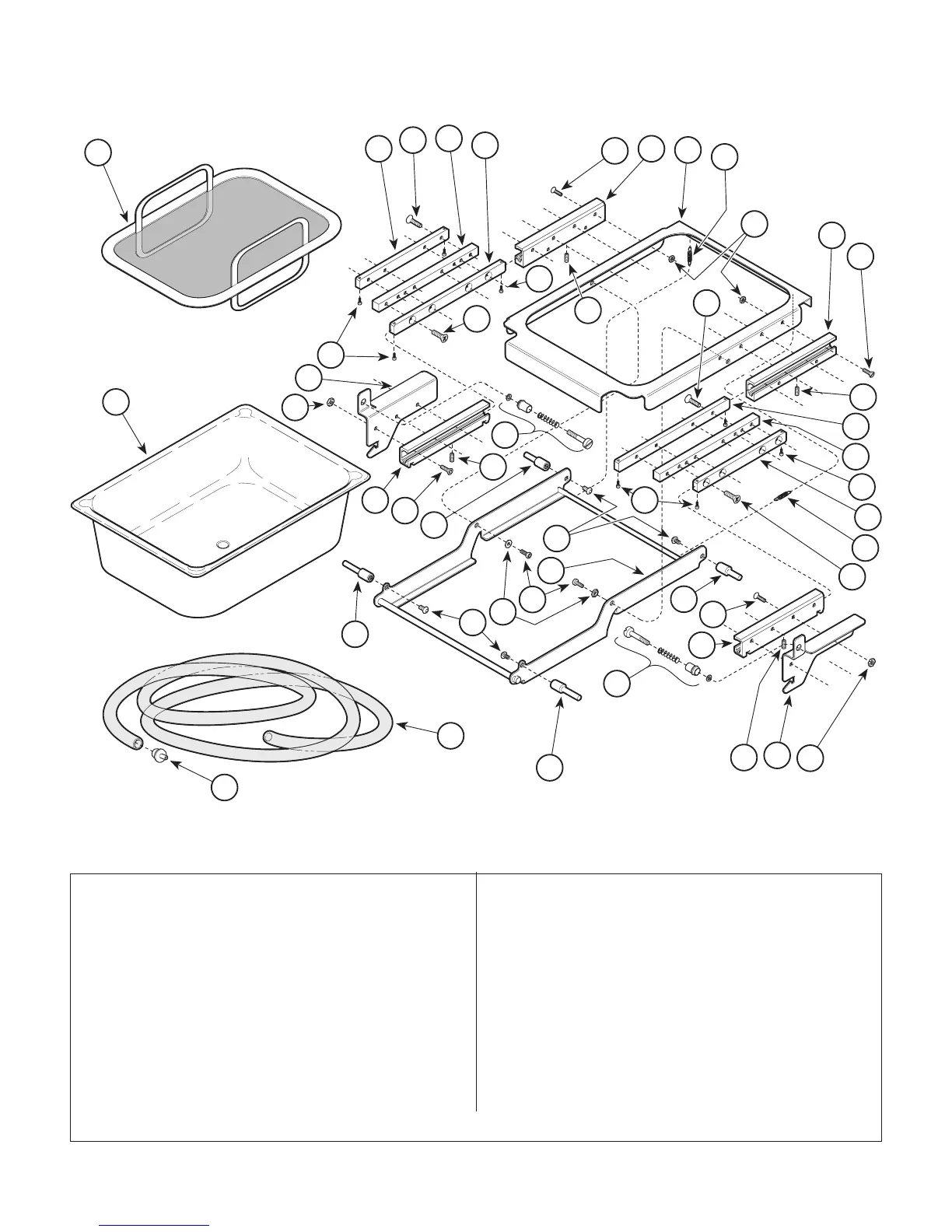

73003 Drain Pan Assembly
(Includes Items 1 thru 28) .................... 1
1 • 530-1157-00 • Screen Assembly ............................... 1
2 • 530-1266-00 • Drain Pan ........................................... 1
3 • 553-0285-03 • Tubing ................................................ 1
4 • 040-0004-19 • Cap Screw.......................................... 8
5 • 550-1117-00 • Right Base Bracket ............................ 1
6 • 041-0008-02 • Nut.................................................... 14
7 • 553-0507-00 • Short Slide.......................................... 2
8 • 040-0010-101 • Screw ................................................ 16
9 • 551-0755-00 • Slide Connector.................................. 2
10 • 553-0508-00 • Long Slide .......................................... 2
11 • 516-0441-00 • Captive Screw Assembly .................... 2
12 • 040-0010-63 • Set Screw............................................ 4
CA805300
73003 Drain Pan
13 • 040-0008-72 • Screw ................................................ 14
14 • 551-0753-00 • Inner Slide ........................................... 2
15 • 550-1119-00 • Pan Holder .......................................... 1
16 • 525-0055-05 • Spring .................................................. 2
17 • 550-1117-01 • Left Base Bracket ............................... 1
18 • 551-0754-00 • Outer Slide ......................................... 2
19 • 557-0965-01 • Short Pan Stop ................................... 2
20 • 040-0250-150 • Screw ................................................. 4
21 • 516-0263-00 • Bearing ............................................... 2
22 • 040-0010-121 • Screw ................................................. 2
23 • 530-1122-00 • Handle Weldment............................... 1
24 • 557-0965-00 • Pan Stop ............................................ 2
25 • 553-0569-00 • Suction Cap........................................ 1
1
2
3
4
5
6
7
8
9
10
8
12
13
14
15
16
6
14
13
12
10
9
7
4
16
8
8
6
13
17
18
19
18
13
19
20
20
21
22
23
24
24
12
4
4
12
11
11
25
© Schaerer Mayfield USA, Inc. 2004
