SECTION VI
PARTS LIST
Page 6-64
71080 Universal Ether
Screen
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.

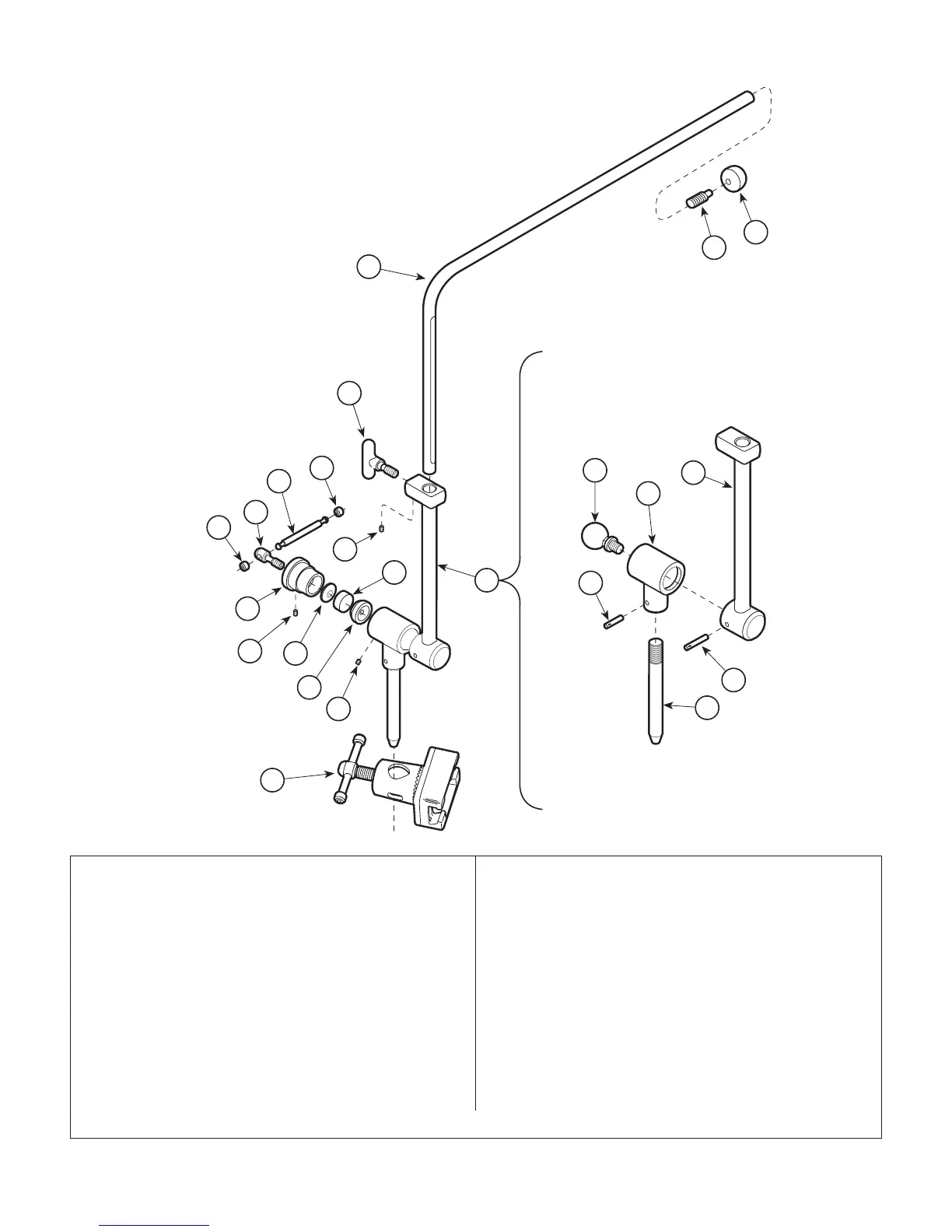

71080 Universal Ether Screen Assembly
(Includes Items 1 thru 21) .................... 1
1 • 529-0417-00 • Ball Joint Assembly (Includes
Items 2 thru 7).................................... 1
2 • • 530-0772-00 • • Support Tube Weldment .................. 1
3 • • 557-0648-00 • • Ball Joint .......................................... 1
4 • • 530-0771-00 • • Ball Joint Socket (Apply Penetrating
Grease #064-0005-00)..................... 1
5 • • 557-0625-00 • • Mounting Post .................................. 1
6 • • 042-0067-03 • • Groove Pin ....................................... 1
7 • • 042-0067-04 • • Groove Pin ....................................... 1
8 • 557-0634-00 • Ball Joint Grip (Apply Penetrating
Grease #064-0005-00)....................... 1
9 • 553-0284-00 • Compression Grommet (Apply
Penetrating Grease #064-0005-00) ... 1
HA541201
10 • 557-0633-00 • Compression Plate............................. 1
11 • 557-0628-00 • Ball Joint Nut ...................................... 1
12 • 553-0281-00 • Crossbar Cap ..................................... 2
13 • 557-0712-00 • Clamp Bolt.......................................... 1
14 • 557-0707-00 • Crossbar............................................. 1
15 • 530-0797-00 • Screen Rod Weldment ....................... 1
16 • 516-0264-00 • Stud (Apply Loctite #042-0025-00) .... 1
17 • 557-0590-00 • Knob ................................................... 1
18 • 520-0055-02 • Handle ................................................ 1
19 • 040-0006-25 • Screw (Apply Loctite #042-0025-00) . 2
20 • 040-0006-45 • Screw (Apply Loctite #042-0025-00) . 1
21 • 71070 • Siderail Socket Assembly (Refer to
"71070 Siderail Socket" Elsewhere) .. 1
1
17
19
20
11
2
3
4
5
6
7
12
12
13
14
10
9
19
8
18
15
16
21
© Schaerer Mayfield USA, Inc. 2004
