Schaerer 7300 - 71092 Infant Arm & Hand Table

SECTION VI
PARTS LIST
Page 6-70

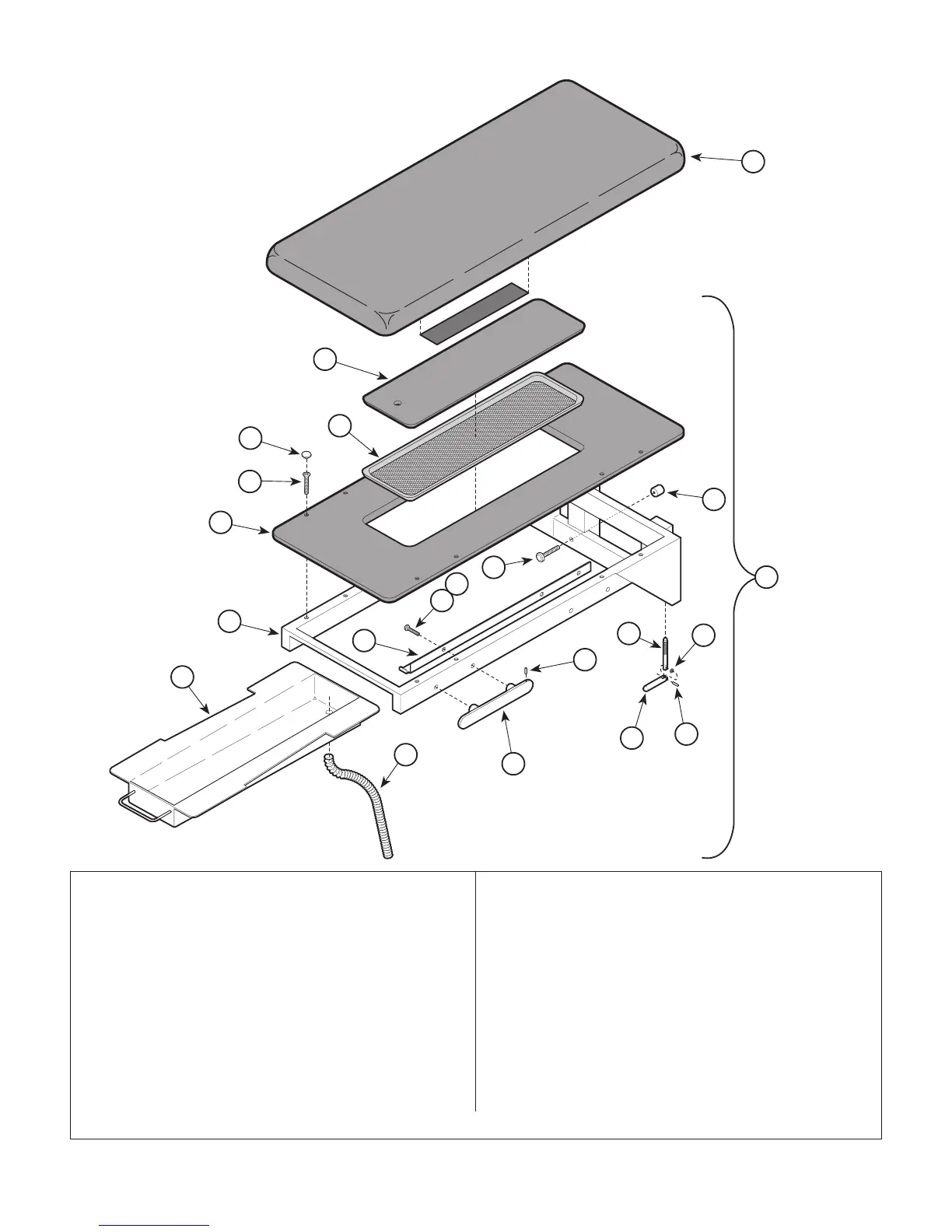

71092 Infant Arm & Hand
Table
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
71092 Infant Arm and Hand Table (Includes
Items 1 thru 19) .................................... 1
1 • 528-0095-00 • Infant Arm and Hand Table Cushion
(Includes Velcro) ................................ 1
• • 053-0105-13 • • Velcro ............................................... 1
2 • 529-0536-00 • Infant Arm and Hand Table Assembly
(Includes Items 3 thru 16) .................. 1
3 • • 557-0718-00 • • Nylon Bumper .................................. 2
4 • • 516-0255-01 • • Thumbscrew .................................... 2
5 • • 557-0719-00 • • Drop Handle Stud (Apply Petroleum
Jelly #064-0001-00) ......................... 2
6 • • 045-0001-88 • • Spring Washer ................................. 2
7 • • 042-0001-04 • • Roll Pin............................................. 2
8 • • 557-0721-00 • • Drop Handle Bar .............................. 2
CA770900
9 • • 042-0009-04 • • Roll Pin............................................. 4
10 • • 530-0926-00 • • Siderail Weldment ............................ 4
11 • • 040-0312-51 • • Screw ............................................... 8
12 • • 557-0740-01 • • R.H. Pan Rail (Shown) ..................... 1
• • 557-0740-00 • • L.H. Pan Rail (Not Shown) ............... 1
13 • • 530-0786-00 • • Frame Weldment ............................. 1
14 • • 553-0382-00 • • Table Top ......................................... 1
15 • • 505-702260 • • Screw ............................................... 8
16 • • 505-700080 • • Caplug.............................................. 8
17 • 553-0383-00 • Filler Board ......................................... 1
18 • 530-0845-00 • Pan Weldment.................................... 1
19 • 553-0285-01 • Drain Tube ......................................... 1
20 • 042-0025-00 • Loctite.............................................. AR
21 • 530-0962-00 • Screen Weldment ............................... 1
1
2
12
13
14
10
11
15
17
16
3
4
5
6
7
8
9
19
18
20
21
© Schaerer Mayfield USA, Inc. 2004
