SECTION VI
PARTS LIST
Page 6-91
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.

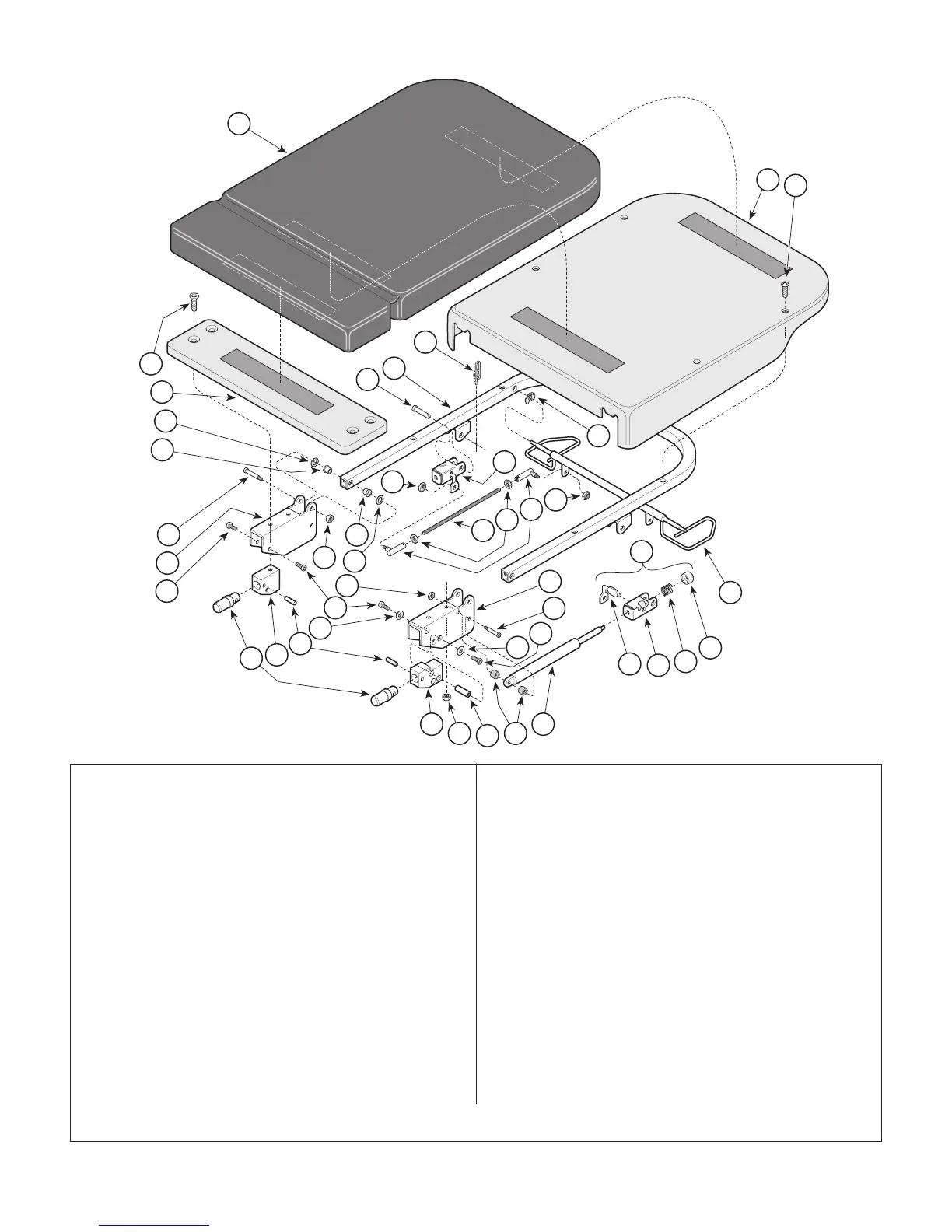

73002 Articulating Leg Transfer Board with
Cushion (Includes Items 1 thru 36) ...... 1
1 • 528-0150-00 • Cushion .............................................. 1
2 • 040-0312-65 • Screw ................................................. 4
3 • 553-0494-00 • Solid Leg Board.................................. 1
4 • 053-0858-00 • Nylon Washer .................................... 4
5 • 516-0263-03 • Flanged Bushing ................................ 4
6 • 530-1114-00 • Tube Weldment.................................. 1
7 • 042-0005-05 • Clevis Pin ........................................... 2
8 • 042-0014-29 • Shoulder Screw ................................... 2
9 • 550-1105-00 • Left Leg Spar...................................... 1
10 • 040-0250-150 • Screw ................................................. 6
11 • 041-0250-01 • Locknut............................................... 2
12 • 045-0001-118 • Washer ............................................... 4
13 • 042-0001-00 • Roll Pin ............................................... 2
14 • 551-0750-00 • Pin Block ............................................ 1
15 • 557-0696-00 • Mounting Pin ...................................... 2
16 • 042-0063-00 • Rue Ring ............................................. 2
17 • 042-0065-01 • Klipring ................................................ 2
18 • 553-0493-00 • Leg Cover............................................ 1
19 • 040-0010-129 • Screw .................................................. 4
CA804900
73002 Leg Transfer Board with Cushion
20 • 041-0250-08 • Locknut................................................ 4
21 • 516-0007-00 • Ball Joint............................................. 4
22 • 041-0250-07 • Nut ...................................................... 4
23 • 557-0951-00 • Threaded Rod .................................... 2
24 • 551-0749-00 • Sliding Pin Block ................................ 1
25 • 041-0312-01 • Nut ...................................................... 5
26 • 557-0947-00 • Pivot Pin ............................................. 2
27 • 553-0106-01 • Elastomer Spring ............................... 4
28 • GS084910 • Gas Spring ......................................... 2
29 • 042-0014-25 • Shoulder Screw.................................. 2
30 • 550-1105-01 • Right Leg Spar ................................... 1
31 • 529-0730-xx • Actuator Assembly
-00 Left
-01 Right
(Includes Items 32 thru 35) ................ 2
32 • • 557-0946-00 • • Actuator Rod ..................................... 2
33 • • 550-0841-00 • • Actuator Body ................................... 2
34 • • 525-0001-00 • • Compression Spring ......................... 2
35 • • 553-0448-00 • • Piston ................................................ 2
36 • 530-1115-00 • Handle Weldment................................ 1
1
2
3
4
5
6
7
8
9
10
11
10
5
4
12
13
14
15
16
17
19
18
31
20
31
20
21
22
23
24
25
26
27
28
29
30
10
12
32
33
34
35
36
25
