Schaerer 7300 - 71090 Lateral Support Set

SECTION VI
PARTS LIST
.
Page 6-69

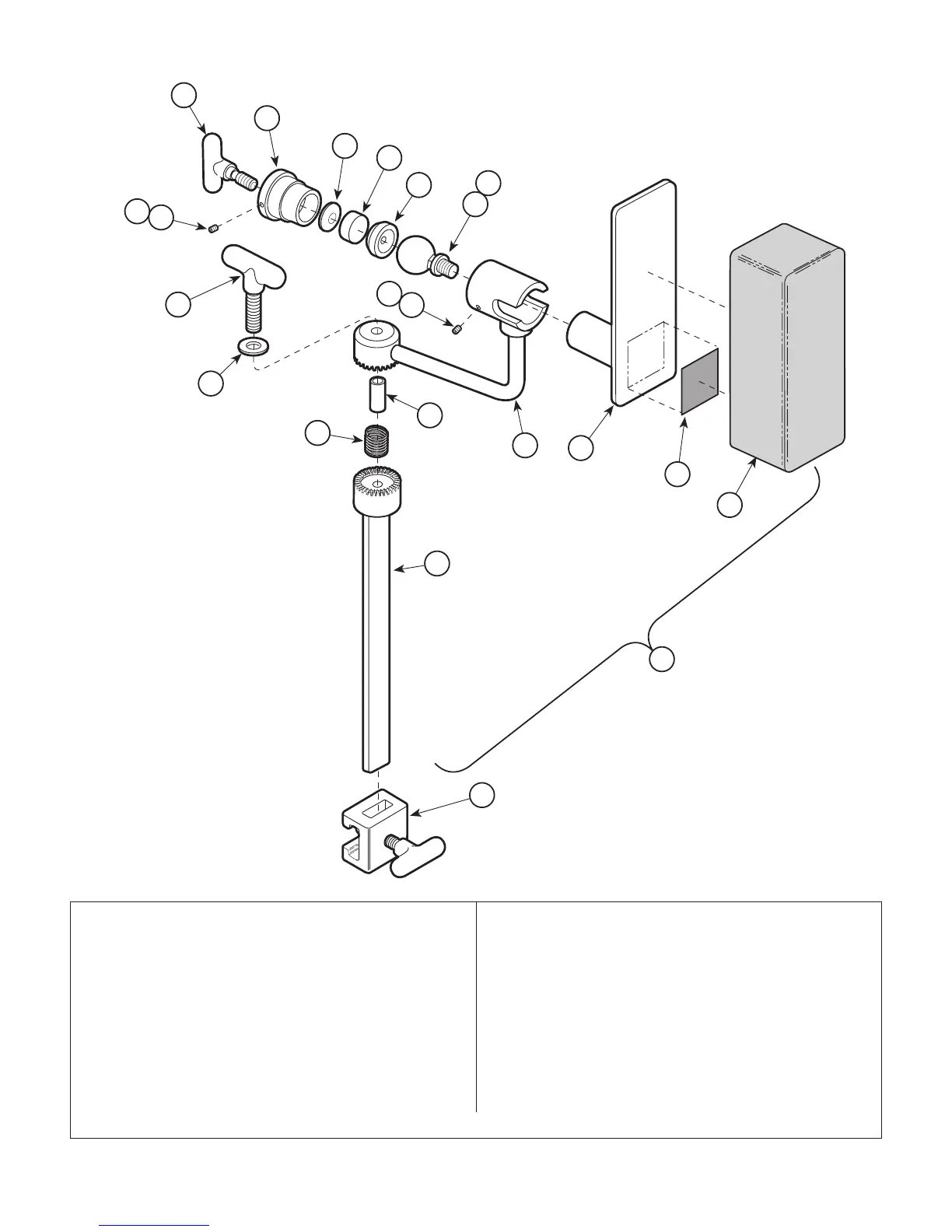

71090 Lateral Support Set
Always Specify Model & Serial Number
Item Part No. Description Qty.Item Part No. Description Qty.
71090 Lateral Support Set (Includes Items
1 and 2) ................................................ 1
1 • 71073 • Siderail Clamp (Refer to "Siderail
Clamp Assembly" Elsewhere)......... Ref
2 • 529-0463-00 • Lateral Support Assembly (Includes
Items 3 thru 19) .................................. 2
3 • • 530-0825-00 • • Plate Weldment................................ 1
4 • • 530-0827-00 • • Bar Weldment .................................. 1
5 • • 530-0826-00 • • Post Weldment ................................. 1
6 • • 525-0056-00 • • Spring ............................................... 1
7 • • 520-0055-04 • • Handle .............................................. 1
8 • • 557-0648-00 • • Ball ................................................... 1
9 • • 557-0634-00 • • Ball Grip ........................................... 1
10 • • 553-0284-00 • • Compression Grommet.................... 1
11 • • 557-0628-00 • • Compression Plate........................... 1
12 • • 557-0628-00 • • Nut ................................................... 1
13 • • 520-0055-02 • • Handle.............................................. 1
14 • • 042-0025-00 • • Adhesive Loctite............................ AR
15 • • 040-0006-45 • • Screw ............................................... 1
16 • • 040-0006-25 • • Screw ............................................... 1
17 • • 528-0089-00 • • Cushion (Includes Item 18) .............. 1
18 • • 053-0105-07 • • Velcro Loop ...................................... 1
19 • • 045-0001-01 • • Washer ............................................. 1
20 • • 516-0281-00 • • Bushing ............................................ 1
HA541601
3
4
5
6
7
8
9
12
13
14
15
14
17
20
19
14
16
1
2
10
11
18
© Schaerer Mayfield USA, Inc. 2004
