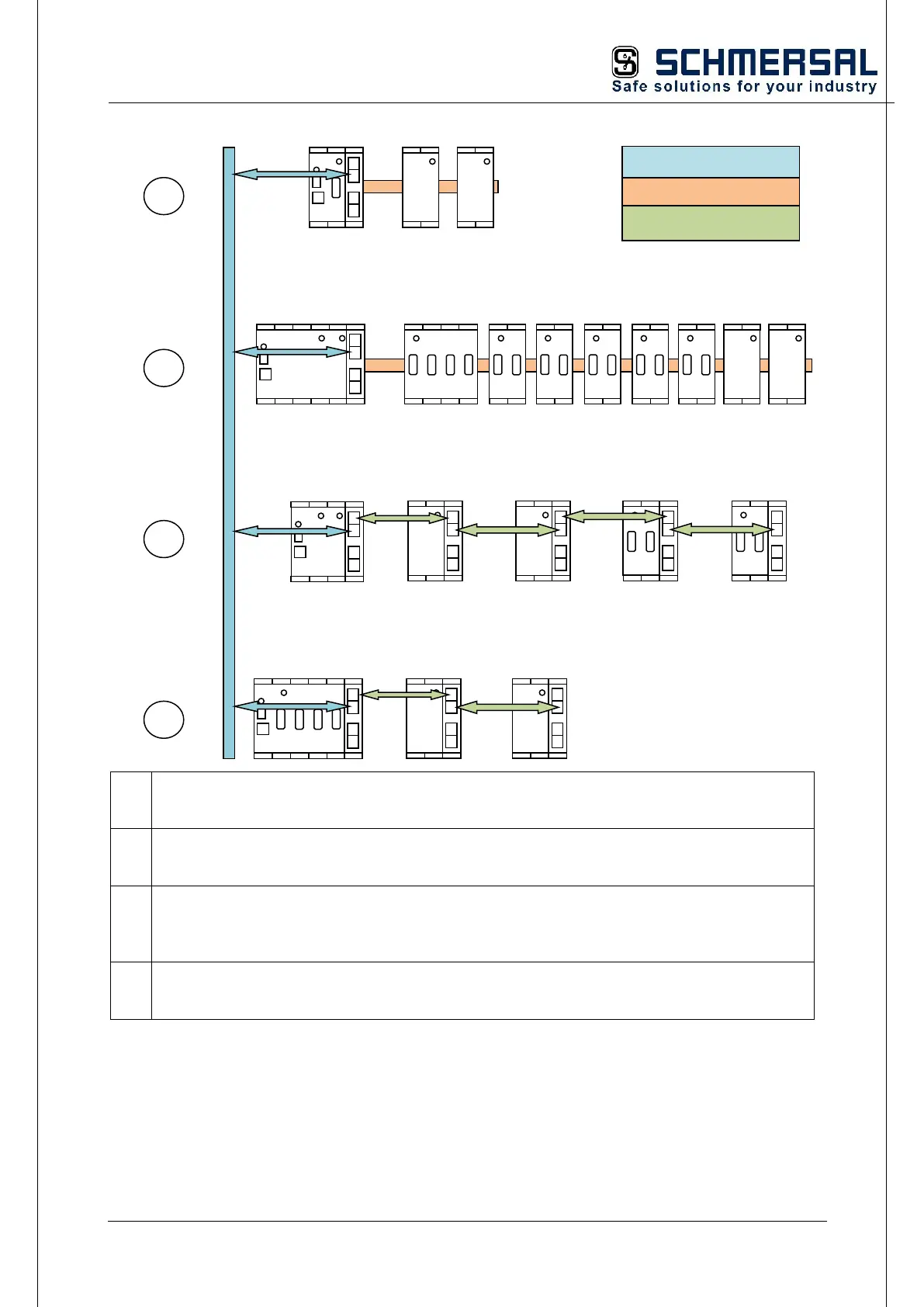

5.5.1 Schematic diagram of the network topology
1
Communication of a PSC1 compact with
 Central expansion modules via SDDC CAN backplane bus
 SMMC
(1)
via Ethernet
2
Communication of a PSC1 modular with
 Central expansion modules via SDDC CAN backplane bus
 SMMC
(1)
via Ethernet
3
Communication of a PSC1 modular with
 Decentral expansion module via SDDC
(2)
Ethernet
 SMMC
(1)
via Ethernet
 A switch is required in the configuration shown
4
Communication of a PSC1 compact with
 Decentral expansion modules via SDDC
(2)
Ethernet
 SMMC
(1)
via Ethernet
Options:
(1)
SMMC on request
(2)
SDDC in preparation
1
2
3
4
SDDC CAN (central)
SDDC?
SMMC
(1)
SDDC
(2)
ETH (decentral)
