5.6 Installation of I/O expansion
Note:
Max. two PSC1-E-3x modules can be operated using a basic device.

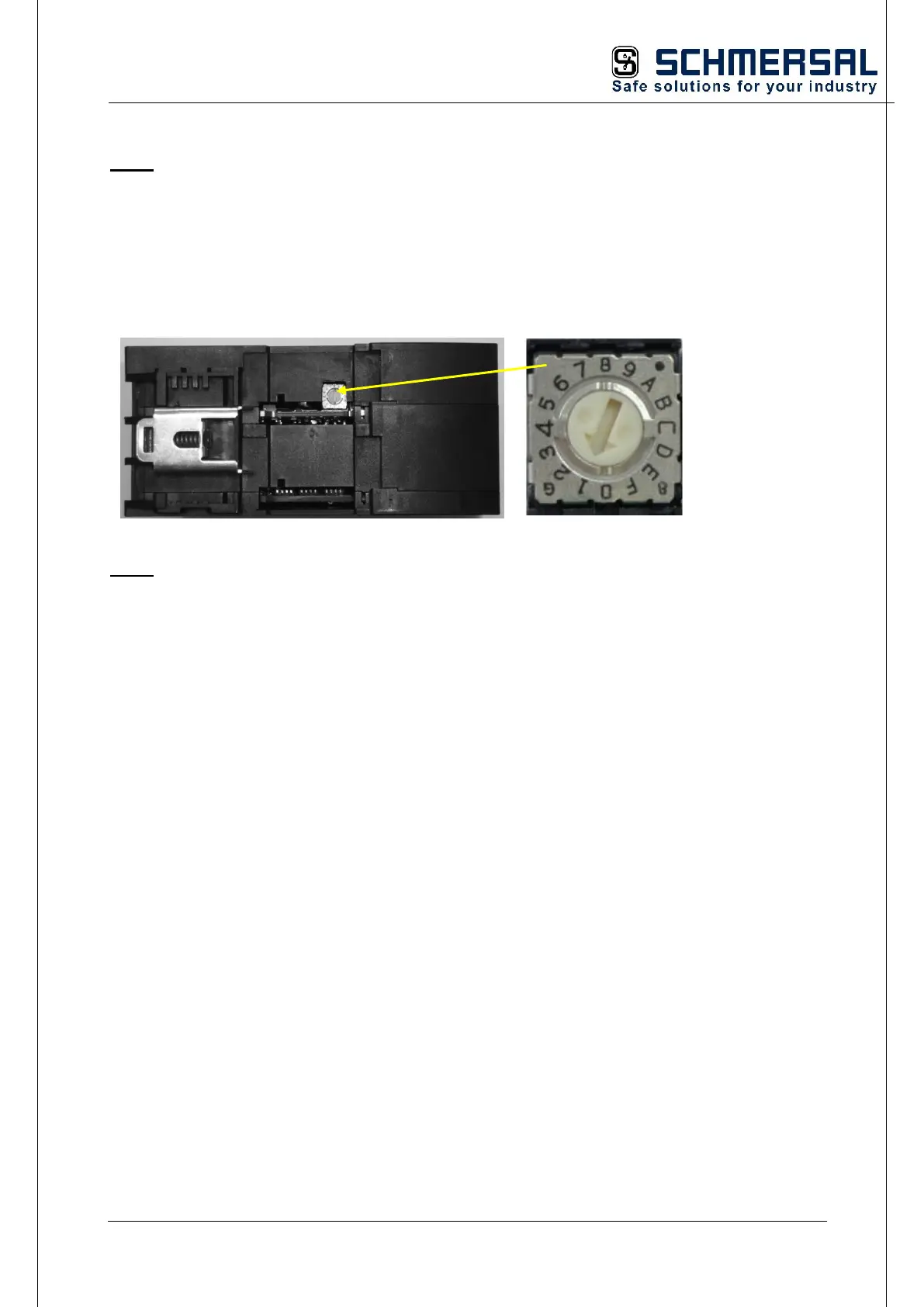

5.6.1.1 Physical address configuration for the slave modules (central / decentral)
The bus address must be set on the PSC1-E-3x modules with the aid of the address switch.
The address is set on the rear panel depending on the slot (mounting position) of the module.
Note:
 Address range on the PSC1-E-3x module is 1or 2.
 Address "0" is reserved for the basic device.
 Factory setting of all expansion modules: 1
