Installation manual

HB-37350-810-01-50F-EN PSC1-C-10 Installation manual V2.1.docx Page 127 of 189

Version: 50F

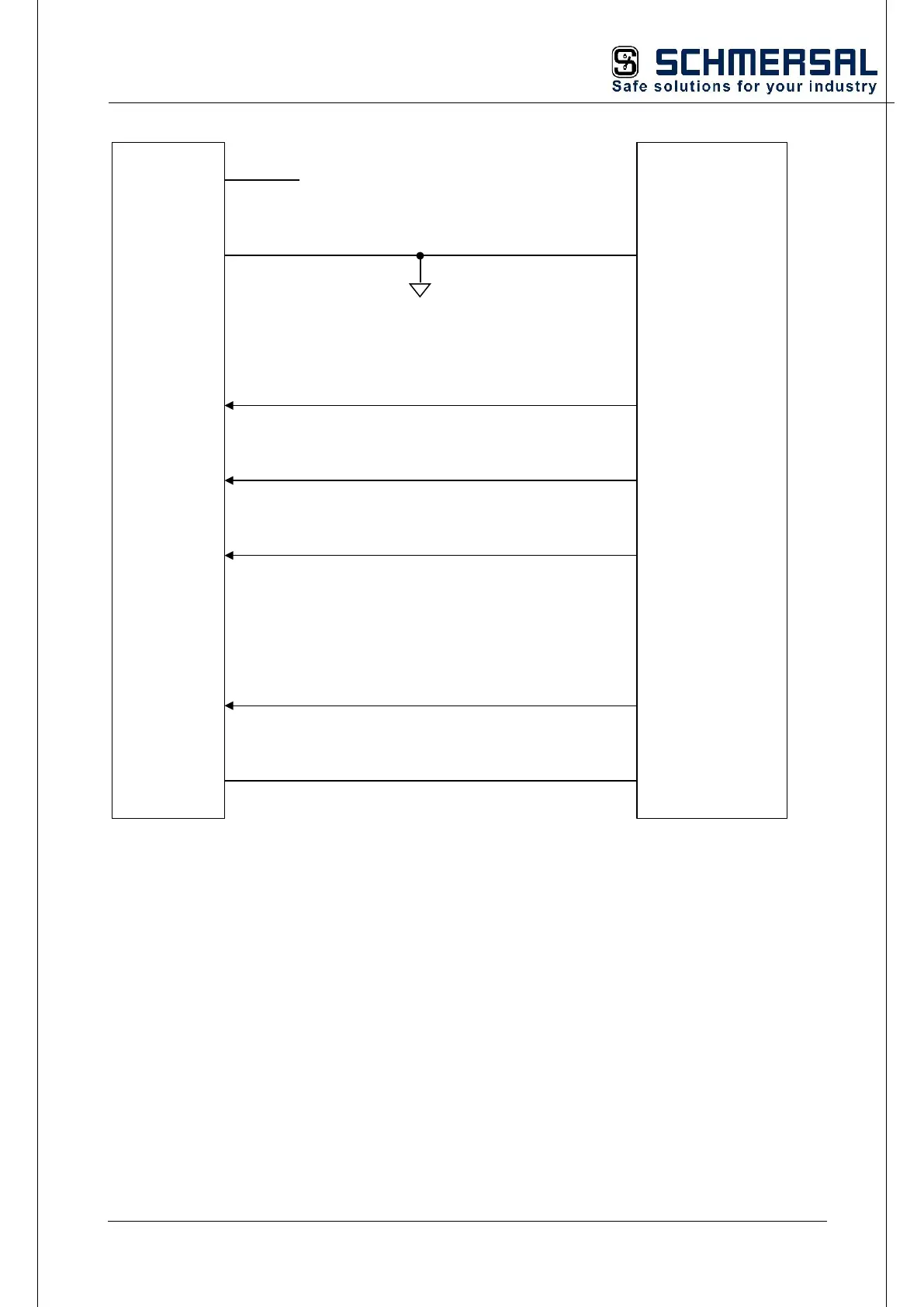

5.11.3.4 Connection of a SIN/COS encoder

Sub-D-

Stecker

(9 polig)

SMX

SIN/COS

Geber

n.c.

Ground

n.c.

COS-

SIN+

SIN-

n.c.

COS+

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8

Pin 9

Versorgungsspannung

Pins 1, 3 and 7 remain open and are reserved for later expansions.

GND for the supply voltage

24 V DC

PSC1
