schmersal PSC1-C-10 Series User Manual

Installation manual
HB-37350-810-01-50F-EN PSC1-C-10 Installation manual V2.1.docx Page 118 of 189
Version: 50F

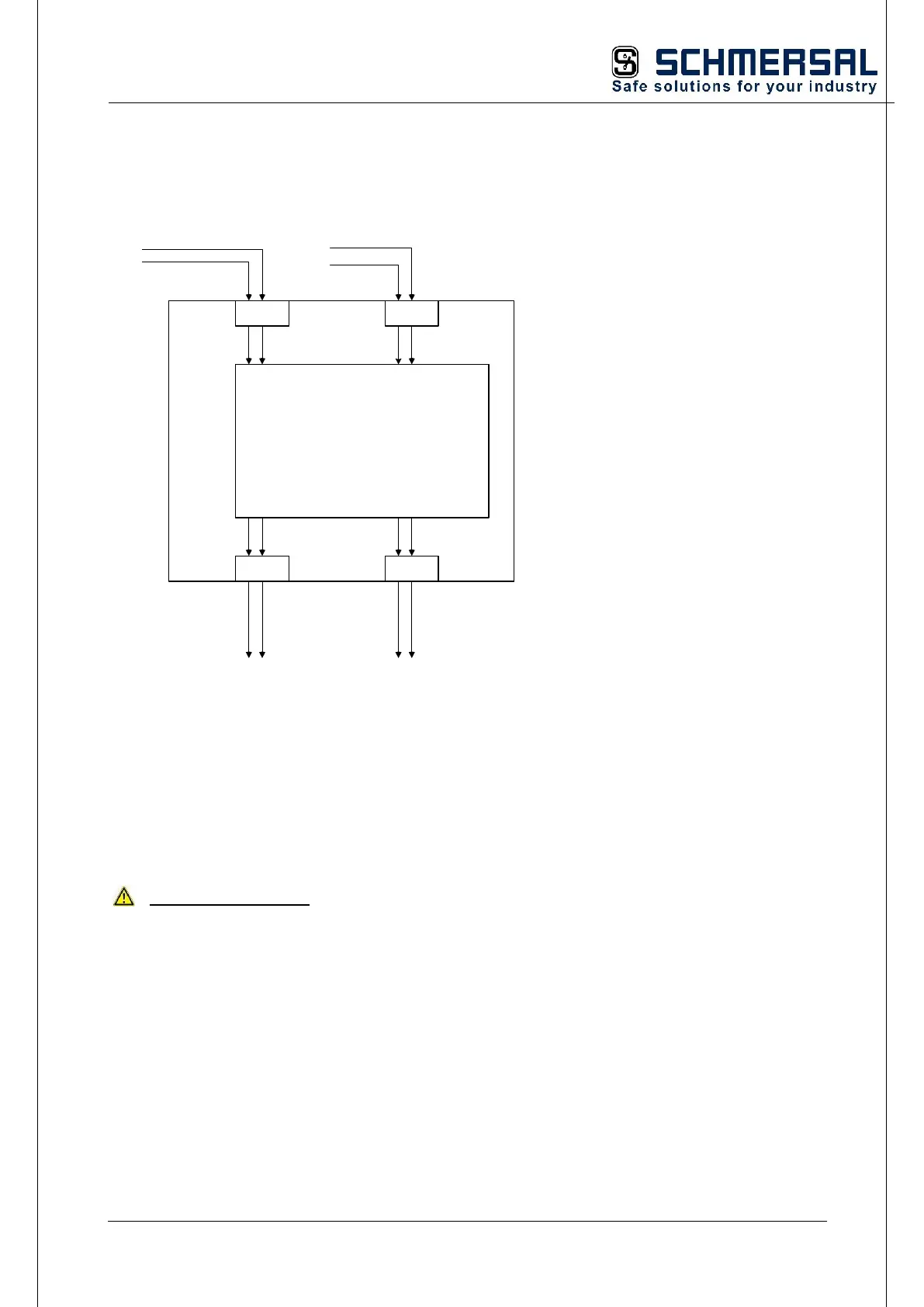

5.9 Connection of the external encoder supply
5.9.1 Incremental, HTL (on request), SIN/COS, SSI
1)
PSC1
Spannungs-
überwachung
der externen
Geber-
versorgungs-
spannungen
UE1+
UE1-
X1
UE1+
UE1-
9 2
UE2+
UE2-
X2
UE2+
UE2-
9 2
X13
1 2
X15
1 2
1)
1)
Options:
1)
Only PSC1-C-10-SDM2
The PSC1 module supports encoder voltages of 5V, 8V, 10 V, 12V, 20V and 24V that are
monitored internally as per the configuration selected.
If an encoder system is not supplied via the PSC1 module, a supply of power must still be
connected to terminal X13 and X15 and configured appropriately.
The encoder supply is to be protected with maximum 2 A.
Safety instructions:
 The GND connection for the encoder must be connected to GND on the PSC1
