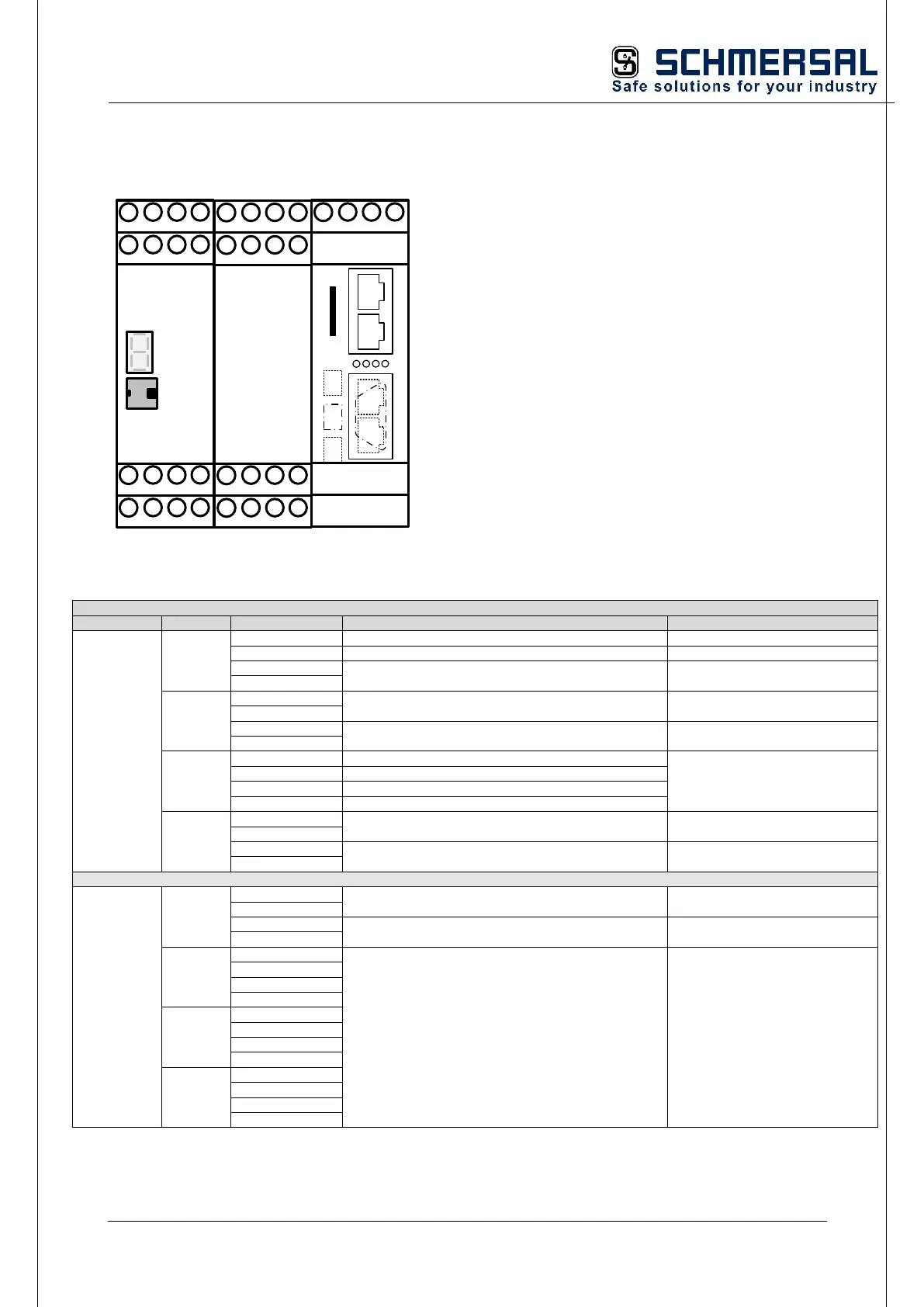

5.7.1 Terminal assignment PSC1-C-10 (-FBx/-MC)
1
1
X11
X12
4
4
1
1
X21
X22
4
4
1
1
X13
X14
4
4
I00 I01
I02 I03
NC NC
T0 T1
I09
I10 I11
I04 I05
I06 I07
CPU
I08
1
1
X23
X24
4
4
I12 I13
Y0 Y1
Q4.1 Q4.2
Q5.1 Q5.2
Q0 Q1
Q2 Q3
REL
A1.1 A1.2 A2.1 A2.2
A1.3 A2.3
1 4
SD
FE
FB 1.1
FB 1.2
FB 2.1
FB 2.2
SDHC
1 4
FB 2
Option
FB1/FB2
X99
Terminal assignment
Unit
Terminal
Pin
Description
Note
REL
X11
1 – A1.1
Device power supply +24 VDC
2 – A1.2
Device power supply +24 VDC outputs
3 – A2.1
Device power supply 0 VDC
4 – A2.2
X12
1 – I 12
Safe digital inputs
2 – I 13
3 – Y0
Signal outputs
4 – Y1
X21
1 – Q0
Output pn switching Q0_PP / pp switching Q0
optionally can be configured in the
parameters via SafePLC2
2 – Q1
Output pn switching Q1_PN / pp switching Q1
3 – Q2
Output pn switching Q2_PP / pp switching Q2
4 – Q3
Output pn switching Q3_PN / pp switching Q3
X22
1 – Q4.1
Safe relay output
2 – Q4.2
3 – Q5.1
Safe relay output
4 – Q5.2
CPU
X13
1 – NC
No function
2 – NC
3 – T0
Pulse outputs
4 – T1
X14
1 – I 00
Safe digital inputs
2 – I 01
3 – I 02
4 – I 03
X23
1 – I 04
2 – I 05
3 – I 06
4 – I 07
X24
1 – I 08
2 – I 09
3 – I 10
4 – I 11
