schmersal PSC1-C-10 Series User Manual

Installation manual
HB-37350-810-01-50F-EN PSC1-C-10 Installation manual V2.1.docx Page 51 of 189
Version: 50F
4.2.1.4 Connection examples, digital sensors/safety switch
Attention! Identifiers for "Xxy" terminal blocks (e.g. X14) are not printed on the terminal blocks.
They are used in Section 5.7 Terminal assignment to find the individual terminals more
quickly, e.g. "I00".

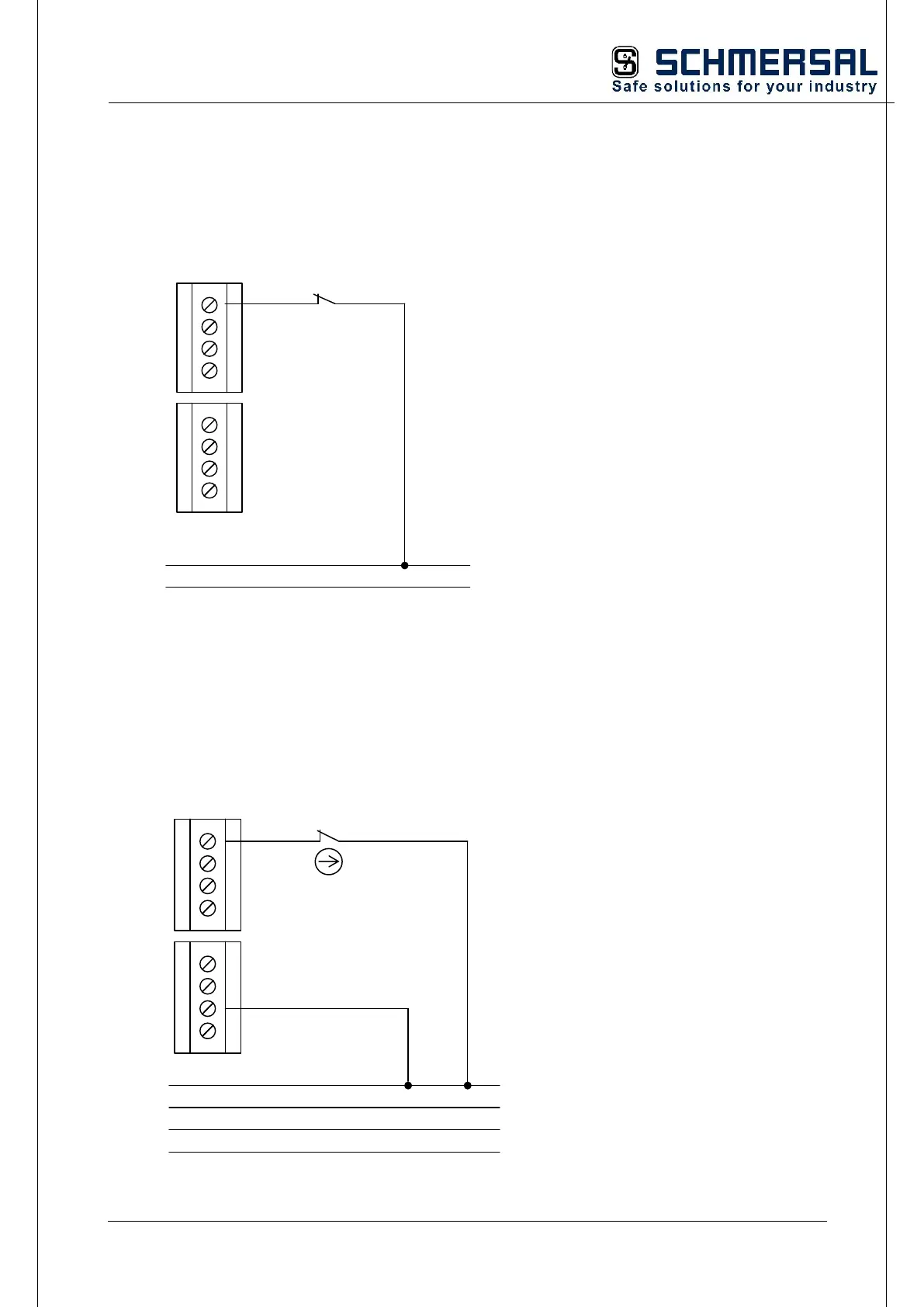

4.2.1.4.1 Single-channel sensor, without cross-circuit testing
I00
I01
I02
I03
T0
T1
L+
L-
X14
X12
.
.
.
Single-channel sensor, without cross-circuit testing
The single-channel sensor is connected to the PSC1 without test pulses, and without cross-
circuit testing. This design is not recommended for safety applications. Max. PL b according to
EN ISO 13849-1 can be achieved.
4.2.1.4.2 Single-channel sensor with cross-circuit testing
L+
L-
T1
T0
I00
I01
I02
I03
T0
T1
X14
X12
.
.
.
Single-channel sensor with test pulses
