HB-37350-810-01-50F-EN PSC1-C-10 Installation manual V2.1.docx Page 125 of 189
Version: 50F

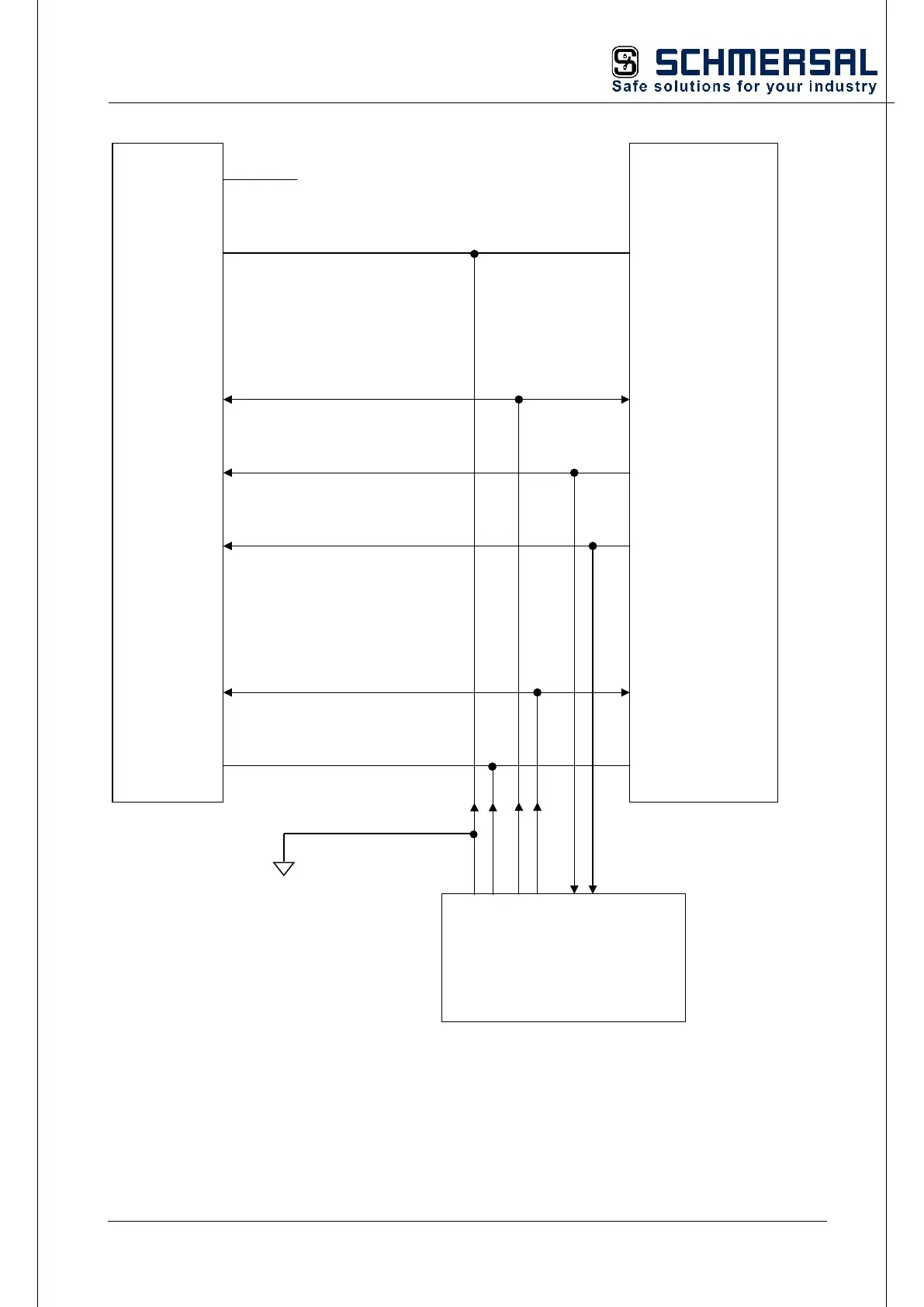

5.11.3.2 Connection of an absolute encoder as slave
Sub-D-
Stecker
(9 polig)
PSC1
Absolut-
Encoder
(Slave-Betrieb)
n.c.
Ground
n.c.
CLK-
DATA+
DATA-
n.c.
CLK+
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
externes Abtastsystem
Versorgungsspannung
With this type of connection, the clock signals and the data are read together. In this example
the encoder is not supplied with power from the module.
GND for the supply voltage
24 V DC
PSC1
