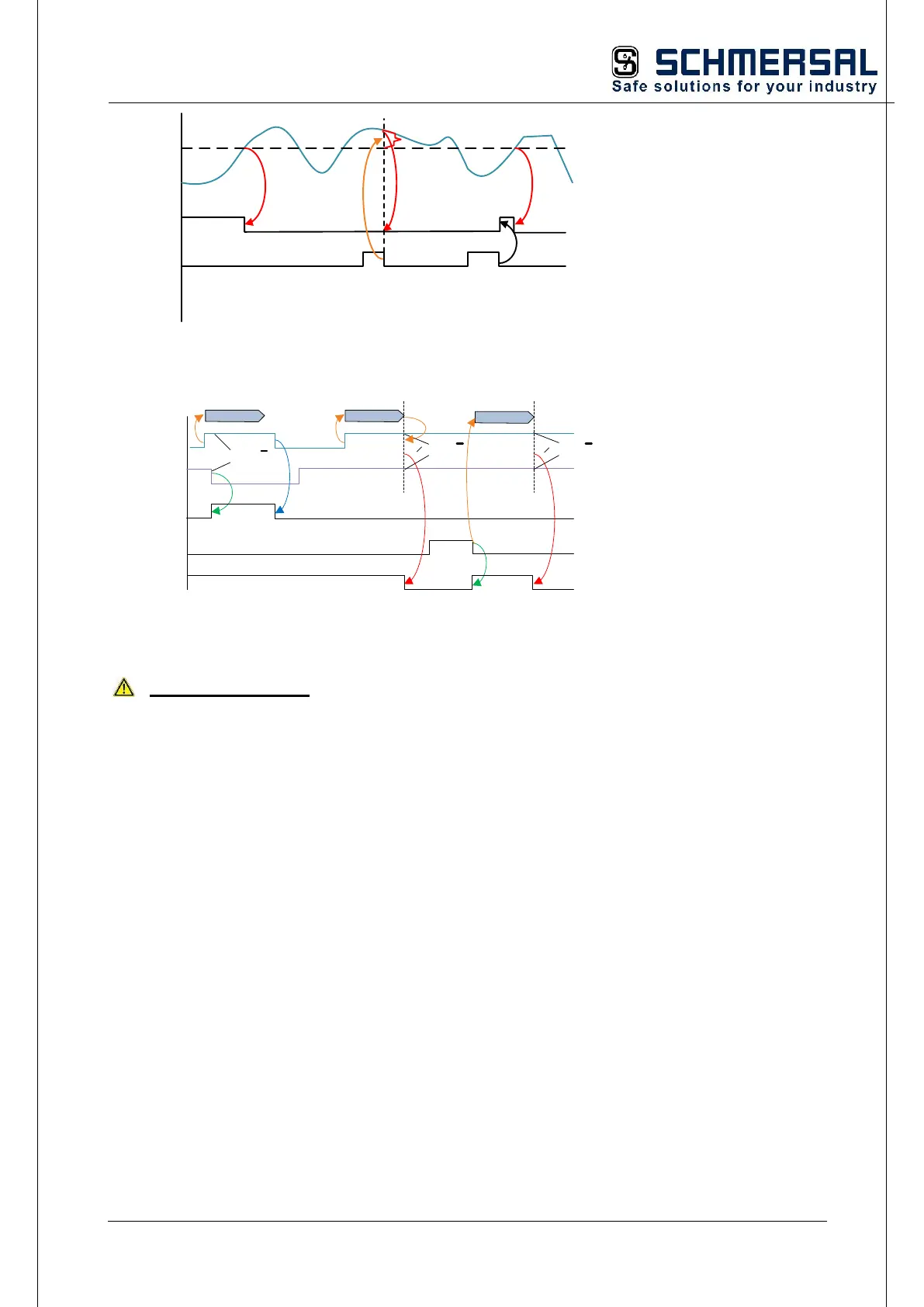

V_Ist
Reset_In
SOS_Result
V_Is t > SOS_V_Max
Process value (speed) => no change to the output status on reset in the alarm state
Reset_In
IN_Result
I1
I2
Q =I1 AND I2
Q =I1 AND I2
Alarm_Status
Max. 3 sec Max. 3 sec
Max. 3 sec
Q =I1 AND I2
Time-based function => reset the output status, triggering if limit exceeded again
Safety instructions:
 For time-based functions, e.g. monitoring of the timing of complementary input signals,
the output status is reset and a state defined as erroneous only detected if the (time)
limit is exceeded again.
 To protect against incorrect usage, e.g. repeated triggering of the reset function to
bypass an alarm state, if necessary applicative measures must be taken in the PLC
programming.
