schmersal PSC1-C-10 Series User Manual

Installation manual
HB-37350-810-01-50F-EN PSC1-C-10 Installation manual V2.1.docx Page 145 of 189
Version: 50F
Application-related measure:
Using an operator in the PLC program, the activation of the outputs while bypassing the alarm
state for this time is prevented.

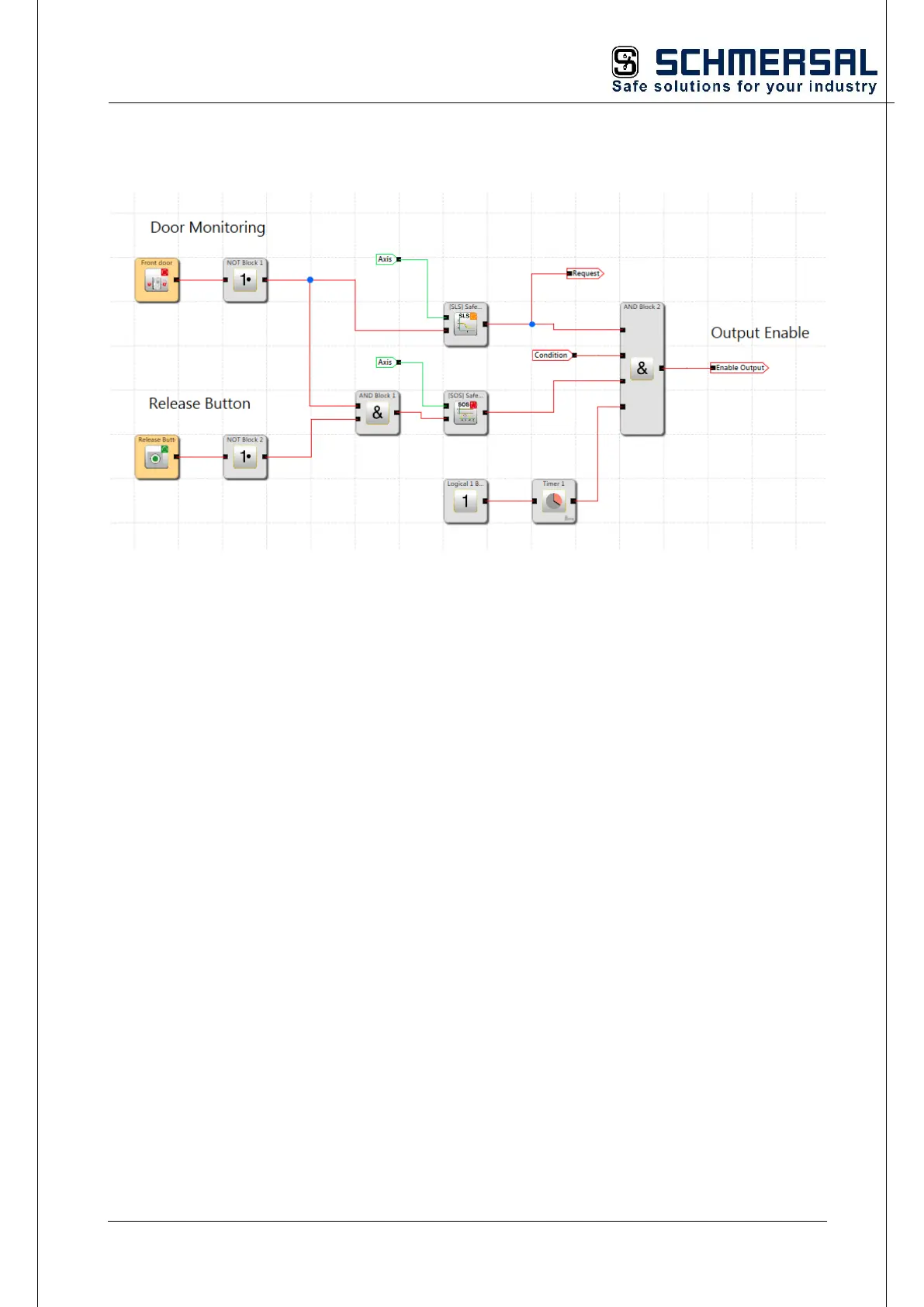

Example 1:
 The enable function for the outputs (AND function) is also linked to a "reset timer". This
operator prevents the activation of the outputs for t > 3 sec after a reset => the
renewed action of time monitoring is safeguarded.
