3.7.1.5 PSC1-C-10-SDM2 (-FBx
(1)
/MC)

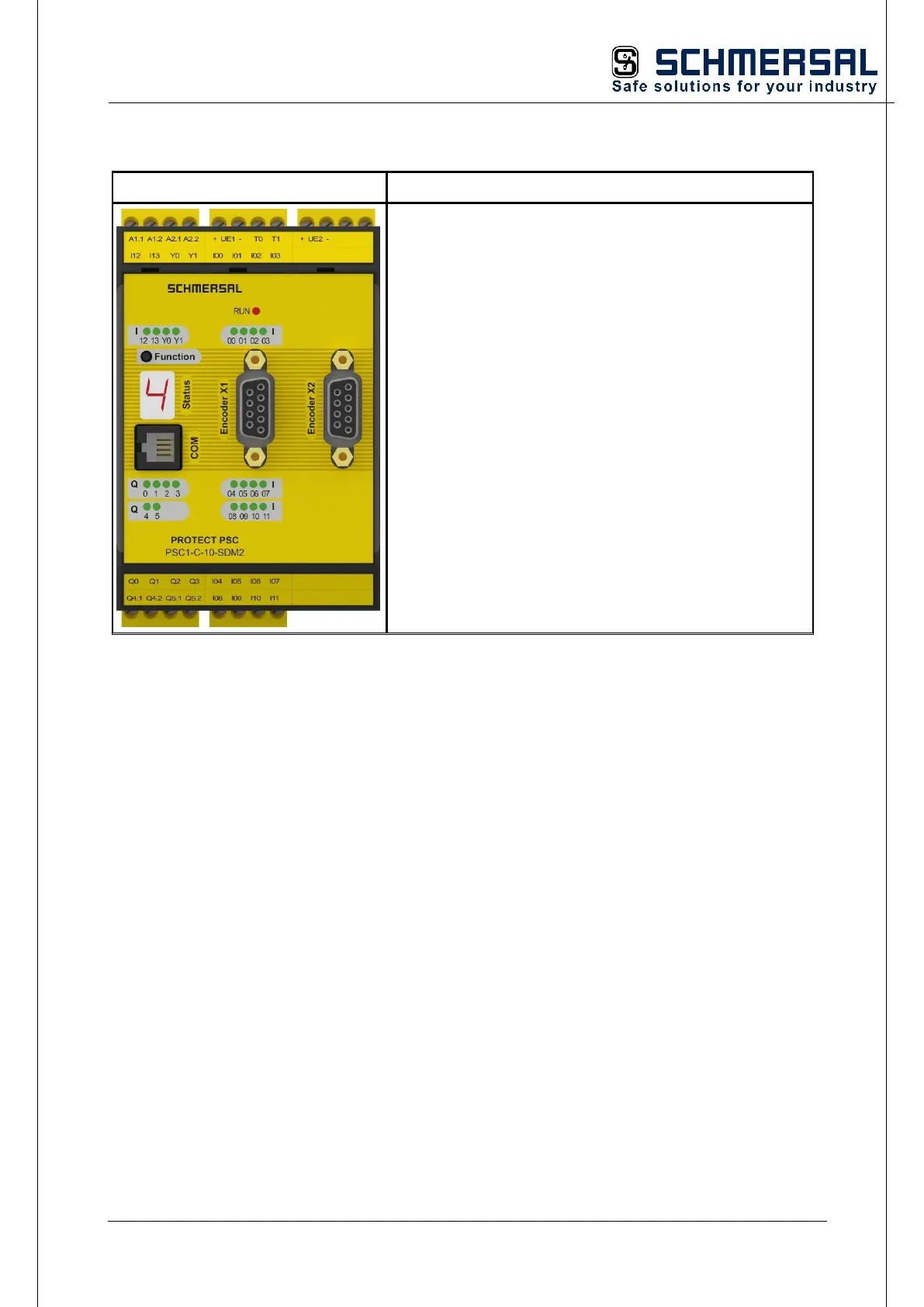

Type designation
Device features
Version of the module with following peripherals:
2 axes
4 encoder interfaces
14 digital inputs
2 pulse outputs
2 relay outputs (1-channel)
2/4 pn or pp switching outputs
2 signal outputs
1 diagnostics and configuration interface
1 function button
1 7-segment display
1 status LED
14 status LEDs for inputs
2 status LEDs for signal outputs
2 status LEDs for relay outputs
4 status LEDs for outputs
1 optional: Communication interface (-FBx
(1)
)
Properties of the module:
 Can be expanded to:
o Max. 42 safe digital inputs,
o Max. 12 safe digital outputs,
o Max. 20 safe digital I/O,
o Max. 5 safe relay outputs (2-channel),
o Max. 6 signal outputs,
o Max. 2 safe axes
 Logic processing up to PL e EN ISO 13849-1 or SIL 3 as per EN 61508
 Movement monitoring on one or two axes up to PL e EN ISO 13849-1 or SIL 3 as per
EN 61508
o Velocity monitoring
o Speed monitoring
o Standstill monitoring
o Direction of rotation monitoring
o Safe increment
o Emergency stop monitoring
o Position monitoring
o Position range monitoring
o Movement range monitoring
o Destination position monitoring
 Freely programmable small controller for up to 800 IL instructions
 Function plan-orientated programming
 Pulse outputs for cross-circuit detection on digital input signals
 Counter inputs alternative to the digital inputs
 External contact monitoring on switchgear connected (EMU)
 Monitored relay outputs for safety-related functions
