Section 11 LUBRICATION SYSTEM (2 STROKE)
Subsection 03 (OIL INJECTION PUMP)
SMR2003-034_11_03A.FM 11-03-7

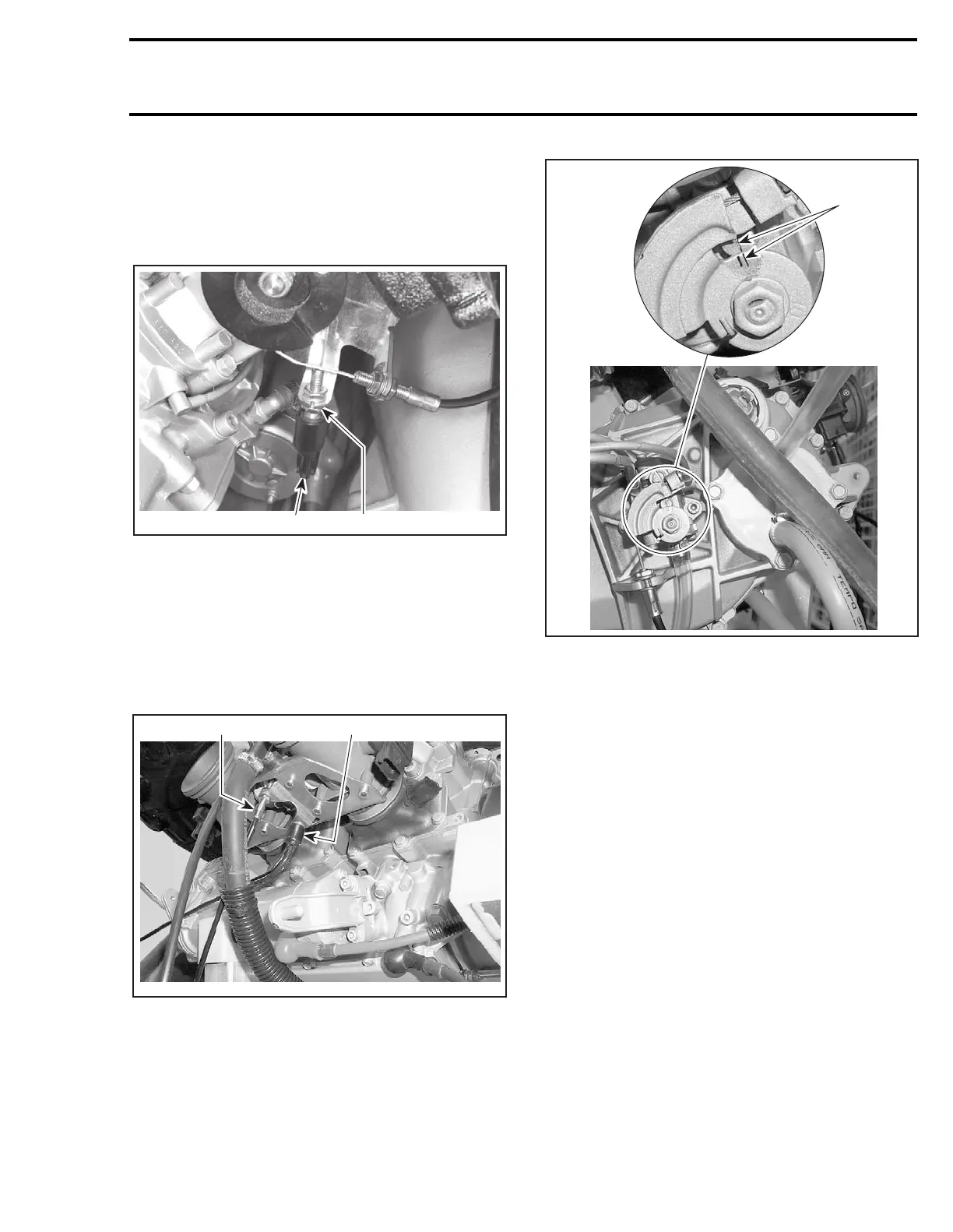

Loosen jam nut and turn cable adjustment nut to
obtain proper pump setting.
The adjustment nut and jam nut for the oil injection
pump cable are located at the cable support on the
throttle body.
1. Oil pump cable
2. Adjustment nut
947 DI Engines
Loosen jam nut and turn cable adjustment nut to
obtain pump mark alignment. Refer to following
photos.
The adjustment is located under the throttle body
bracket.
1. Oil pump cable adjustment
2. Throttle cable
Adjust the cable to the rich position. Use the long-
est mark.
1. Mark on pump must be facing longest mark on lever
All Engines
Start and bring engine to normal operating temper-
ature.
CAUTION: If watercraft is out of water, engine
must be cooled using the flush kit. If air bubbles
are present in the oil injection system, bleed
system before operating engine.
Adjust idle speed to specification on Carburetor
Equipped Engines. Refer to CARBURETOR.
NOTE: On RFI engines, refer to FUEL INJECTION
for idle speed adjustment procedure.
NOTE: On DI engines, there is no idle speed ad-
justment to perform.
Stop engine.
Final Synchronization
Eliminate throttle cable free-play by depressing
throttle lever until a slight resistance is felt. In this
position, marks on pump body and lever must
align.
If necessary, turn cable adjustment nut to obtain
pump mark alignment. Refer to above illustrations.
Tighten jam nut and recheck alignment marks.
1
F07F0WB
2
1
F16F01A
2
F16G03B
1
