Section 11 LUBRICATION SYSTEM (2 STROKE)
Subsection 03 (OIL INJECTION PUMP)
11-03-8 SMR2003-034_11_03A.FM
CAUTION: Proper oil injection pump adjustment
is very important. Any delay in the opening of
pump can result in serious engine damage.

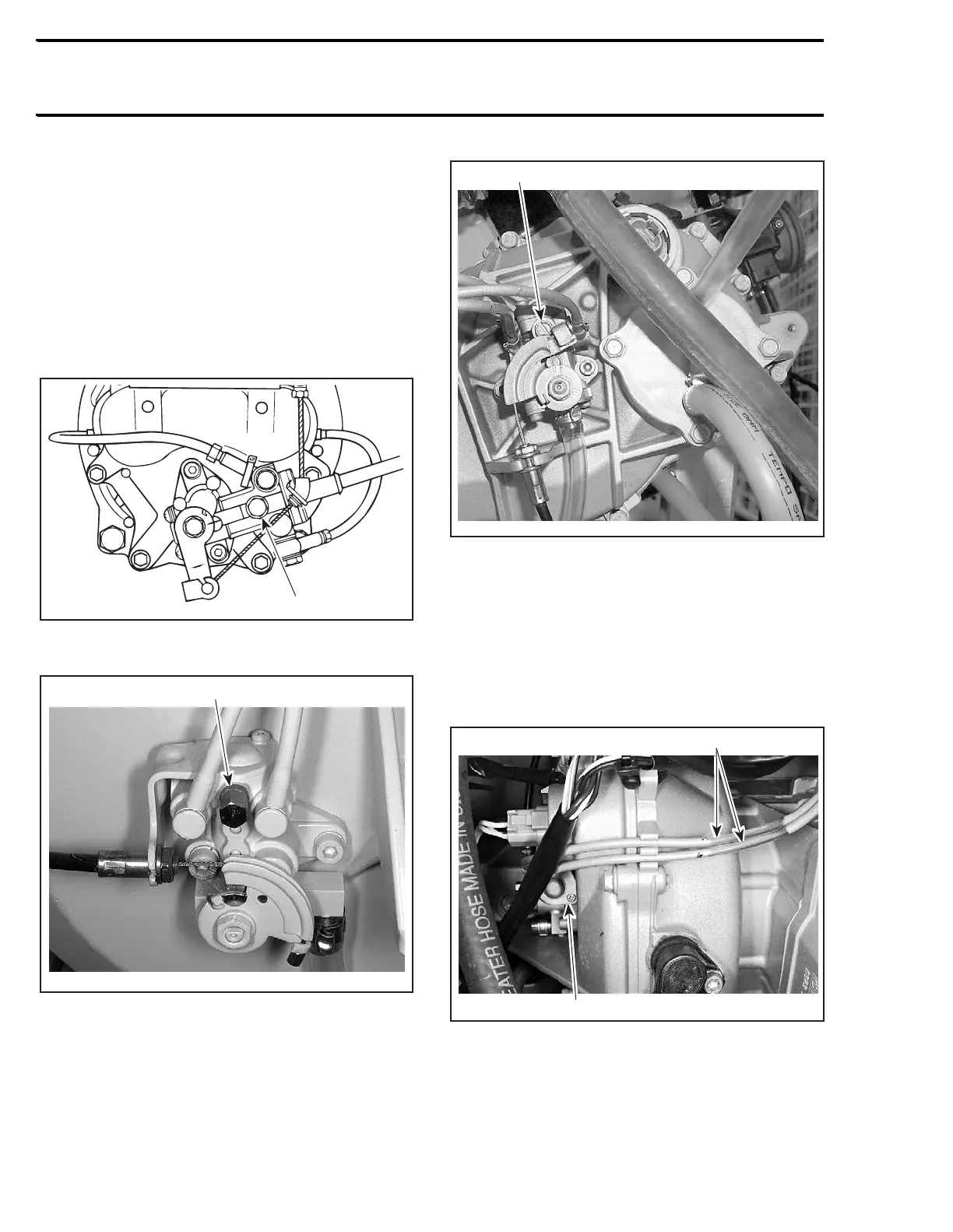

Bleeding
CAUTION: Oil injection system must be bled and
adjustment checked before operating engine.
Ensure oil injection reservoir is sufficiently filled.
Install a dry rag below oil injection pump.
Loosen bleed screw to allow oil to flow.
717 ENGINES
1. Bleed screw
787 RFI ENGINES
1. Bleed screw
947 DI ENGINES
1. Bleed screw
Keep bleeding until all air has escaped from line.
Make sure no air bubbles remain in oil supply line.
Tighten bleed screw.
Wipe any oil spillage.
Check small oil lines of the pump. They must be
full of oil.
1. Lines must be full of oil
2. Oil pump
If not, proceed as follows.
1
F16G02A
1
2
F07G06A
