Section 15 SUSPENSION
Subsection 02 (DIRECT ACTION SUSPENSION)
15-02-2 SMR2003-045_15_02A.FM

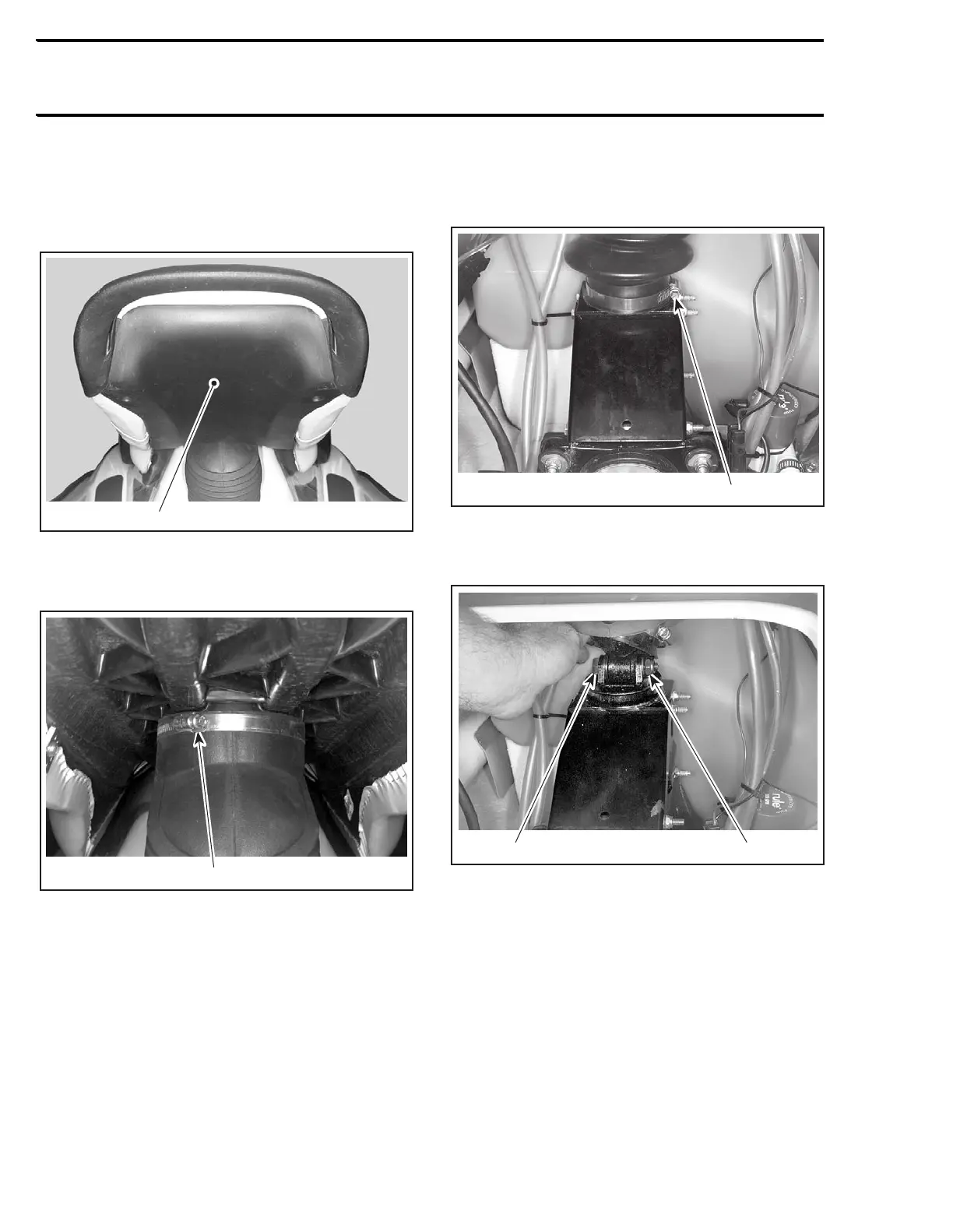

REMOVAL
Shock Absorber
Loosen 4 screws and remove bottom cover of seat.
1. Remove cover
Loosen gear clamp no. 2 of outer boot no. 3, then
pull outer boot downward.
1. Loosen gear clamp
Remove rear access panel from body.
Loosen lower gear clamp no. 4, then push inner
boot no. 5 upward.
1. Loosen gear clamp
Remove bolt no. 6 and lock nut no. 7 from shock
absorber lower support no. 8.
1. Bolt
2. Lock nut
F08I03B
1
F08Q03A
2
1
