Section 10 PROPULSION SYSTEM
Subsection 02 (JET PUMP)
10-02-6 SMR2000_065_10_02A.FM

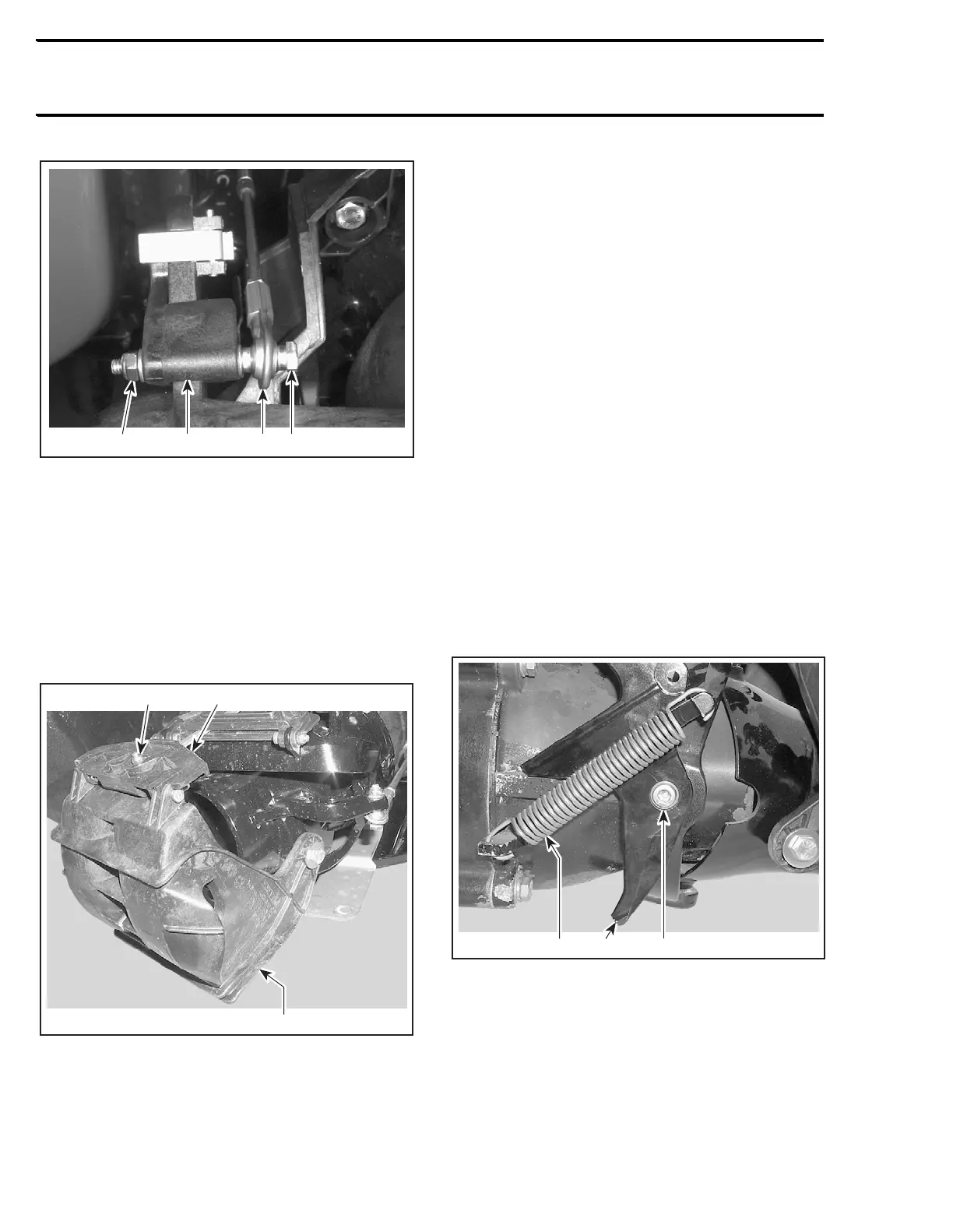

1. Bolt
2. Cable end
3. Cable lever
4. Lock nut
Unscrew and remove 2 Allen screws no. 36 re-
taining reverse gate to support no. 37 and remove
reverse gate.
Pivot Support
Remove reverse gate.
Unscrew pivot bolts no. 38.
1. Pivot bolts
2. Pivot support
3. Reverse gate
Withdraw pivot support.
Connecting Rod
Remove:
– reverse gate
– pivot bolt no. 89.
Withdraw connecting rod.
Pivot Triangle
Remove:
– reverse gate
– connecting rod
– pivot bolts no. 40.
Withdraw pivot triangle no. 41.
Pivot Arm
Remove:
– reverse gate
– connecting rod
– spring
– pivot bolts no. 42. Take note of bushing size for
reinstallation.
Withdraw pivot arm no. 43.
1. Pivot bolts (each side)
2. Spring
3. Pivot arm
F16J06A
23 1
