Section 04 ENGINE
Subsection 05 (TOP END)
04-05-16 SMR2000-046_04_05A.FM

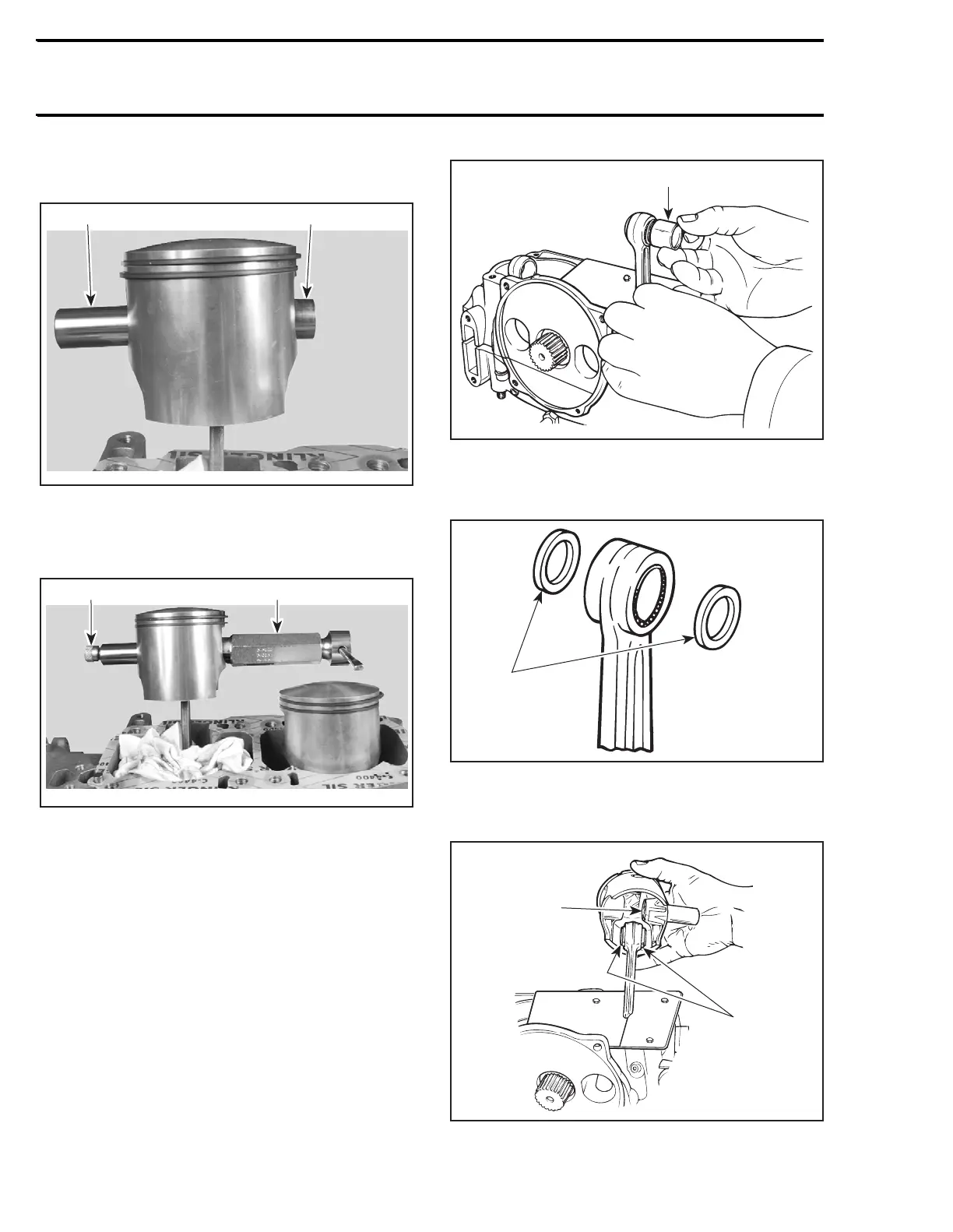

– Install the shoulder sleeve tool on the opposite
side of the piston pin.
1. Piston pin
2. Shoulder sleeve
– Insert extractor spindle into the piston pin,
screw on extracting nut.
1. Puller installed on the opposite side of the piston pin
2. Tighten extracting nut
– Rotate handle to pull piston pin carefully into the
piston.
Plastic Mounting Device Method
This is an alternate method when no service tool
is available.
Replacement roller bearings are delivered in a con-
venient plastic mounting device. For installation,
proceed as follows:
– Align replacement roller bearing with connect-
ing rod bore.
– Carefully push inner plastic sleeve into connect-
ing rod bore; outer plastic ring will release rollers.
1. Outer ring removal after inner sleeve insertion into bore
– Make sure thrust washers are present each
side of rollers.
1. Thrust washer each side
– Insert piston pin into piston until it comes flush
with inward edge of piston hub.
1. Piston pin flush here
2. Thrust washers
F01D0QA
1
F01D0VA
1
F01D0RA
1
2
