Program each item as follows:
• CHANNEL# (Use the selective entry)
Channel number (0 through 4)
When you program as “0”, no RS-232C channel is assigned.
• BAUD RATE (Use the selective entry)
Transmission speed (baud rate)
19200 bps/9600 bps/4800 bps
• DATA BITS (Use the selective entry)
Data bit: 7 bits/8 bits
• PARITY (Use the selective entry)
Parity bit: NON/ODD/EVEN
• STOP BIT (Use the selective entry)
Stop bit: 1 bit/2 bits

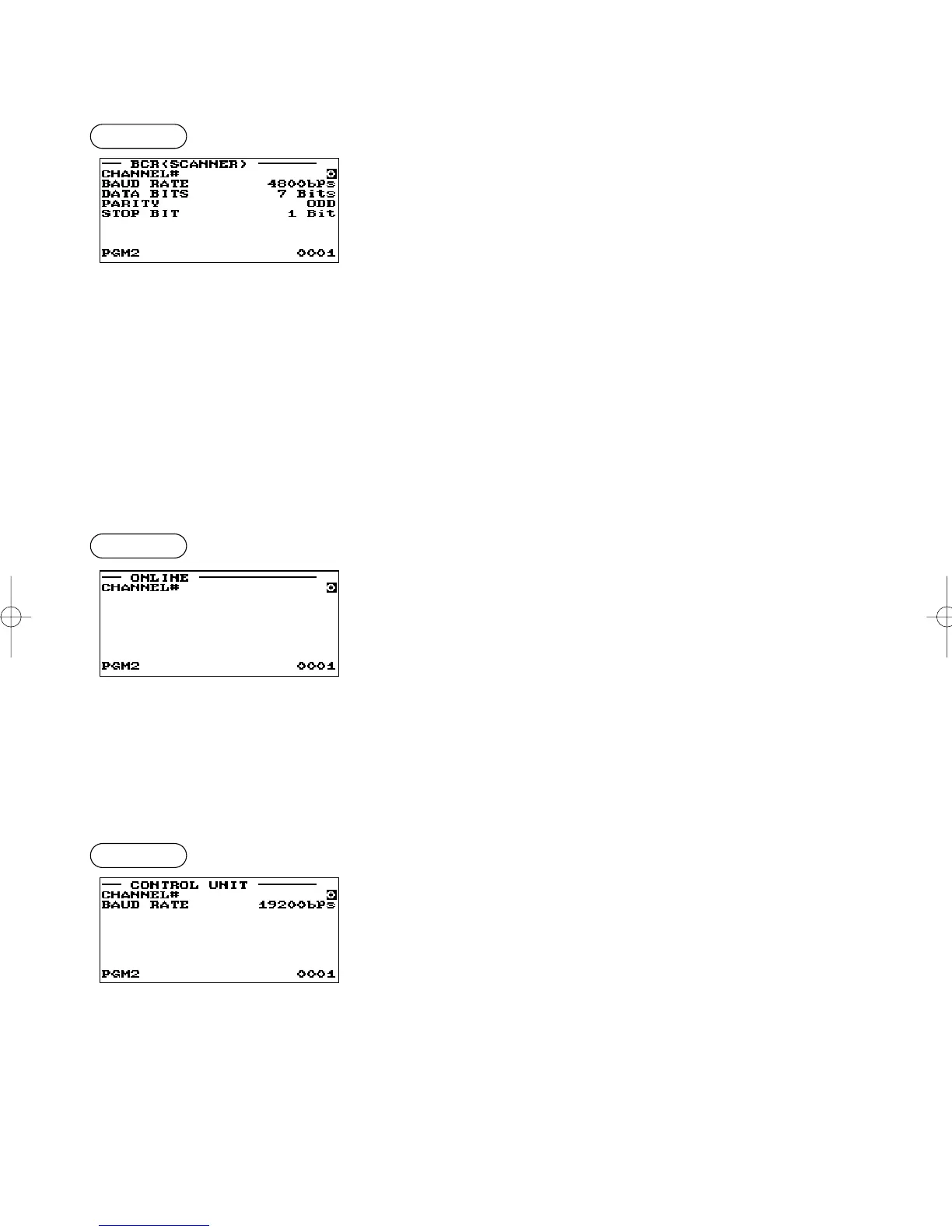

■ Scanner
Procedure
Program each item as follows:
• CHANNEL# (Use the numeric entry)
Channel number (1 through 4)
When you program as “0”, no RS-232 channel is assigned.
■ On-line
Procedure
Program each item as follows:
• CHANNEL# (Use the selective entry)
Channel number (0 through 4)
When you program as “0”, no RS-232C channel is assigned.
• BAUD RATE (Use the selective entry)
Transmission speed (baud rate)
38400 bps/19200 bps/9600 bps
■ Control unit (only available in specific countries)
Procedure
ER-A280F_N(SEEG)(E)-7 09.6.18 6:55 AM Page 146

Sharp ER-A280F Specifications

General

Types of payment	Cash
Keyboard number of keys	70
Supported paper width	58 mm
RS-232 ports	4
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	365 mm
Width	330 mm
Height	225 mm
Weight	9000 g
