Sharp ER-A280F User Manual

150
▼

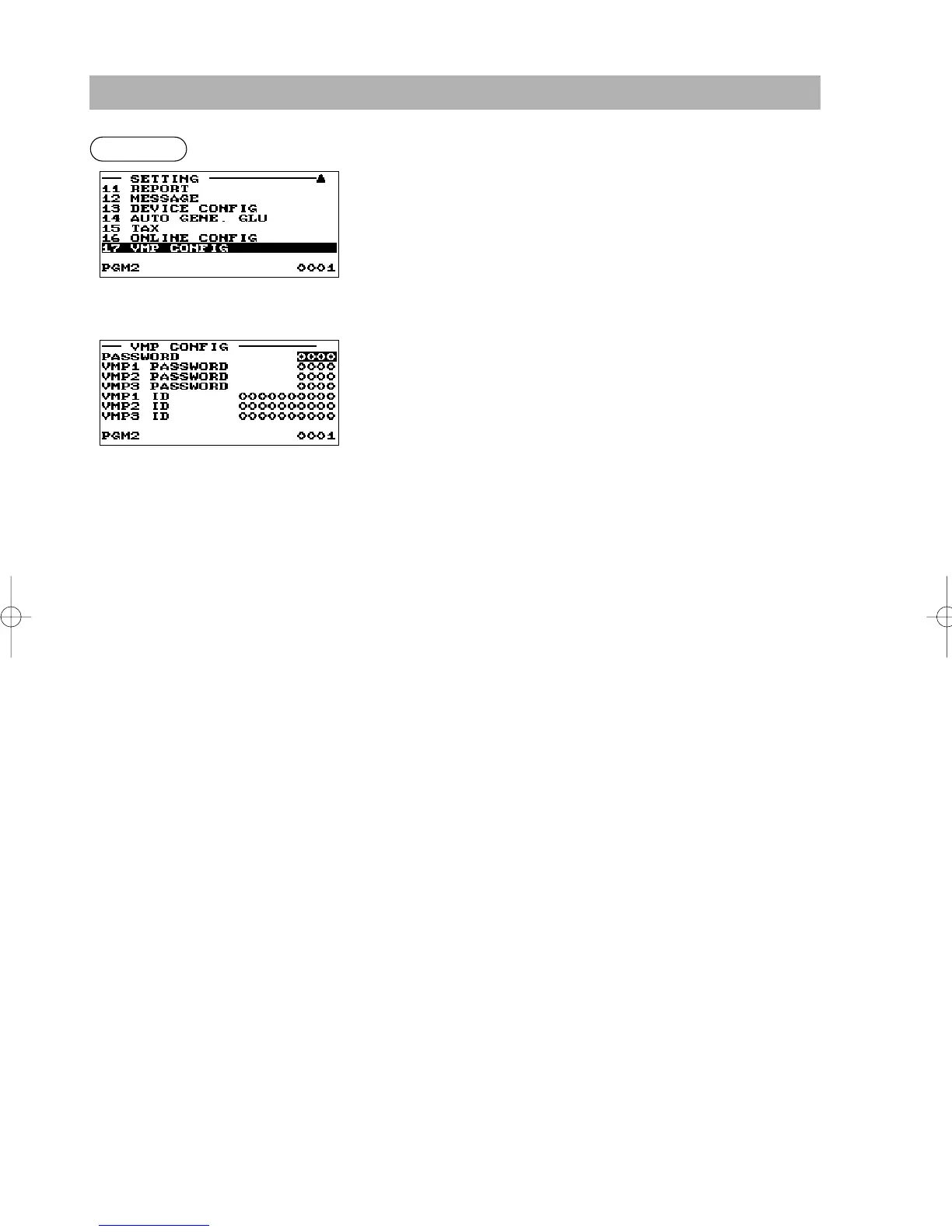

VMP Configuration Programming
To program the VMP configuration, select “17 VMP CONFIG” in
the SETTING window.
Program each item as follows:
• PASSWORD (Use the numeric entry)
Normal password (0 through 9999)/”0”: No password
• VMP1 PASSWORD (Use the numeric entry)
VMP1 password (0 through 9999)/”0”: No password
• VMP2 PASSWORD (Use the numeric entry)
VMP2 password (0 through 9999)/”0”: No password
• VMP3 PASSWORD (Use the numeric entry)
VMP3 password (0 through 9999)/”0”: No password
• VMP1 ID (Use the numeric entry)
VMP1 ID (max. 10 digits)
• VMP2 ID (Use the numeric entry)
VMP2 ID (max. 10 digits)
• VMP3 ID (Use the numeric entry)
VMP3 ID (max. 10 digits)
Procedure
ER-A280F_N(SEEG)(E)-7 09.6.18 6:55 AM Page 150

Sharp ER-A280F Specifications

General

Types of payment	Cash
Keyboard number of keys	70
Supported paper width	58 mm
RS-232 ports	4
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	365 mm
Width	330 mm
Height	225 mm
Weight	9000 g
