114 DUSTHUNTER T · Operating Instructions · 8012428 V 2.0 · © SICK MAIHAK GmbH Germany
Specifications

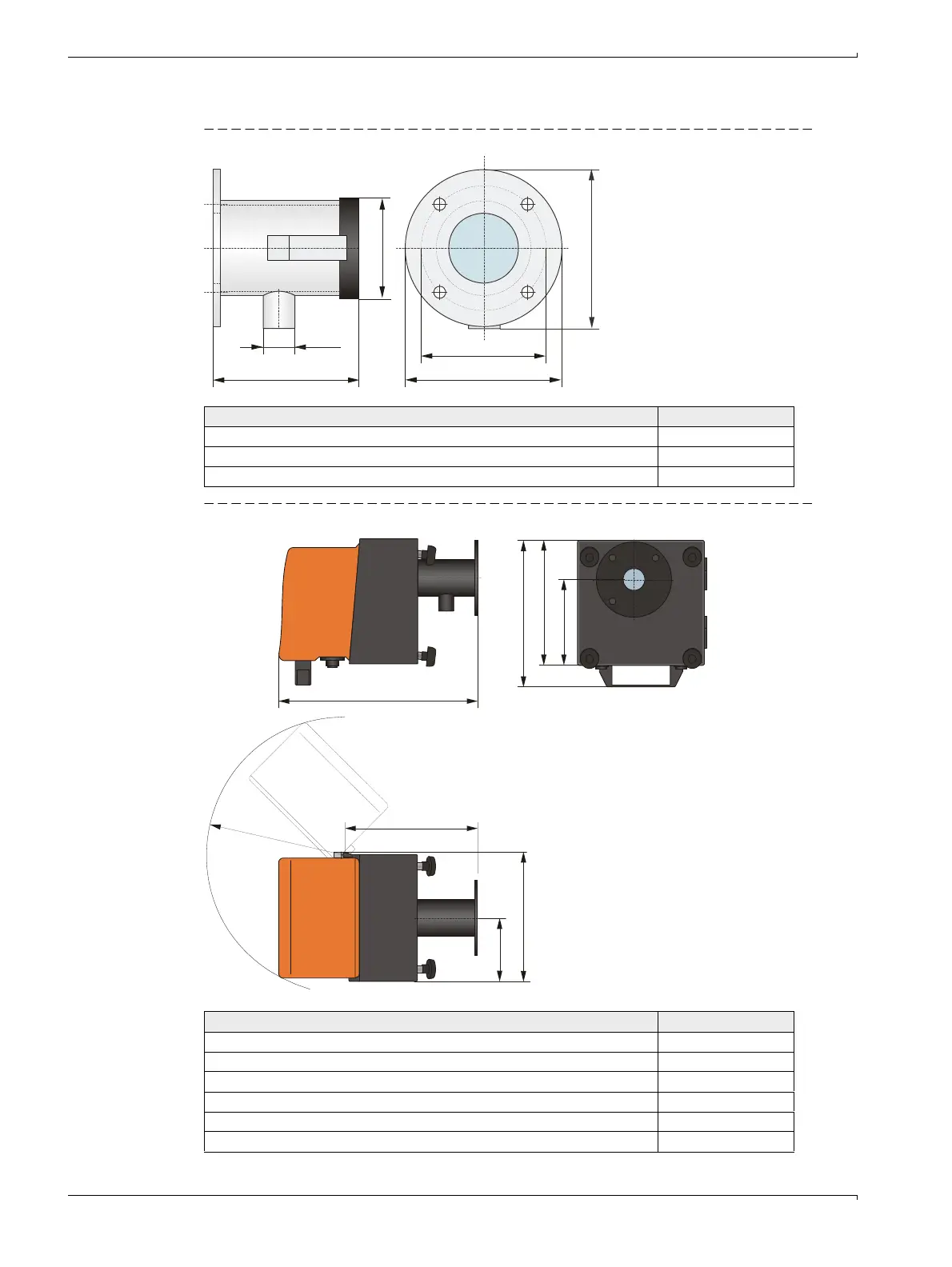

7.2.2 Reflector
Bild 87 Reflector DHT-R5x
Figure 88 Reflector DHT-R0x, DHT-R1x
128
116
Ø 100
Ø 126
Ø 80
Ø 25
Name Part number
Reflector DHT-R50 1029495
Reflector DHT-R51 1029715
Reflector DHT-R52 1040169
341
250
205
140
104
212
r
=
2
4
0
220
Name Part number
Reflector DHT-R00 1043905
Reflector DHT-R10 1043906
Reflector DHT-R01 1043907
Reflector DHT-R11 1043908
Reflector DHT-R02 1044093
Reflector DHT-R12 1044244
