Start-up and Parameter Settings
– Onsite installation of a "zero tube" (tube with suitable diameter with flanges)

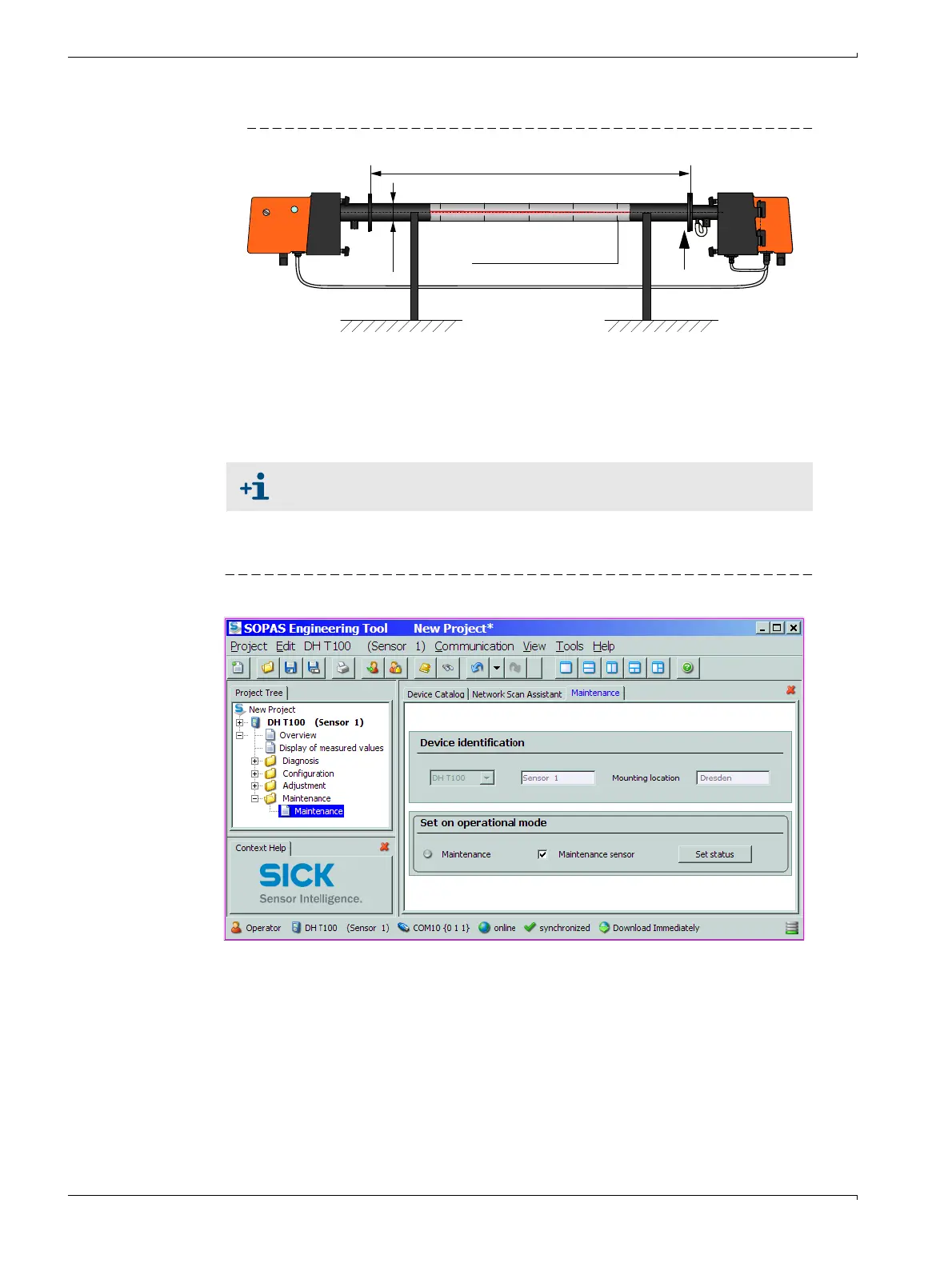

Figure 42 Creating a smoke-free path with a zero tube
b
Start the SOPAS ET program and connect to the measuring system (
→
p. 52, §4.1.3).
b
Select the appropriate type for the installed device (DH T50, DH T100, DH T200) and
move it to the "Project tree“ window (
→
p. 55, §4.1.4).
b
Set the sender/receiver unit to "Maintenance" mode and enter the Level 1 password (
→
p. 55, §4.1.4).
Figure 43 Setting "Maintenance" mode
b
Clean the optical surfaces on sender/receiver unit (
→
p. 92, §5.2.1 and
→
p. 95, §5.2.2).
b
Wait approx. 30 min before starting the following work (measuring system must be in
operation conditions).
A
Ø76
X: Dimensions between flange and tube according to
reflector type
Antiglare slat X
The respective device type connected is displayed automatically
