Start-up and Parameter Settings
4.5 Setting the Interface module parameters
4.5.1 General information
The following steps are necessary to select and set the optionally available Interface
modules Profibus DP and Ethernet:
b Select device file "MCU", set the measuring system to "Maintenance" mode and enter
the Level 1 password (
→ p. 55, §4.1.4).
b Switch to the "Configuration / System Configuration“ directory.
The Interface module installed is shown as "Serial Extension Module“.
b Configure the Interface module according to requirements.

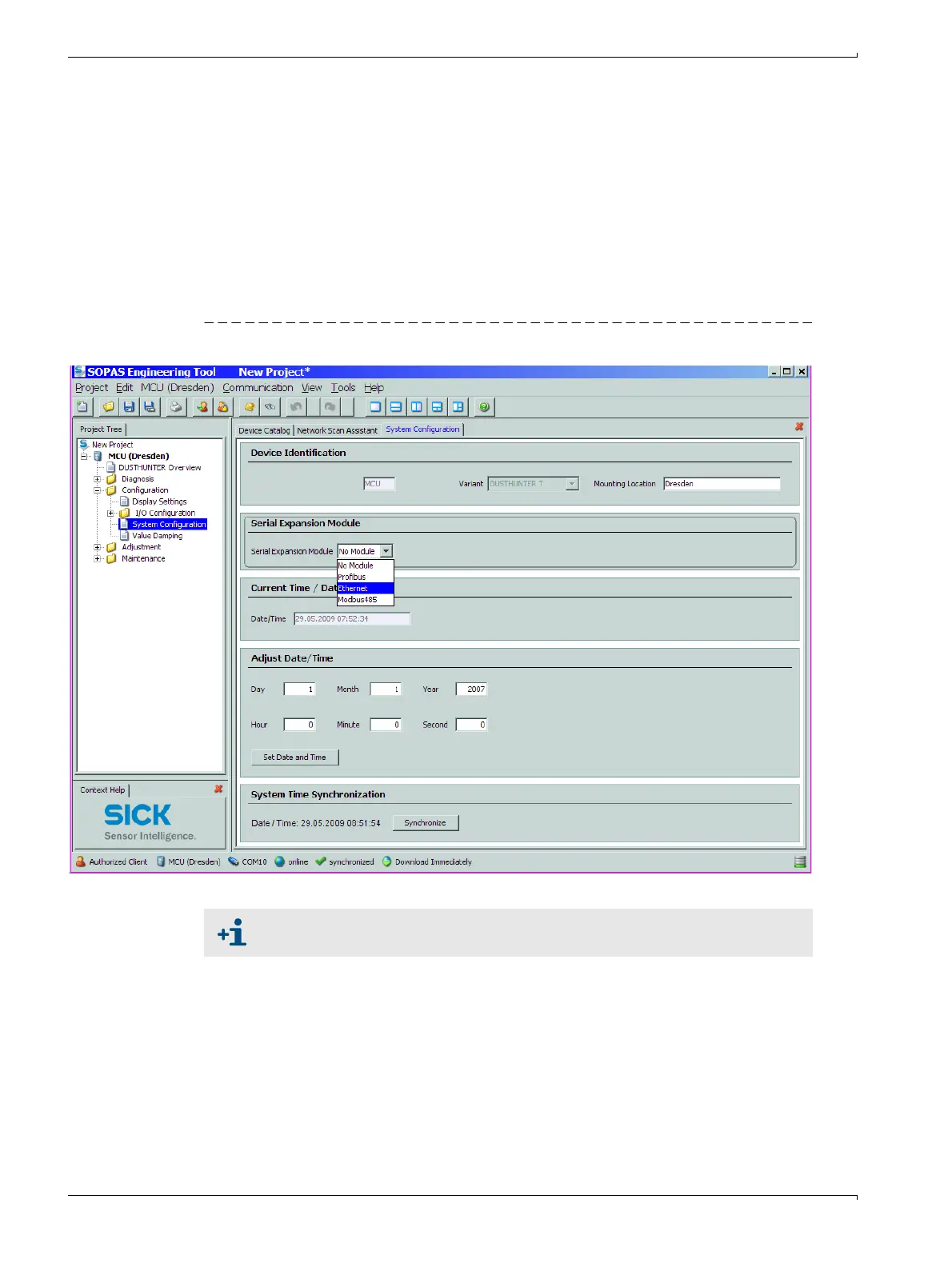

Figure 62 "Configuration / System Configuration“ directory
GSD file and measured value assignment are available for the Profibus DP
module on request.
