Maintenance
b Removethe swivel plate cover (1), press the tension spring (2) and take the swivel plate
(3) off the axis (4).
b Carefully clean glass pane (5) (both sides) and reflector optics (6) with an optics cloth.

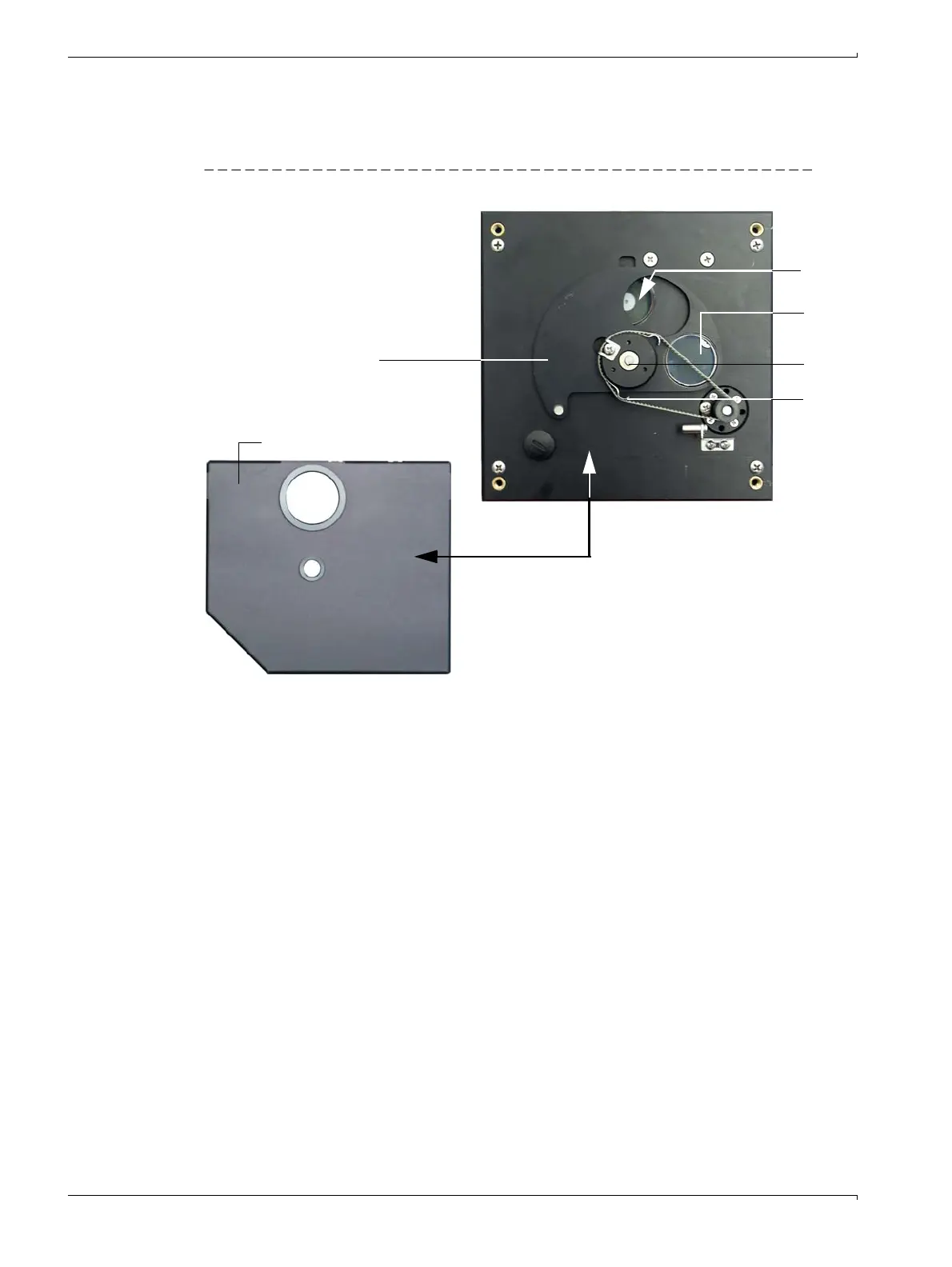

Figure 78 Cleaning the optical surfaces on the reflector
b Lay the toothed belt on the drive axis, press the the tension spring and push the swivel
plate back onto the axis.
b Put the swivel plate cover back on, swivel the housing back in and lock in with the
knurled screws.
b Move the swivel plate back into the measuring position. To do this, click "Measurement"
in the "Adjustment / Manual adjustment / Motor control“ directory (
→ p. 93, Fig. 75).
b Switch to operation mode.
3
6
5
4
2
1
