9 ANNEX
188
8017768/12AX/2019-05-31|SICK
OPERATING INSTRUCTIONS | TIC
Subject to change without notice

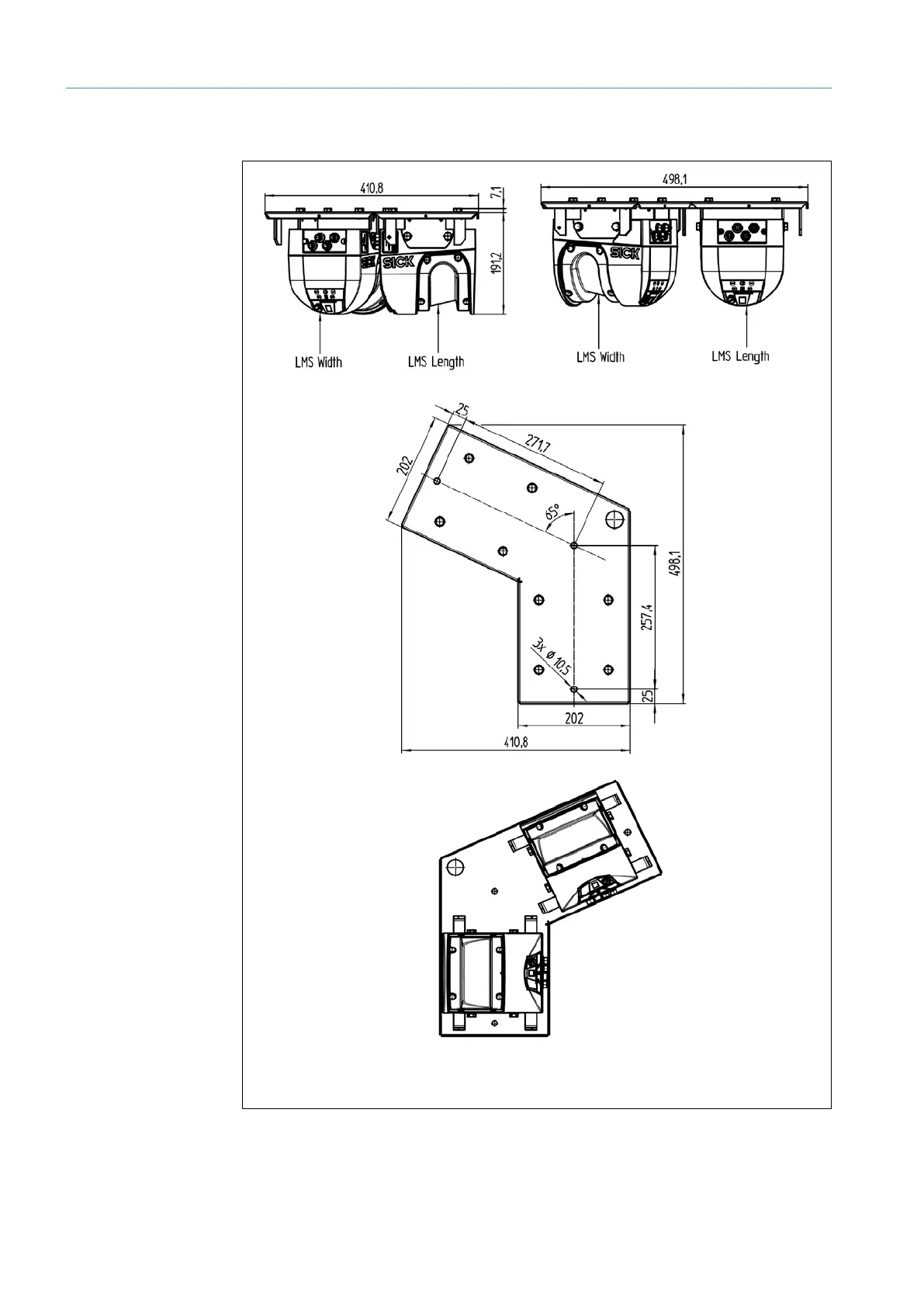

9.2.2 Dimensional drawings for the TIC502
Fig. 105: TIC502 dimensional drawings
