3 SYSTEM DESCRIPTION
22
8017768/12AX/2019-05-31|SICK
OPERATING INSTRUCTIONS | TIC
Subject to change without notice
Master and slave
The TIC502 system function is available in the master and slave versions.
A TIC502 Master consists of the LMS511 type 2D LiDAR sensors mounted on the
mounting plate and a separate Traffic Controller. The Traffic Controller is installed in a
control cabinet at the customer site. A TIC502 Slave contains only the two 2D LiDAR
sensors fastened on a metal plate.
A TIC502 Slave can only be operated with a TIC502 Master or via an external Traffic
Controller as an OEM variant (see chapter 3.2.5 Traffic Controller FPS as OEM variant).
For more information on OEM variants, please contact your local SICK agency.

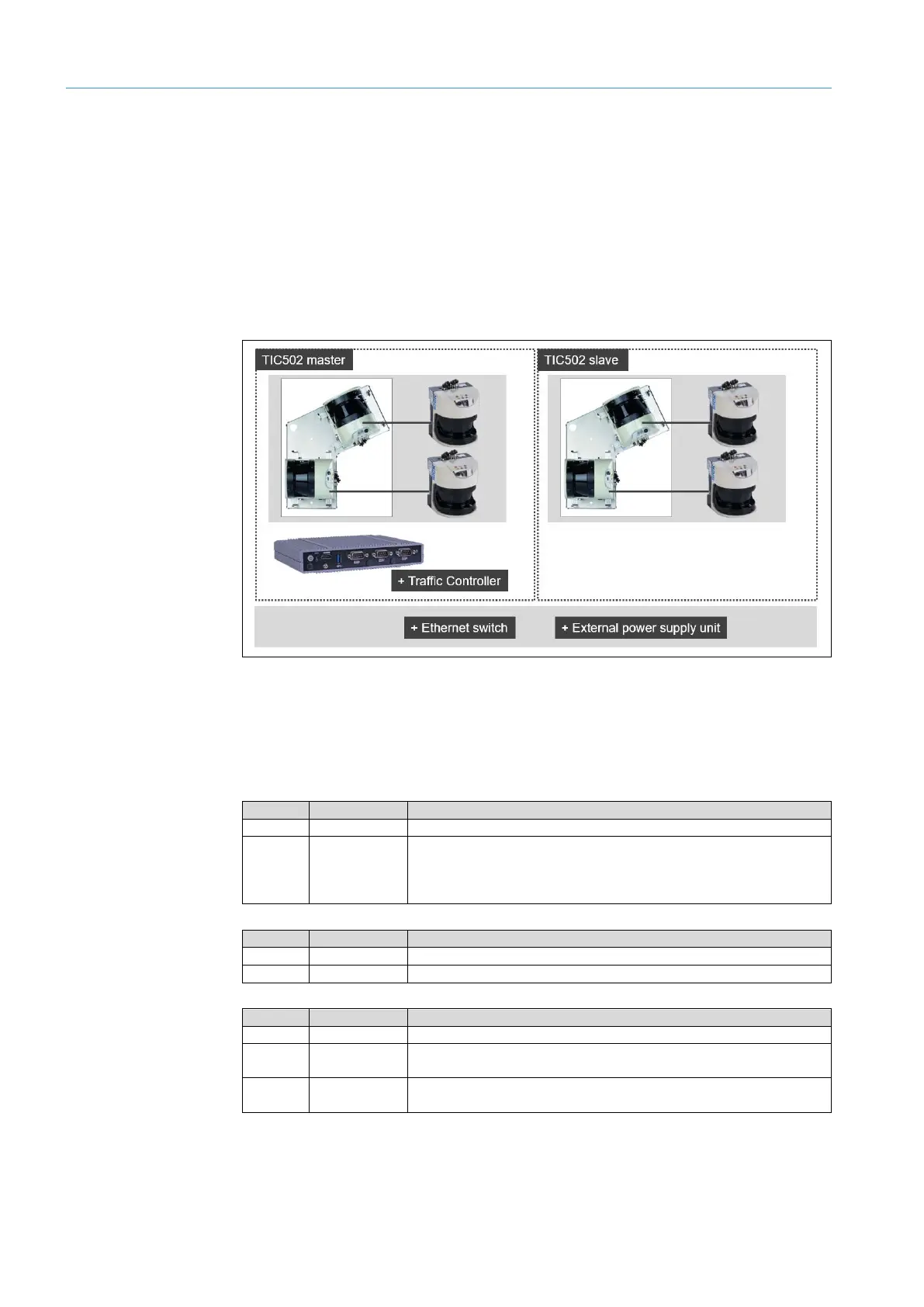

Fig. 7: System components – TIC502 Master/TIC502 Slave
The customer will also require an Ethernet switch and a power supply unit for the voltage
supply.
Scope of delivery, TIC502
Quantity
Part No.
Description
1
1085137
TIC502 master
The TIC502 with 2 integrated LMS511 SE 2D LiDAR sensors and a
separate Traffic Controller with TIC software.
USB stick with TEMS analyzer, TEMS info sample client, source code
for TEMS info sample client, and operating instructions
Quantity
Part No.
Description
1-3
1085138
TIC502 slave
TIC502 with 2 integrated LMS511 2D LiDAR sensors.
Quantity
Part No.
Description
1-4
6050687
Voltage supply (20 m) connecting cable for the LMS511 SE
1-4
6050685
Ethernet cable (20 m) for connecting the 2D LiDAR sensors to the
Ethernet switch
1
6026083
Ethernet cable (3 m) for connecting the Ethernet switch
and the Traffic Controller
Note
Supplementary
components
Accessories
