SIEB & MEYER CNC 61.00 User Manual

:
Functional Description of the Connectors/Interfaces
CNC 61.00 Hardware Description CNC 0610510/12 53

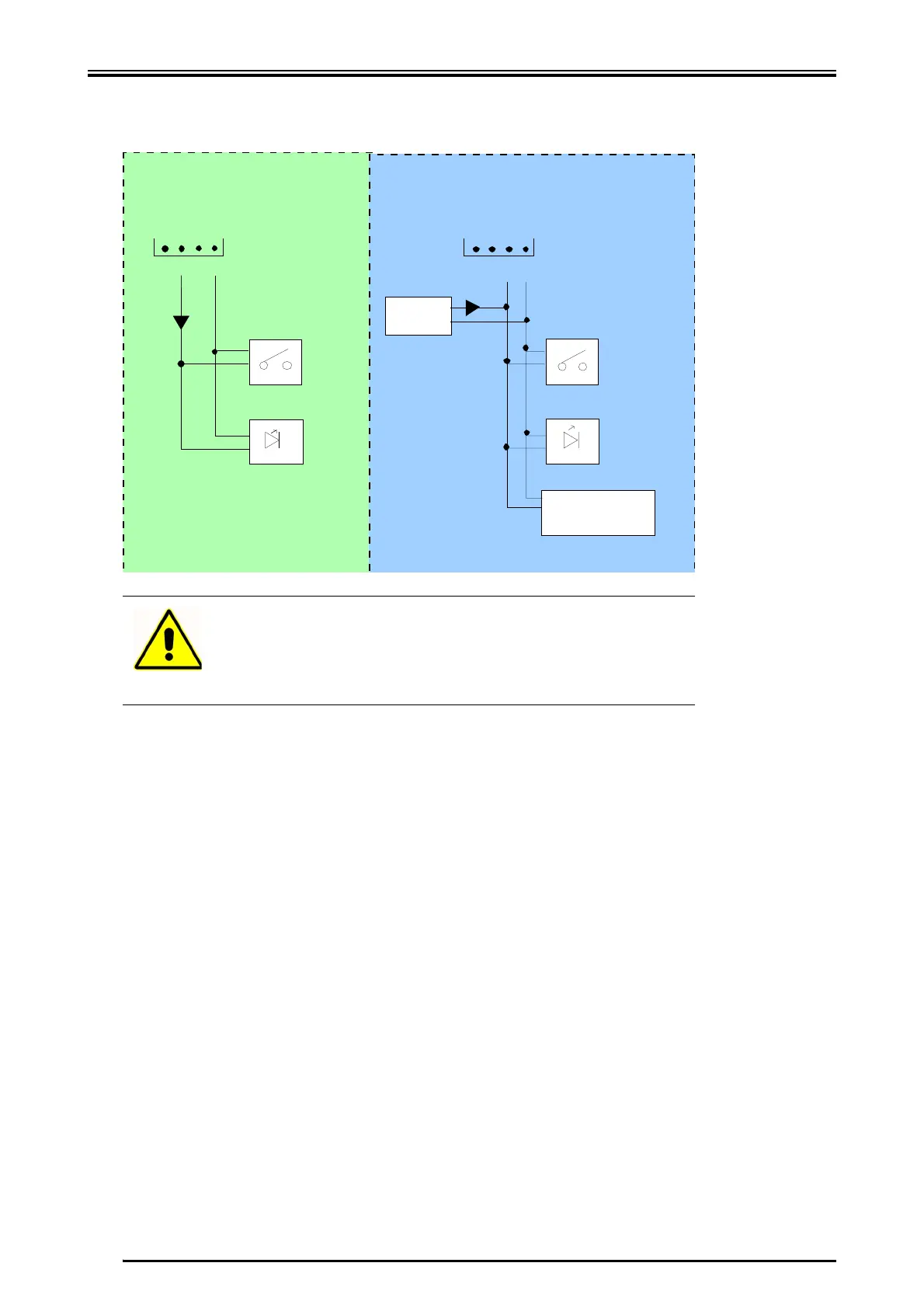

Wiring of 24 V (internal/external)
Warning
The supply voltage of 24 V of the connectors for the internal inputs
and outputs may only be used for supplying thermal contacts, LEDs,
switches or similar components.
Never connect the lines of 24 V of the individual axes!
24 V internal 24 V external
21 22 23 24
max.
350 mA
Relay
LED
Thermal
Contact
24 V
int.
24 V
ext . 0 V
Relay
Supply voltage for
the incremental
encoder
24 V
Power Supply
LED
Thermal
Contact
24 V
int.
24 V
ext . 0 V
21 22 23 24
