Option Modules
:
78 Hardware Description CNC 0610510/12 CNC 61.00

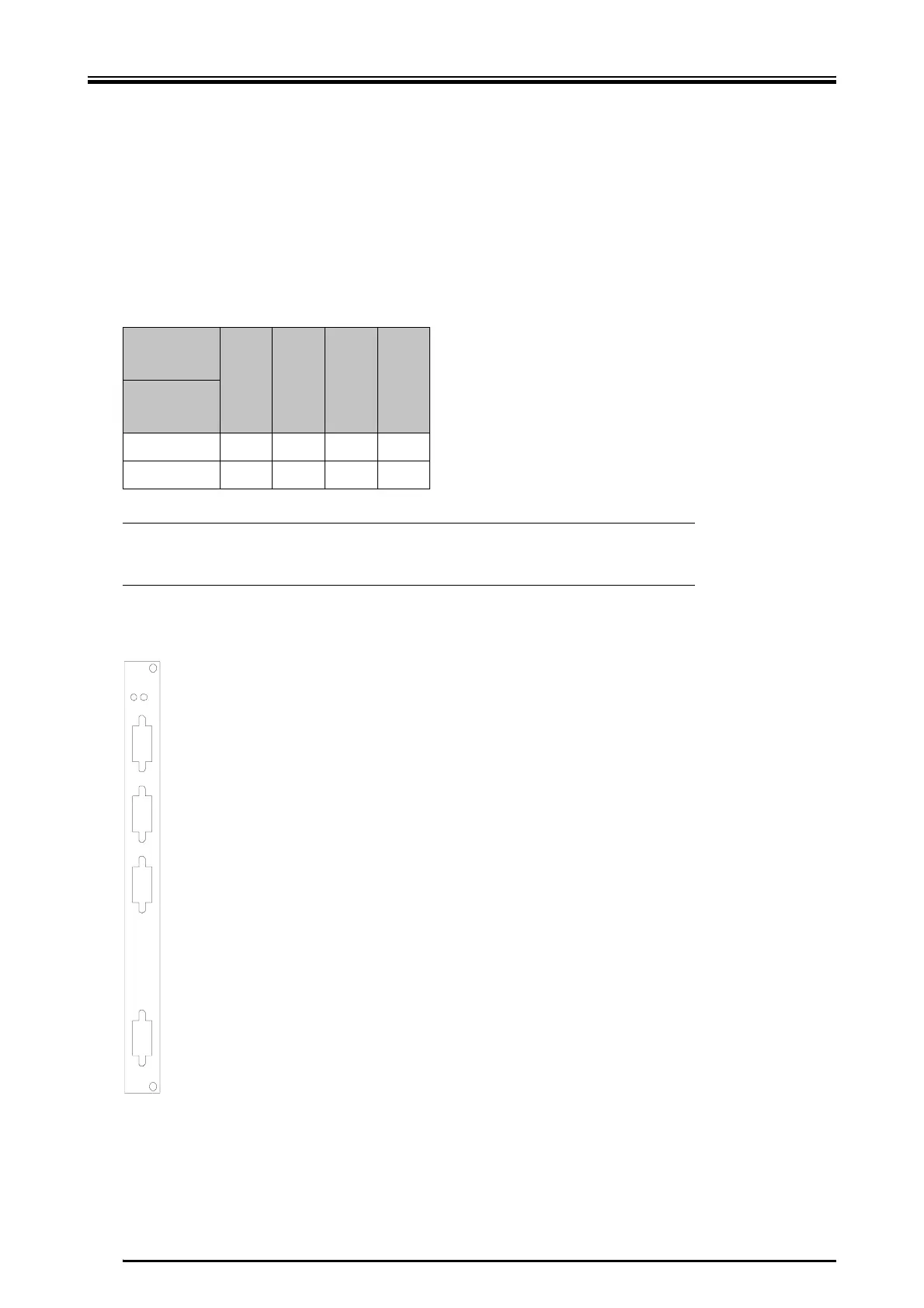

10.2 Option Module 061020044X
The option module 061020044X can comprise the following functionality and/or their
combinations:
X one analog input (12 bits resolution, ± 10 V input voltage)
X two independent analog inputs (12 bits resolution, ± 10 volts output voltage)
X one reference voltage source (10 volts, max. 20 mA load)
X PROFIBUS interface
The following table shows the connections provided on the different variants.
On the front panel of the option module, only the connections required for the respec-
tive variant are provided.
Option
PROFIBUS Reference voltage source 1 analog Input 2 analog Inputs
Variant
61020044 A x x x
61020044B x x x x
L
Please take into account that a later upgrading of the option modules
won't be possible.
LEDs
X17
X18
Analog outputs, page page 79
X19
X10
Analog input, page page 80
PROFIBUS connection, page page 80
X17
X18
X19
X10
PB
