Option Modules
CNC 61.00 Hardware Description CNC 0610510/12 79
10.2.1 X17/X18 - Analog Output 1/2
This option provides two output voltages independent of each other on X17 and X18.
The output voltage can be controlled by the application program via a resolution of
12 bits from –10 volts to +10 volts.

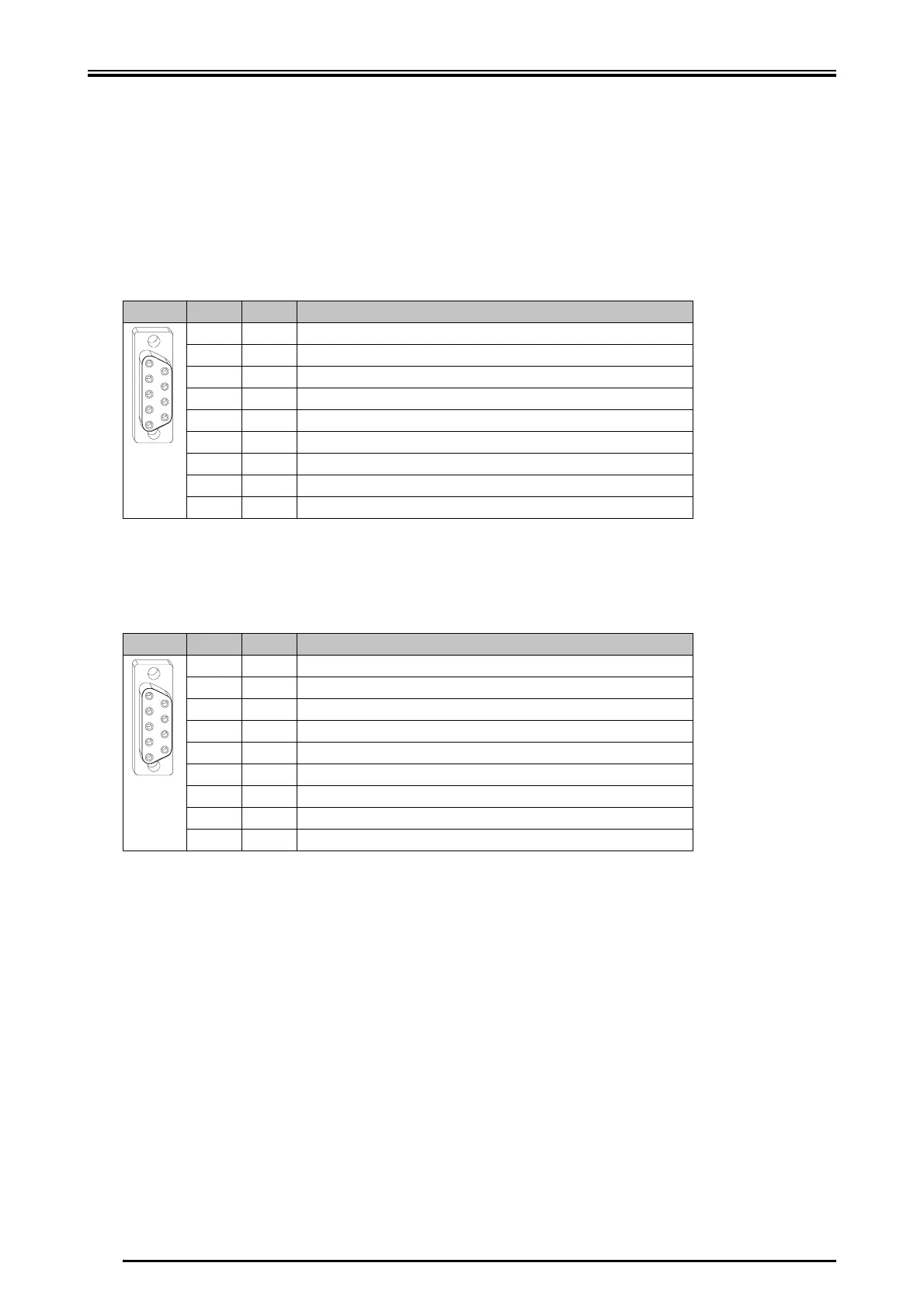

X18 - Analog Output 1
X 9-pole female Submin D connector
X17 - Analog Output 2
X 9-pole female Submin D connector
Pin I/O Function
1 O Analog output 1
2
3
4
5
6
7
8
9 AGND (reference ground for analog output 1)
Pin I/O Function
1 O Analog output 2
2
3
4 Reference voltage +10 V
5
6
7
8
9 AGND (reference ground for analog output 2)
1
5
6
9
1
5
6
9
