SIEB & MEYER CNC 61.00 User Manual

:
Functional Description of the Connectors/Interfaces
CNC 61.00 Hardware Description CNC 0610510/12 59

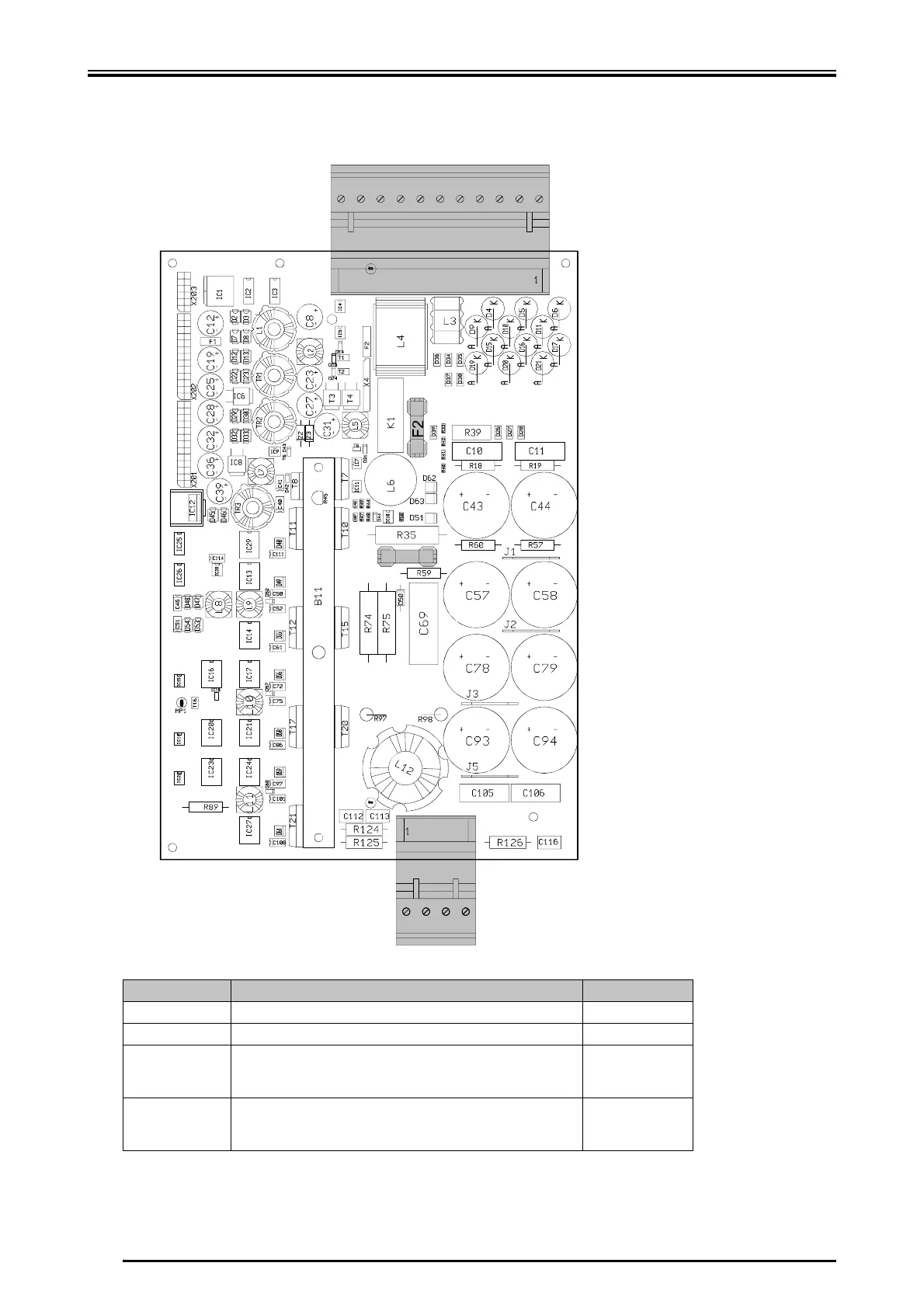

8.4 Layout Plan of the Output Stage 036050001
Designation Meaning Description
X30 power supply page 49
X20 motor phases page 48
F1 fuse for the internal ballast circuit, 1.6 A semi time-lag fuse.
When using an external ballast resistor this fuse must be re-
moved.
F2 fuse for the logic supply, 1 A semi time-lag fuse (0360510 SC
+ SF); 0.63 A semi time-lag fuse (0360510 DC + DF + EC +
EF).
Rex
+UB -UB
-UB LL2
LL1
PE
L3
L2 L1
11
1
X30
X20
F1
UVWPE
+UB
