Appendix
S7-300 Programmable Controller Hardware and Installation
A5E00105492-01
11-11
• Provide a large-surface and low-impedance metal-to-metal connection for
fastening the shielding/protective conductor busbar.
• Always touch-protect live mains conductors.
The figure below shows an example of EMC compatible wall-mounting of an S7.

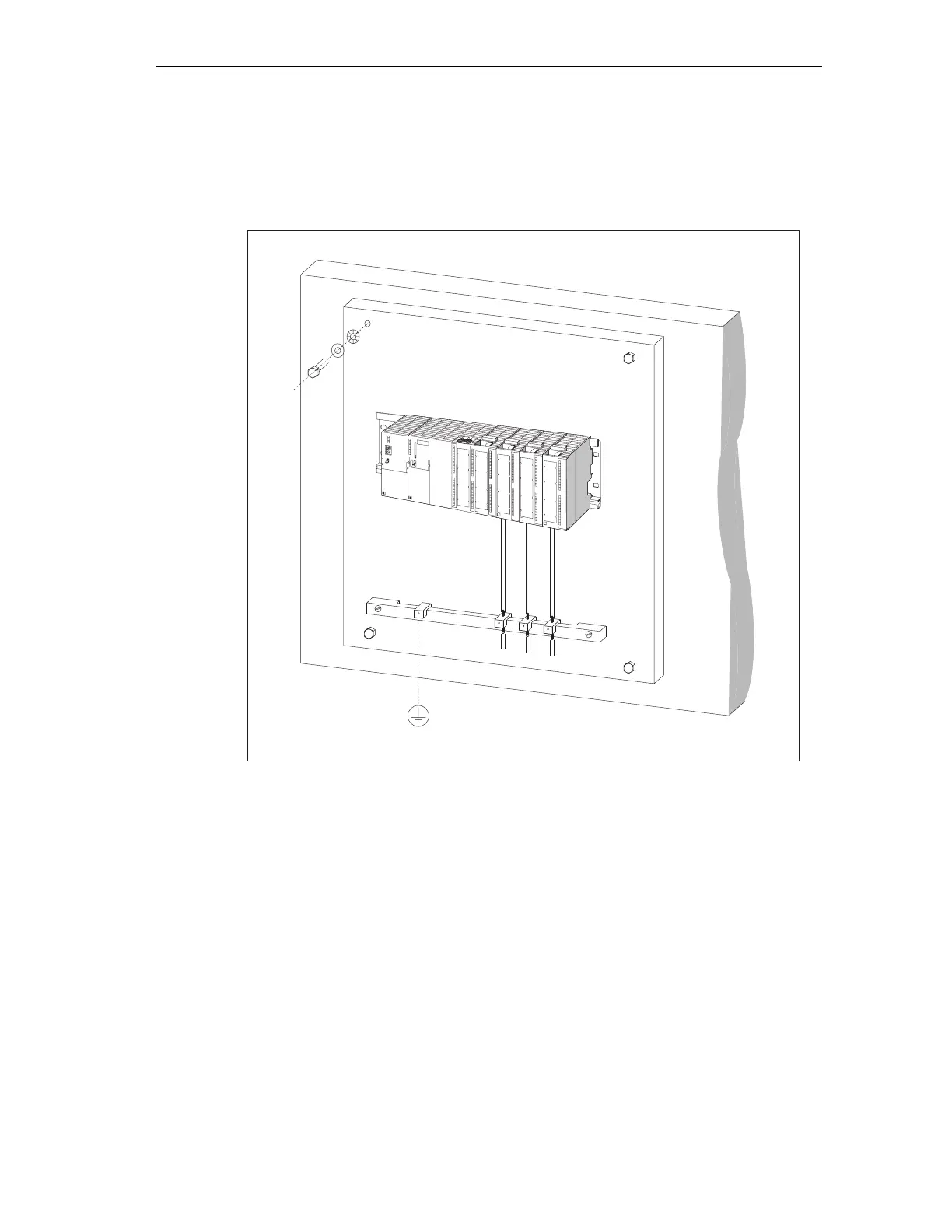

Figure 11-3 Example of EMC compatible wall-mounting
