Wiring
S7-300 Programmable Controller Hardware and Installation
A5E00105492-01
6-15
1
2
2
Shield must be under
shield terminal clamp.

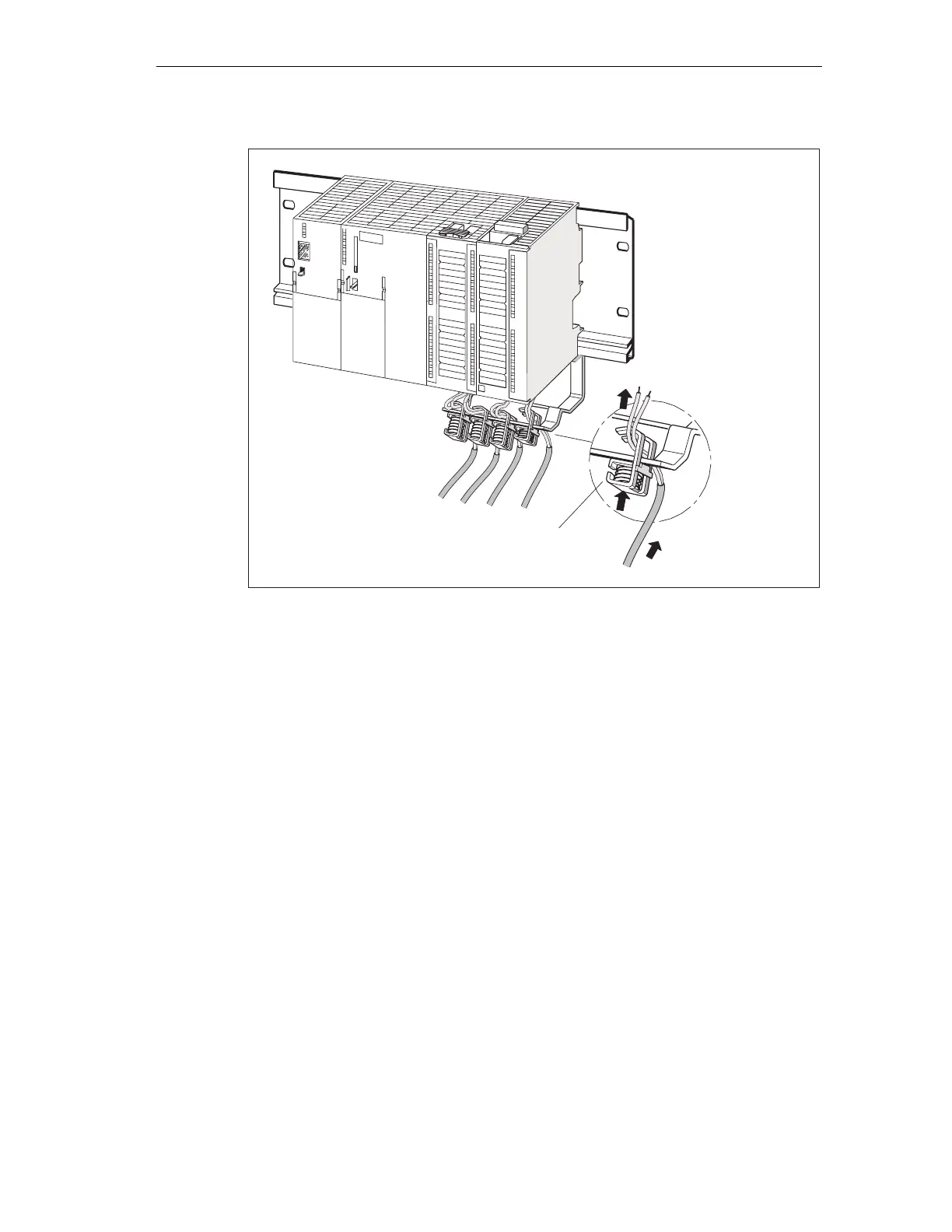

Figure 6-7 Connecting 2-wire cables to the shielding contact element
Tip:
For your connection to the front connector, leave a sufficient cable length behind
the shielding terminal. This allows you to disconnect the front connector, e.g. for
repairs, without having to open the shielding contact element.
