Configuring
S7-300 Programmable Controller Hardware and Installation
A5E00105492-01
4-5
• Width of the shielding terminal module: 80 mm
• Mountable shielding terminals per shielding terminal module: max 4
Table 4-3 Shielding terminals - Overview
Cable with shielding diameter Shielding terminal Order
No.
Cable shielding diameter 2 mm to 6 mm 6ES7 390–5AB00–0AA0
Cable shielding diameter 3 mm to 8 mm 6ES7 390–5BA00–0AA0
Cable shielding diameter 4 mm to 13 mm 6ES7 390–5CA00–0AA0
1
2
2
Shield must be under
shield terminal clamp.

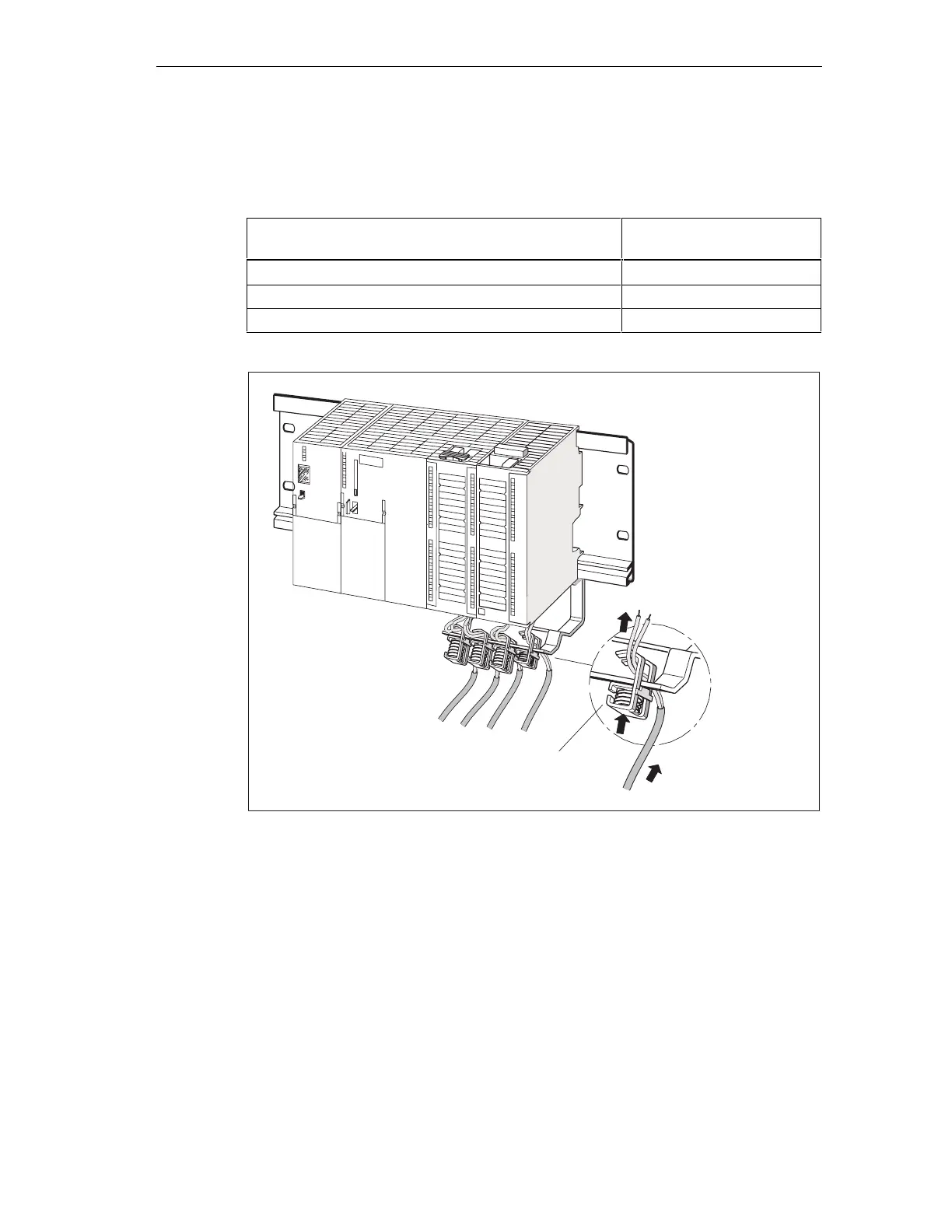

Figure 4-2 Shielding terminal module
