Electrical ratings:
24 VDC
15mA (no energized relays)
Add: 18.7mA per energized relay
(75mA - all relays energized)
CRM-4 Connections and Ratings
4 - 13

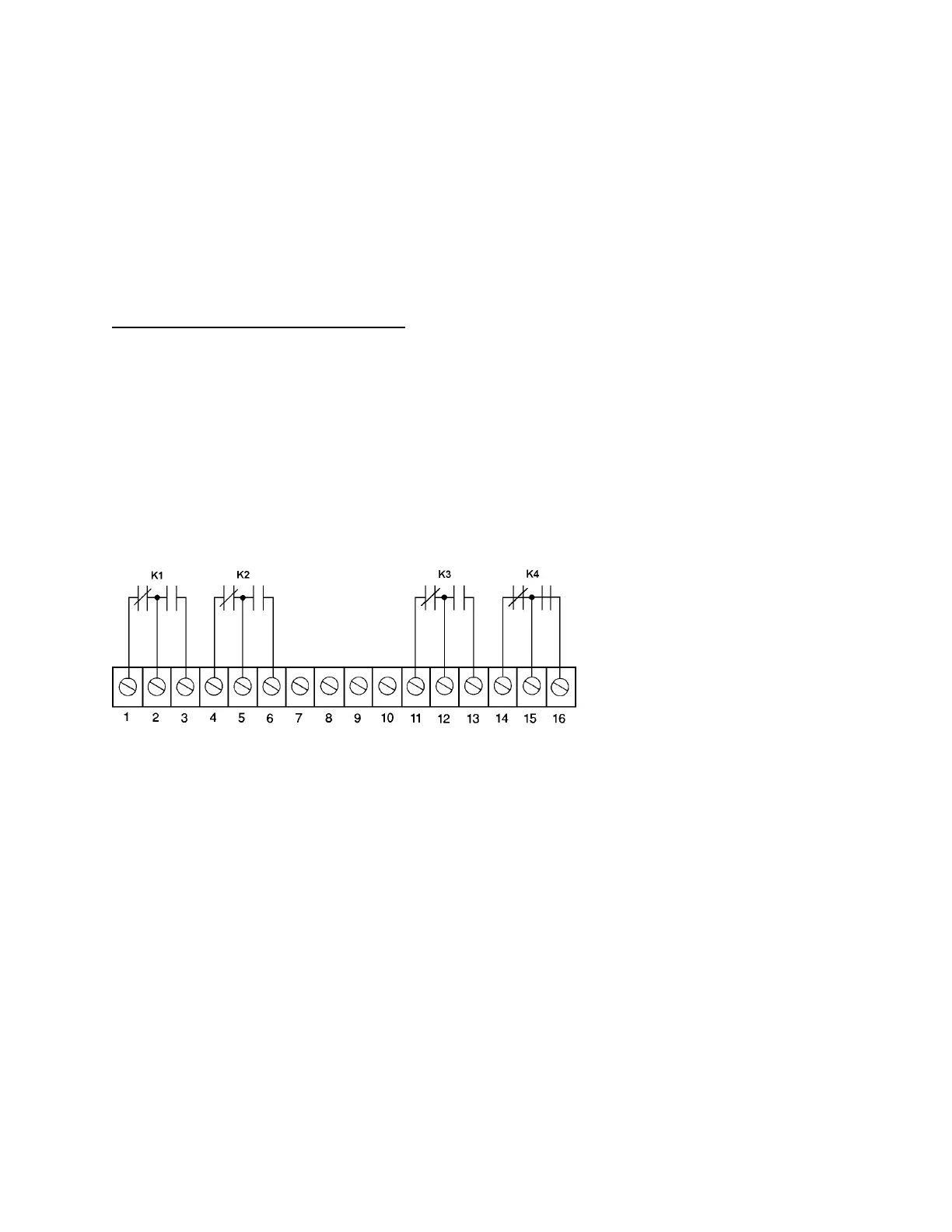

CRM-4 Relay Wiring
NOTES
1. Contact rating: 2A,
30VDC/120 VAC
resistive.
2. Use only with power
limited / Class 2
circuits.
3. Coils are supervised
when de-energized.
4. Contacts are not
supervised.
5. All relay contacts are
shown in normal
(de-energized) state.
MOM-4
(TB-1, TB-2, TB-3, or TB-4)
or
MOM-2
(TB2 or TB4)
