Electrical ratings:
RCC-1/-1F 14 to 31 VDC,
80mA max
Battery current 75mA
RCC-1/-1F 14 to 31 VDC,
with PIM-1 100mA max
Battery current 95mA
RCC-1/-1F Connections and Ratings
4 - 87

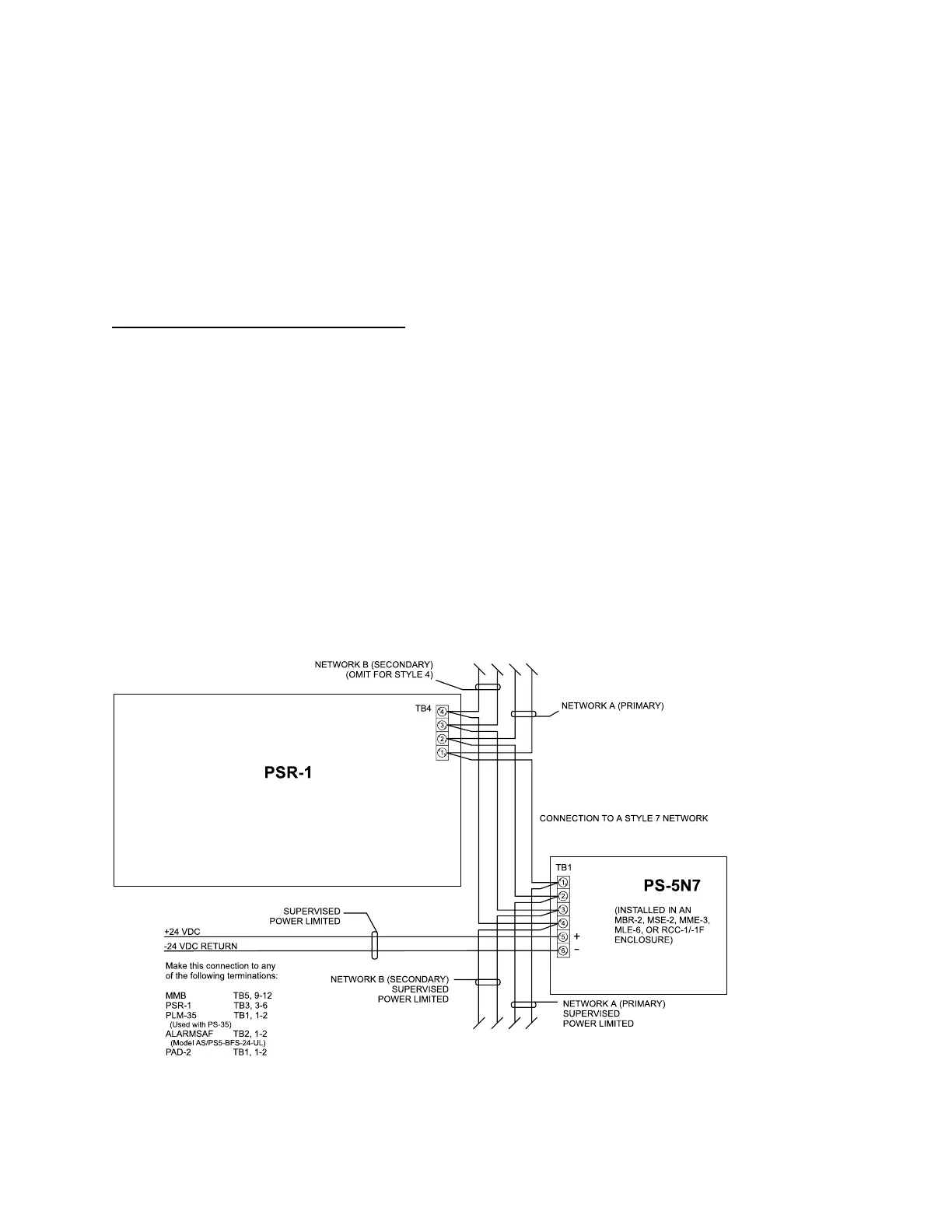

PS-5N7 Power Supply and Network Wiring Diagram in RCC-1/-1F Enclosure
NOTES
1. Power limited to
NFPA 70 per NEC 760.
2. Minimum wire size:
18 AWG.
3. Maximum resistance:
80 ohms per pair of
wires for the network
connections.
4. Use shielded twisted
pair for network
connections.
5. Terminate the shield
ONLY at the MMB
enclosure.
6. Eliminate all Network
B wiring for Style 4.
7. DO NOT place the
PS-5N7 at the end of
the network (Style 7
only).
All wiring must be in accordance with
Article 760 of NEC and the local
building codes.
