1-23
Description
push-button switch has two LEDs to
indicate its status, for a total of 16
LEDs. A label next to each switch
indicates the switchs programmed
usage.
Use the VSM-1 to manually select
speaker, telephone, or strobe zones,
as well as a wide range of general
system functions, such as ALL CALL,
ALL EVAC, Wardens Page, and Local
Speaker. Switch use and zone group-
ings are assigned in the CSG-M.
VLM-1 Voice LED Module
The VLM-1 Voice LED module
provides LED annunciation of system
activity. Each VLM-1 module contains
eight groups of two LEDs in three
different colors to indicate a variety of
system information, such as zone
trouble or alarm. Eight LEDs are either
red or green, the remainder are yellow.
A label next to each pair of LEDs indi-
cates its programmed use in the CSG-M.
VFM-1 Fan Control Module
VFM-1 Fan Control module provides the
system operator with automatic and
manual control and annunciation of
MXLV fan control functions for building
management. Each VFM-1 has four
three-position rotary switches with fan
control functions assigned to each of
them in the CSG-M. Each rotary switch
has three LEDs to indicate function and
trouble status for a total of 12 LEDs. A
label next to each switch indicates the
switchs programmed usage.

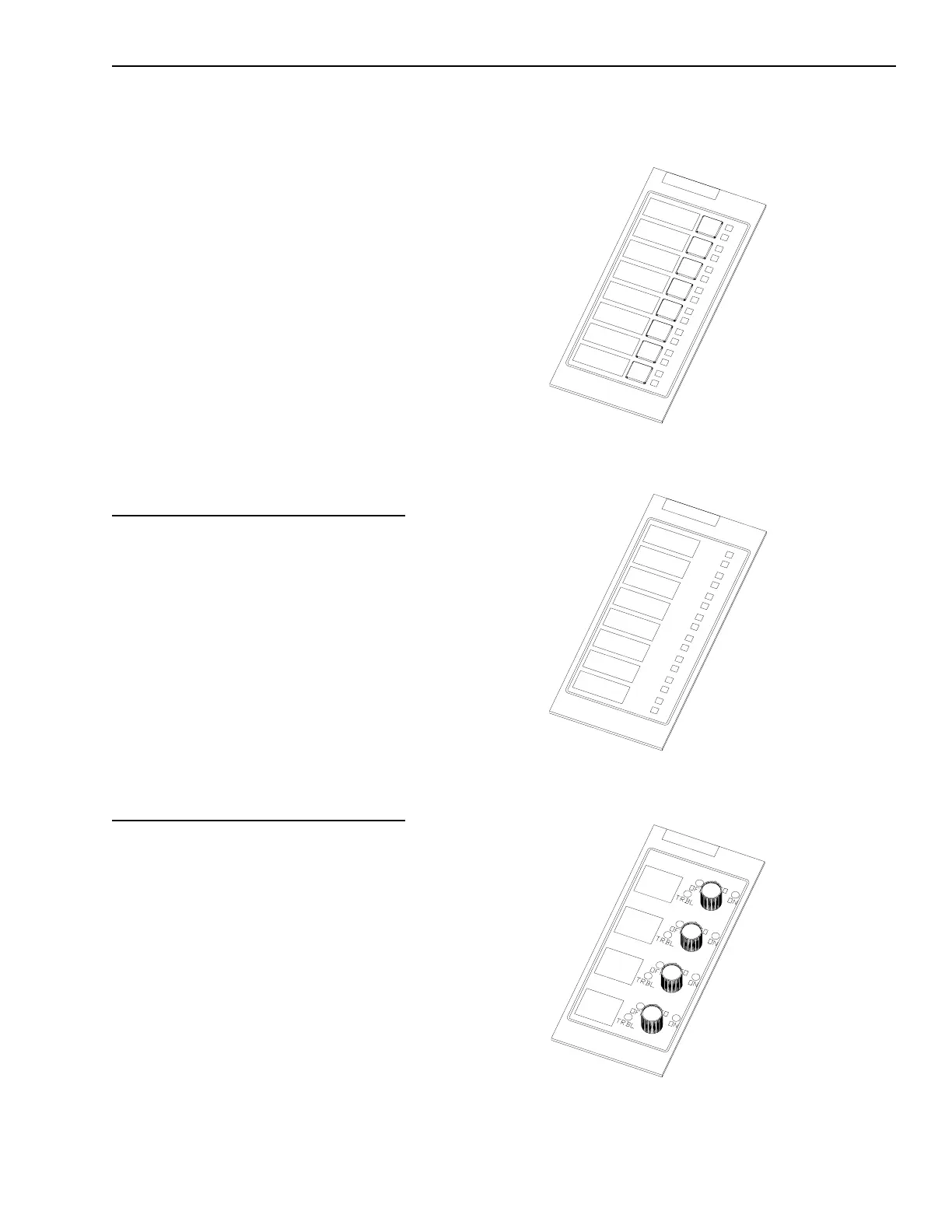

VSM-1 Voice Switch and LED Module
VLM-1 Voice LED Module
VFM-1 Voice Fan Module
