Electrical ratings:
5 VDC, 50mA
Auxiliary power supply input for
manual recording on bench only
(Use any UL listed 12 VDC
regulated power supply):
12 VDC, 50mA
DMC-1 Connections and Ratings
4 - 29

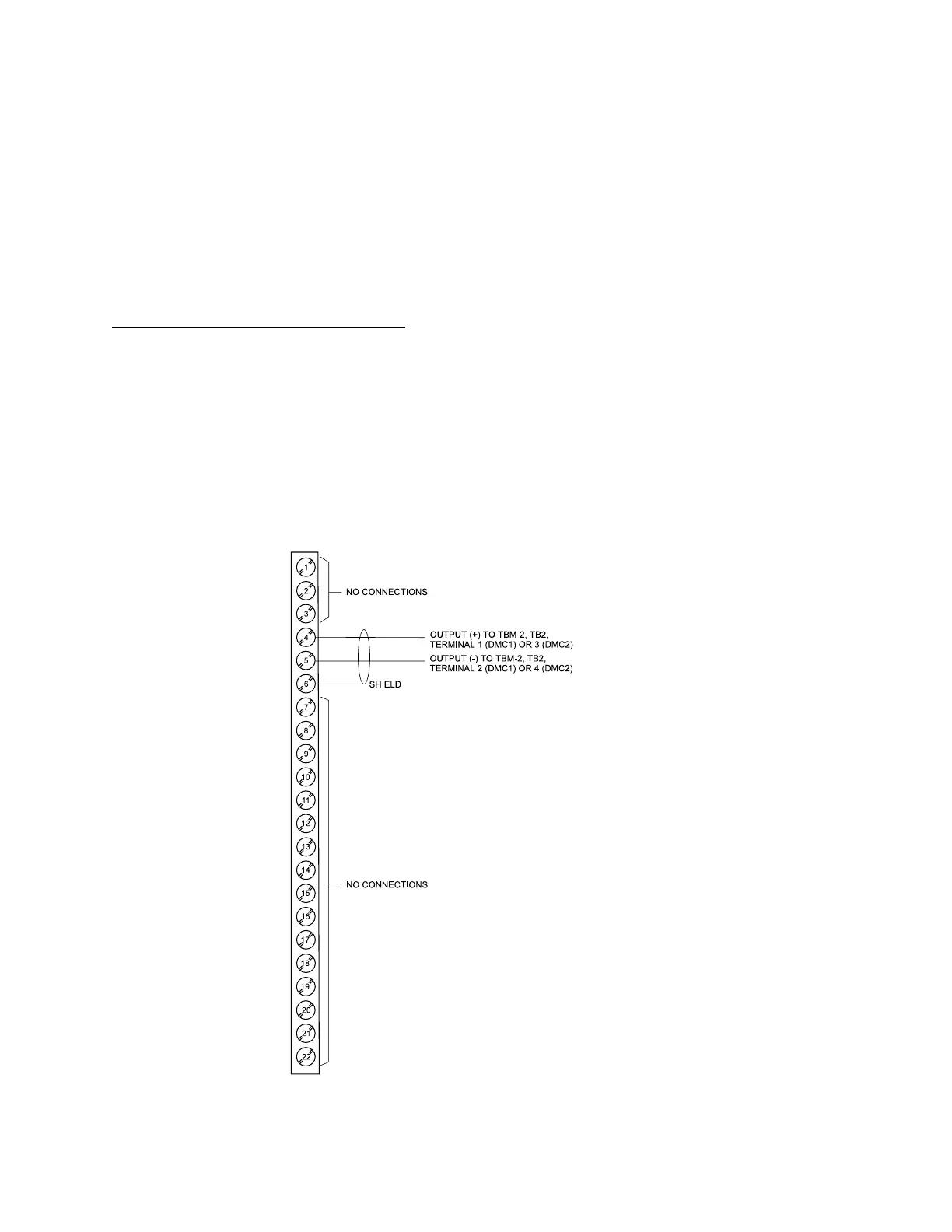

DMC-1 Wiring Diagram Showing Output Connections
NOTES
1. Power limited to
NFPA 70 per NEC 760.
2. Minimum wire size:
18 AWG.
3. Maximum resistance:
3 ohms total.
4. Use shielded twisted
pair cable for output
connections.
J1 audio input level 10mV RMS nominal
(25mV RMS max.)
J2 audio input level 500 mV RMS nominal
(1.5V RMS max.)
Total time for all custom
recorded phrases 30 seconds
