Siemens Cerberus PYROTRONICS MXL

4 - 30
DMC-1 Connections and Ratings
NOTES
1. Power limited to
NFPA 70 per NEC 760.
2. Minimum wire size:
18 AWG.
3. Maximum resistance:
3 ohms total.
4. Use shielded twisted
pair cable for output
connections.
5. The amplifier can be any
UL listed unit rated for
the connected speaker
with an input impedance
of 10K ohms or higher.
The amplifier is not part
of the MXLV System.
6. During benchtop
recording, the
OMM-1/-2 module
used must not be part
of an MXLV System.

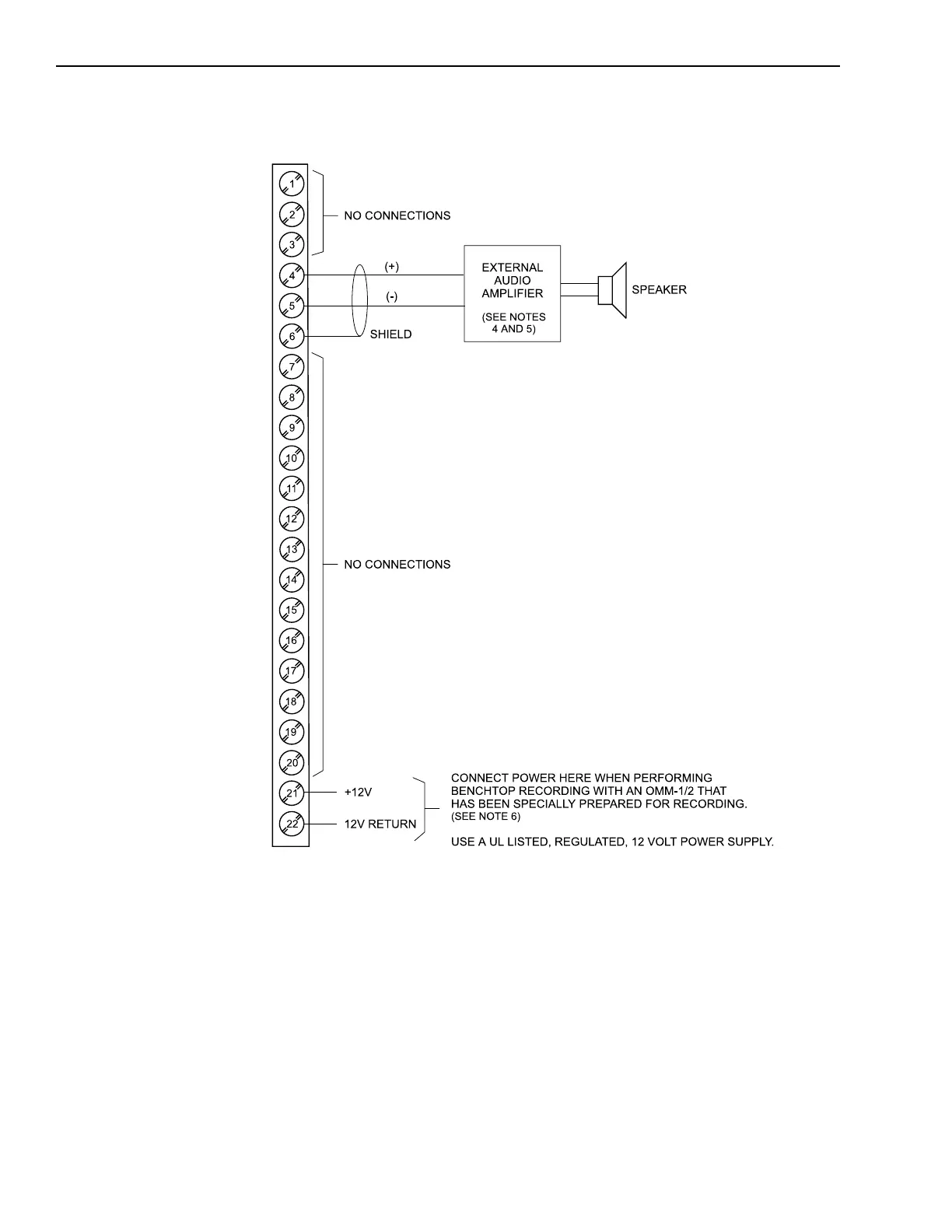

DMC-1 Wiring Diagram Showing Benchtop Manual Recording Connections
