4 - 26
D2300CP Connections and Ratings
5 VDC Current Calculation
The 5 VDC output ratings for the
MMB-1/-2 and PSR-1 are:
MMB-1/-2 500mA at 5 VDC
PSR-1 800mA at 5 VDC
Be sure to calculate the power supply
load (See Appendix D - MXL Power
Supply Load Calculations) and include
the D2300CP in this calculation. If the
total is greater than the ratings for
either the MMB-1/2 or PSR-1, a PS-5A
must be used to power the D2300CP.
Refer to the PS-5A Installation Instruc-
tions, P/N 315-092367, for wiring
diagrams.

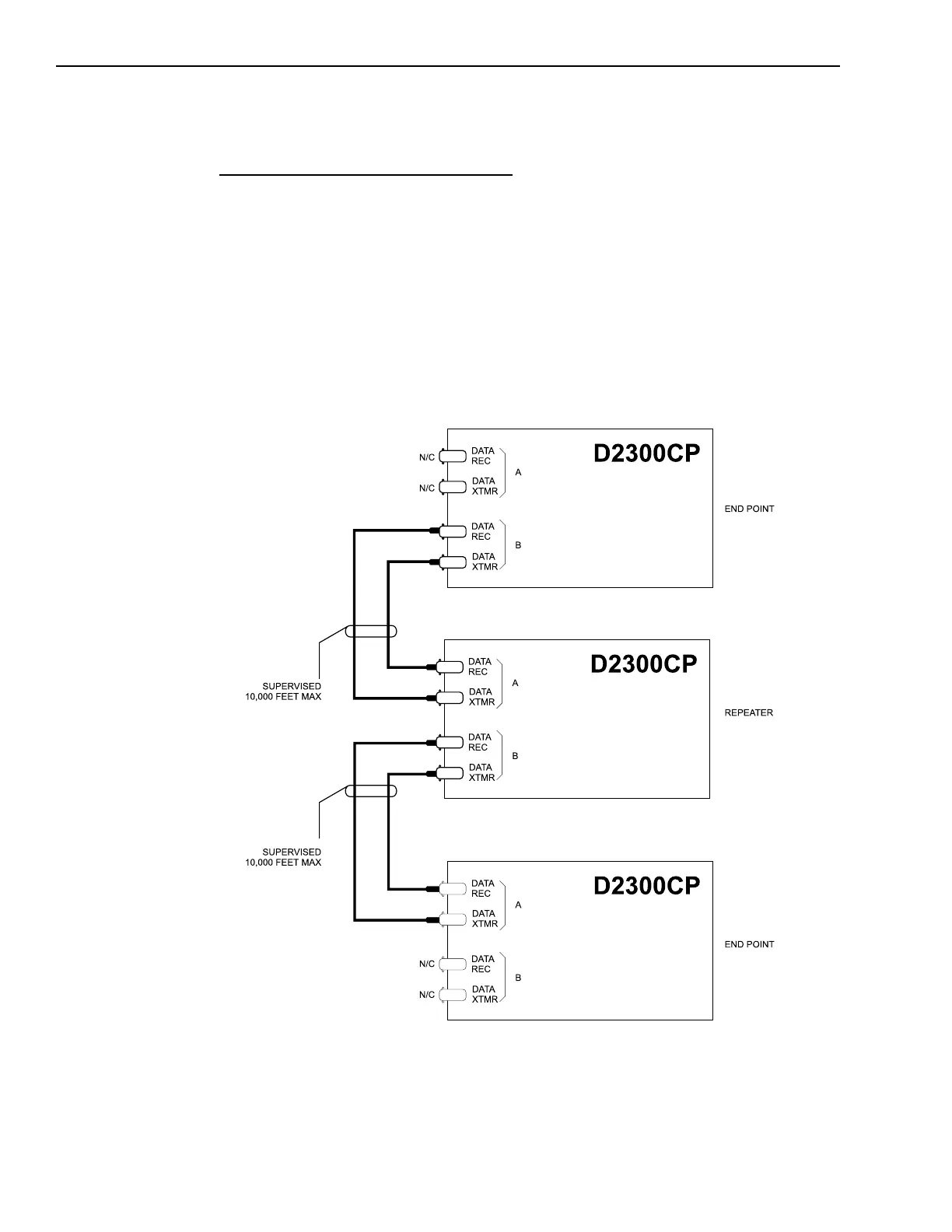

Wiring the D2300CP as Both a Repeater and End Point Unit
