4 - 35

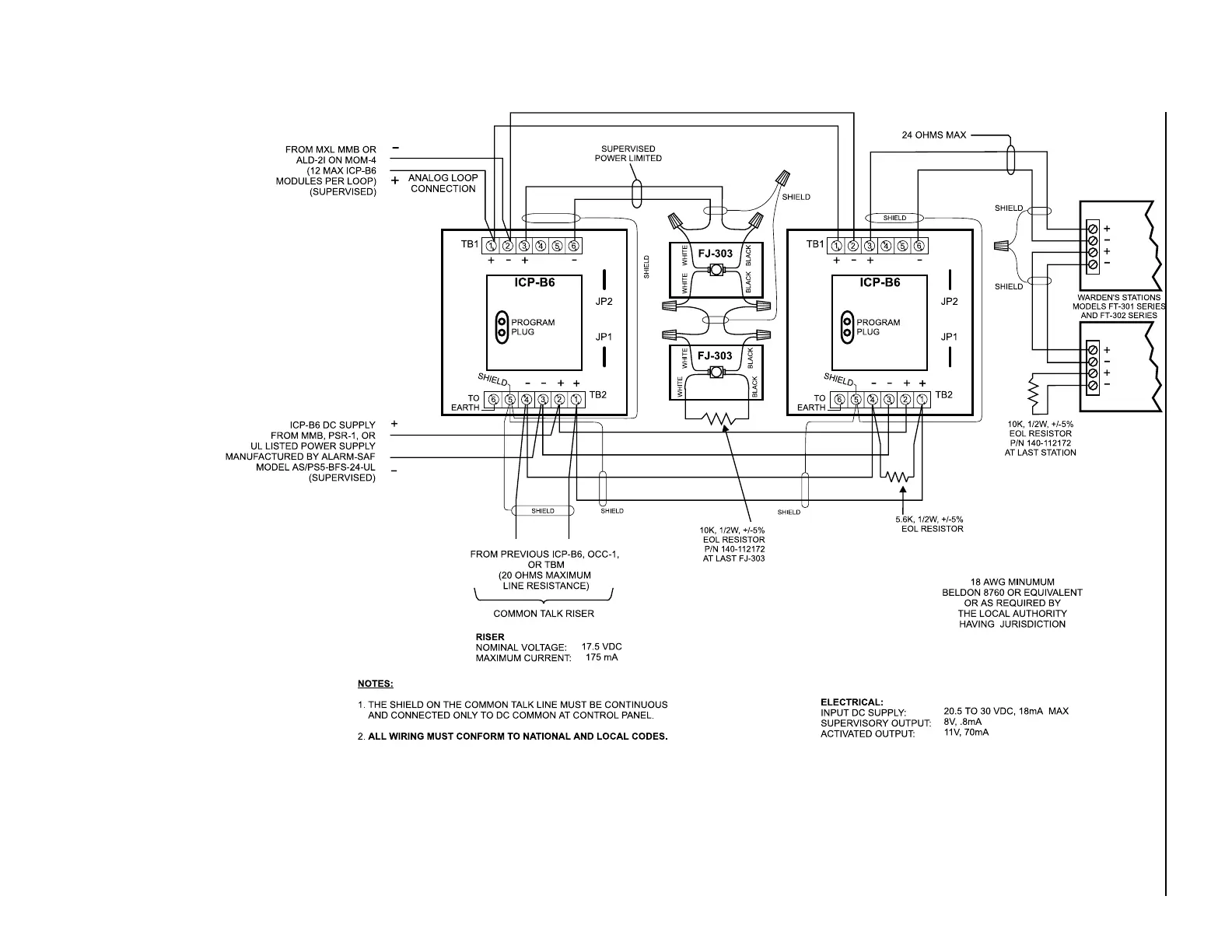

ICP-B6 Connections and Ratings

ICP-B6 Used as a Telephone Zone

NOTES

1. All wiring must

conform to local codes

and to the authority

having jurisdiction over

the installation.

2. The shield on the

common talk riser

must be continuous

and connected only

to DC common at

the TBM.

3. Each FJ303 has a

factory installed 10K

EOL resistor. This

must be removed from

all but the last FJ303

on each loop.
