4 - 58
NIM-1R Connections and Ratings
AnaLASER Interface
The AnaLASER interface connects to
the MOM-4/-2, TB3 or TB4, terminals 1
and 2, depending on where the
NIM-1R is installed. Up to 31
AnaLASER detectors can be connected
to a single NIM-1R.
The ACC-1 requires an RS-485 to
RS-232 converter which mounts in the
back of the ACC-1 enclosure. The
converter model number is AIC-4Z. The
AIC-4Z supports from one to four
AnaLASER detectors. Refer to the
AIC-4Z Installation Instructions,
P/N 315-093792, for the mounting
and configuration of the converter
and the ACC-1s.
Complete wiring of the converter
before installing the ACC-1 in the
enclosure.
Place the end-of-line resistors in the
locations specified in Figure 4 below.
Install the cable, P/N 500-693801
between the converter and the
ACC-1.
Refer to the AnaLASER Air Sampling
Smoke Detection Manual, P/N 315-
092893, for connection to the
AnaLASER detector and power
supply, as well as mechanical mount-
ing of the ACC-1.

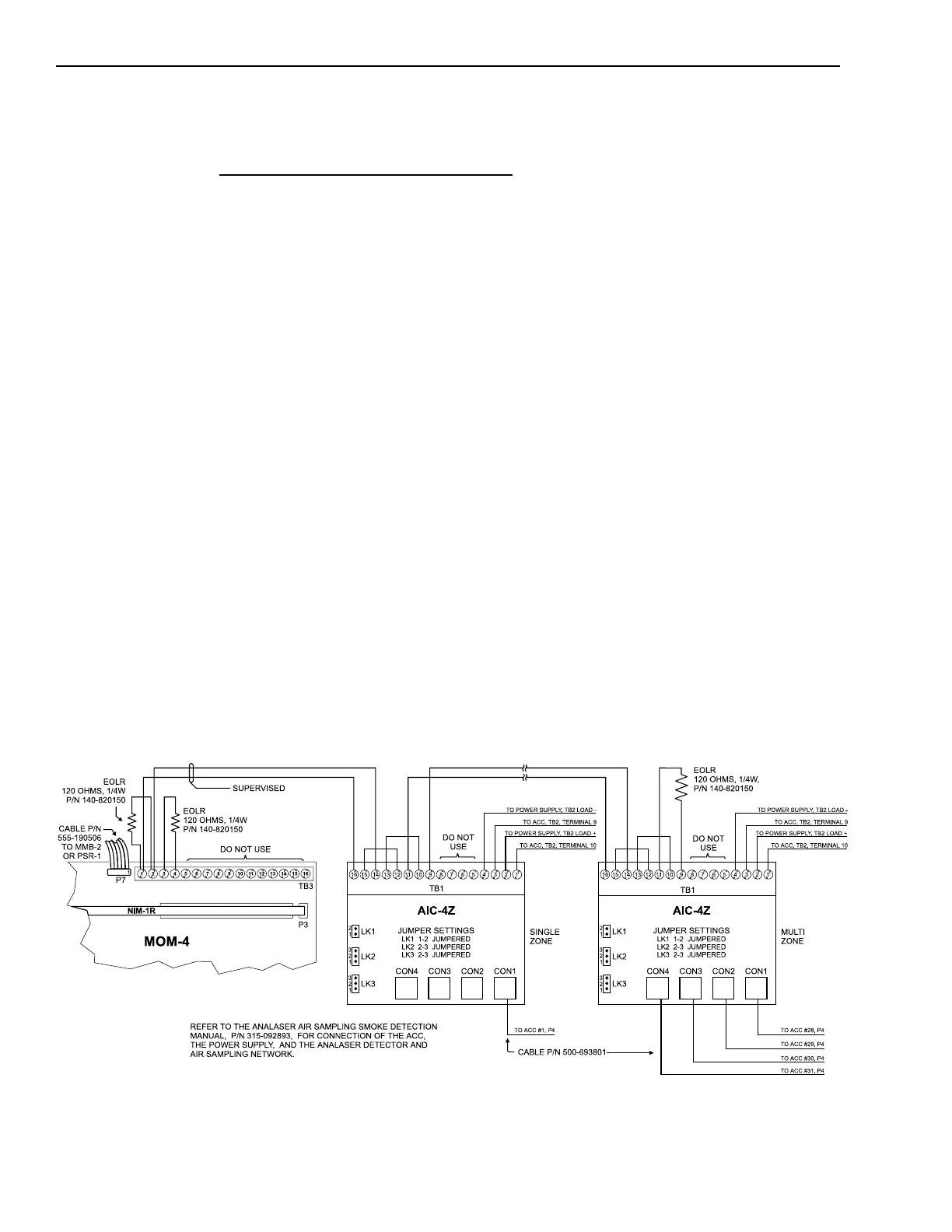

NIM-1R and AnaLASER Wiring (Figure 4)
NOTES
1. Power limited to
NFPA 70 per NEC 760.
2. Minimum wire size:
18 AWG.
3. Maximum resistance:
80 ohms per pair.
4. Use twisted pair or
shielded twisted pair.
5. Terminate the shield
ONLY at NIM-1R
enclosure.
6. Maximum voltage:
8V P-P.
7. Maximum current:
150mA.
