4 - 62
OMM-1 Connections and Ratings
cable is polarized. Observe polarity and
DO NOT USE EXCESSIVE FORCE. The
black tracer on the cable indicates the
position of pin 1.

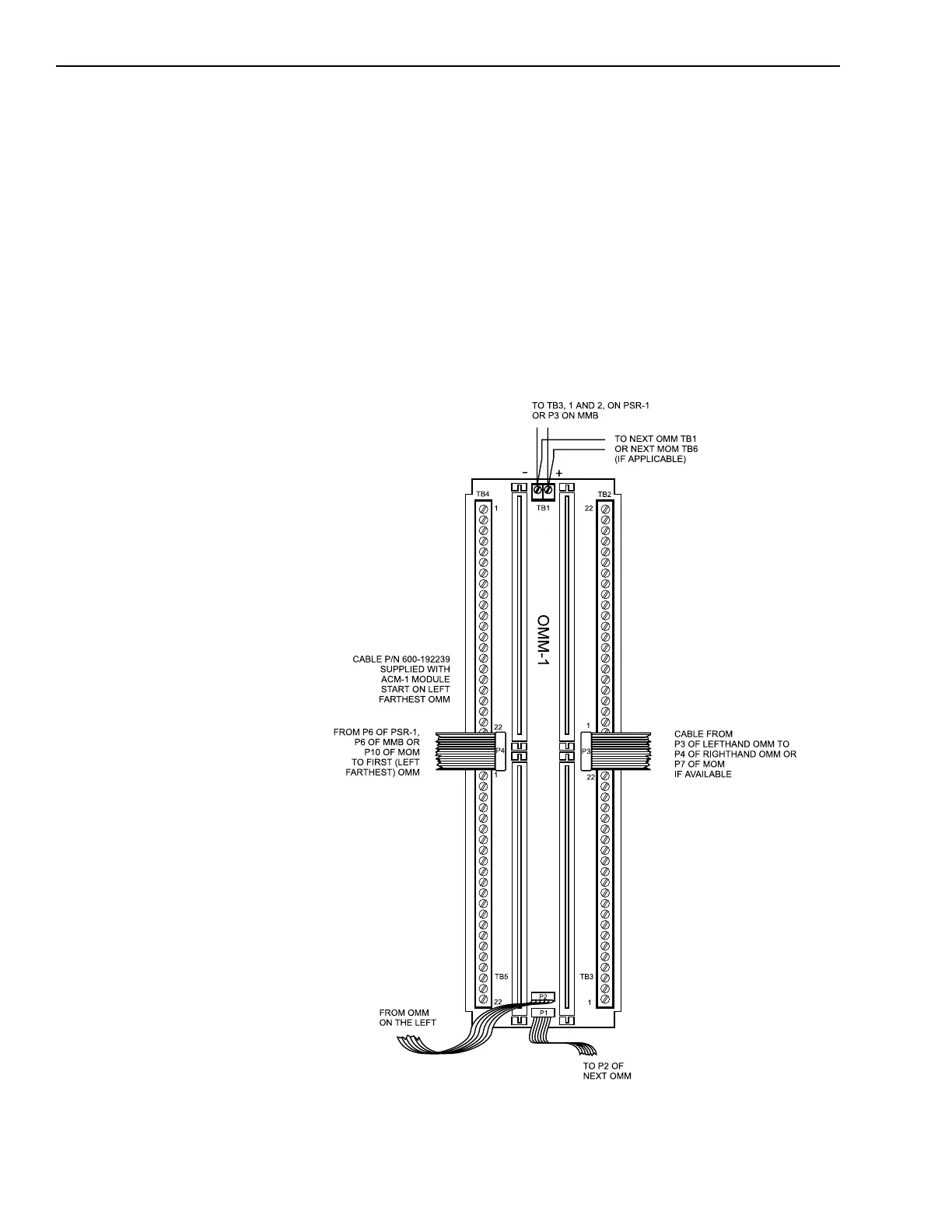

If there is more than one OMM-1, use
the short 8-conductor cable (P/N 555-
190967) to connect P3 of the left-hand
OMM-1 to P4 of the OMM-1 that is to
its right.
This cable is polarized. Observe polar-
ity and DO NOT USE EXCESSIVE
FORCE. The black tracer on the cable
indicates the location of pin 1. If there
is a third OMM, repeat this step.
OMM-1 Wiring
