4 - 72

PLC-4 Connections and Ratings

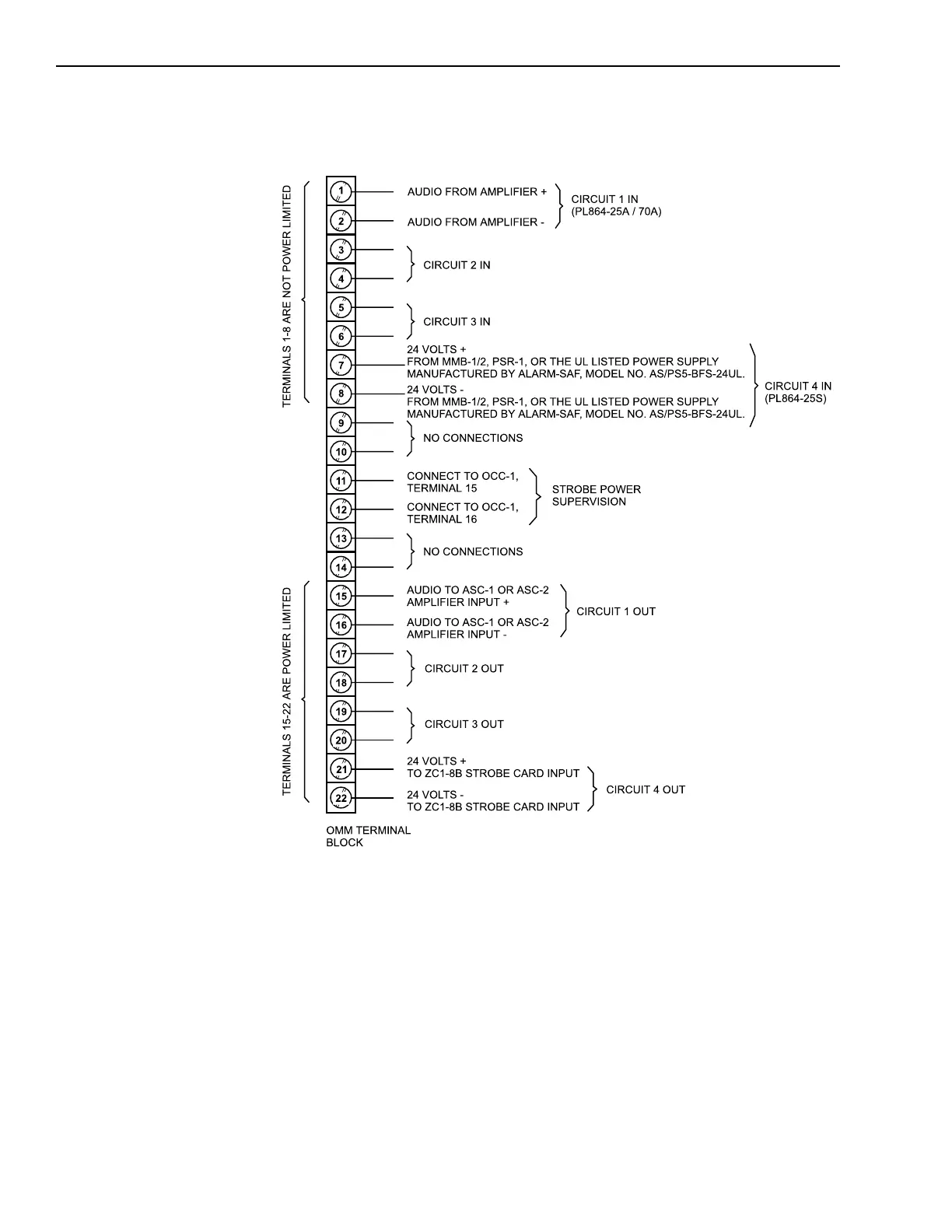

Typical PLC-4 Wiring

NOTES

1. Minimum Wire Size:

18 AWG twisted pair,

unshielded.

2. Maximum Wire Size:

14 AWG twisted pair,

unshielded.

3. Input/output rating for

each circuit:

Audio:

100W at 25V RMS.

100W at 70.7V RMS.

Strobe:

24 VDC at 4A (96W).

4. Wiring shown for

Circuit 1 is typical of

circuits used for audio.

Use the PL864-25A for

25V RMS circuits. Use

the PL864-70A for

70.7V RMS circuits.

5. Wiring shown for

Circuit 4 is typical of

circuits used for

strobes. Use the

PL864-25S plug-on

card only.
